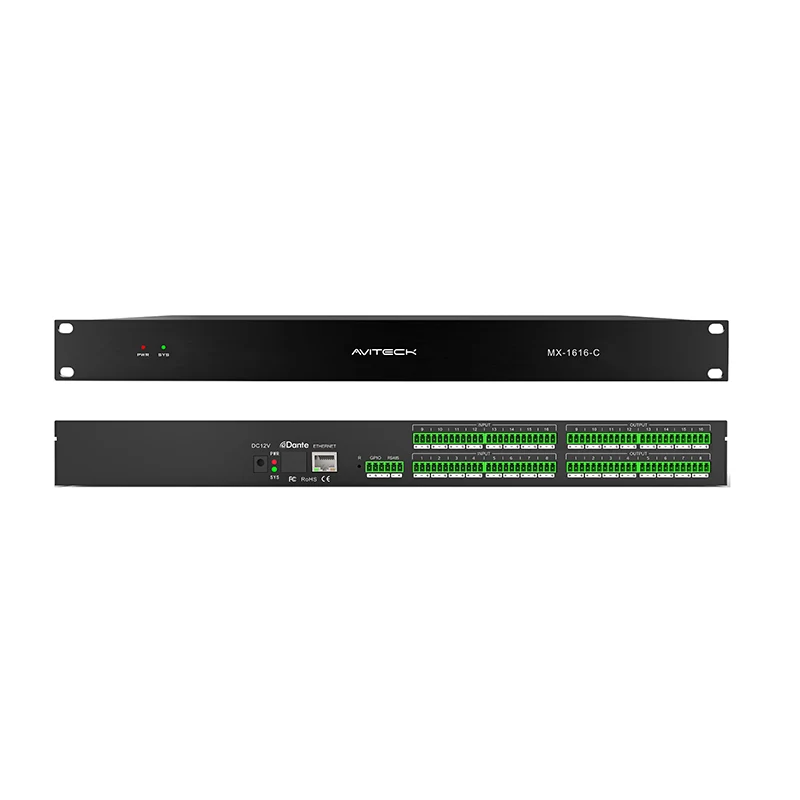

The 16 Channel Economy Digital Audio Matrix is perfect for various scenes like meetings, campuses, performances, and concerts. Its B/S architecture allows web browser access for intuitive control and scenario selection, with direct downloads for PC clients and components. It includes a lock screen for security, DSP processing with an automatic mixer and optional feedback elimination. Each channel has input features like amplifiers, generators, expanders, compressors, and 5-stage equalization. Outputs include a 31-section equalizer, delay, frequency divider, and limiter. With full-function matrix remix, scenario presets, memory protection, a sturdy aluminum chassis, and camera tracking, it's a versatile and reliable audio tool.
|
DSP Chip |
Ti 456MHz FLOPS DSP |
|
Analog Channel |
16 Input+16 Output |
|
Processing |
Auto Mixing、AFC,AEC,ANC |
|
GPIO |
2 Input |
|
RS485 |
1 |
|
RJ45 |
1 |
|
Simulated maximum gain |
42dB |
|
Digitalizing bit |
24bit |
|
Sampling frequency |
48k |
|
Frequency response （20~20KHz） |
±0.2dB |
|
Digital-to-analog dynamic range (A-weighted) |
120dB |
|
Analog-to-digital dynamic range (A-weighted) |
114dB |
|
Input to output dynamic range |
108dB |
|
Total harmonic distortion + noise(THD+N) |
＜0.004% @20-20KHz ,18dBu |
|
Ground Noise (A- weighted) |
-90dBu |
|
Delay storage |
2s |
|
Analog input to output system delay |
3ms |
|
Input impedance (balanced) |
20KΩ |
|
Output impedance (balanced type) |
100Ω |
|
Maximum input level |
+18dBu，Balanced |
|
Maximum output level |
+18dBu，Balanced |
|
EIN（20-20kHz，A Weighted）. |
≤-131dBU |
|
Phantom power supply (per input) |
48V |
|
Input common mode suppression，60Hz |
70dB |
|
Channel isolation，1kHz |
104dB |
|
Size |
482*258*45(mm)； |
|
Weight |
2.5Kg |
|
Power consumption |
<24W |
|
Operating temperature |
-10-50℃ |
|
Working power supply |
DC12V/2A |
1. Ideal for meeting rooms, campuses, art performances, concerts, and other venues.
2. Offers PC software for enhanced functionality.
3. Features a built-in lock screen to prevent unauthorized operations.
4. Utilizes DSP audio processing with an automatic mixer and AFC (feedback elimination) function.
5. Each channel includes input features such as a front stage amplifier, signal generator, expander, compressor, and 5-stage parametric equalization.
6. Outputs per channel feature a 31-band graphic equalizer, delay device, frequency divider, and limiter.
7. Provides full-function matrix remix capabilities.
8. Incorporates an automatic camera tracking function for enhanced performance.
9. Supports scenario presets for easy configuration.
10. Offers automatic memory protection during power outages.
11. Housed in a robust 1U aluminum chassis for durability.
