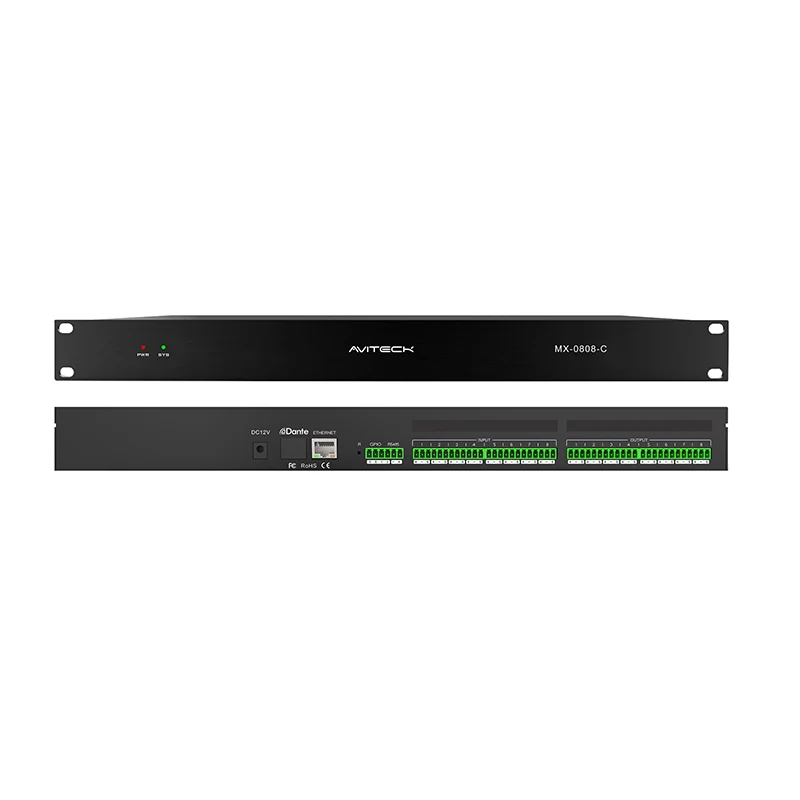

8 Channel Economy Digital Audio Matrix

The MX-0808-C, an 8 Channel Economy Digital Audio Matrix, boasts a versatile audio processing and control system designed with flexibility in mind. Leveraging cutting-edge DSP technology, it incorporates innovative features such as automatic mixing and automatic feedback cancellation (AFC), tailored to address a multitude of practical challenges encountered in diverse application scenarios.

8 Channel Economy Digital Audio Matrix Features:

1.Suitable for meeting room, campus, art performance, concert and other scene areas.

2.Provide PC software

3.System built-in lock screen function, can effectively avoid the wrong operation.

4.DSP audio processing, built-in automatic mixer, feedback elimination(AFC) function

5.Input per channel: Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization

6.Output per channel：31 Section diagram equalizer, delay device, frequency divider, limiter

7.Full function matrix remix

8.Built-in automatic camera tracking function

9.Support for scenario presets；

10.Automatic memory protection when power off

11. 1U Whole aluminum chassis

8 Channel Economy Digital Audio Matrix Parameters:

Software Experience of 8 Channel Economy Digital Audio Matrix:

Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.

Audio Processing Core Algorithm:

Efficient and comprehensive algorithm is the basis of perfect sound quality, but also the crystallization of engineers' experience and wisdom. The built-in core algorithm is the soul of the processor

AUTOMIXER

8 Channel Economy Digital Audio Matrix improve the transparency and clarity of speech;

The feedback, reverberation and comb filtering effects are significantly reduced.

Automatic adjustment, simplified Settings, plug and play;

It can solve common problems such as insufficient gain before feedback and unclear speech.

Each input channel has a dual-band equalizer.

The adaptive noise threshold allows each input channel to distinguish between continuous background noise (such as air conditioning) and changing sound (such as voice), and constantly adjusts the channel activation threshold, so that the channel can only be activated when the voice volume is higher than the background noise;

Lock the last mic until the next mic is activated, ensuring that background ambient sounds are present (without the last mic lock, a long pause in the conversation shuts down all the microphones, as if the audio signal is missing);

Precisely control the priority of each microphone and lock down key speakers.

Automatic feedback elimination (AFC)

Multi-point filtering and multi-subband frequency shifting keep the harmonic property of the original pitch period without causing sound distortion.Through acoustic modeling of room feedback path, the acoustic feedback can be eliminated adaptively.

It can quickly track the feedback path changes and greatly enhance the ability to suppress the noise. The microphone transmission gain can be increased by 6-18db, greatly enhancing the microphone gain, suitable for various large, medium and small meeting rooms.
