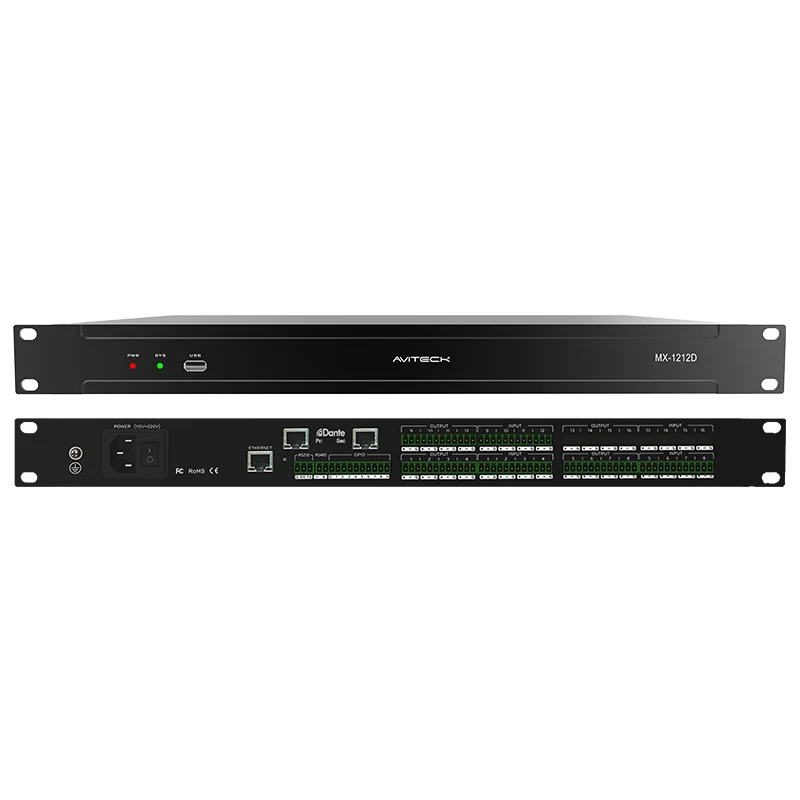

The 12 Channel Professional Dante DSP is a high-performance digital audio processor designed for professional applications. It features 12 analog input and output channels, as well as 8 Dante input and output channels, providing flexibility and scalability for various audio systems. The processor is powered by an ADI SHARC 21489@450 MHz SIMDx2, offering robust DSP capabilities with 400 MIPS and 1.6 GFLOPS. With a sampling rate of 48 kHz and THD+N of less than -94dB, it ensures high-quality audio processing. The unit also includes a configurable processing module, USB soundcard, and advanced features such as AEC, AFC, ANS, and more, making it ideal for use in studios, live performances, and other demanding environments.
|
Number of input channel |
16 |
|
Number of output channel |
16 |
|
Number of 232 |
1 |
|
Number of 485 |
1 |
|
Number of GPIO |
8，Freely configurable input and output |
|
Number of RJ45 |
1 |
|
Number of USB |
1，Support recording and playback |
|
Maximum analog gain |
51dB |
|
Phantom |
48V |
|
Sampling rate |
48KHz/24bit |
|
A/D Dynamic range |
120dB |
|
Input CMRR |
80 dB @ +24dBu @60Hz |
|
Input impedance |
20kΩ balance，10kΩ unbalance |
|
Maximum input gain |
18dBu |
|
D/A Dynamic range |
114dB |
|
Channel isolation |
104dB |
|
Frequency Response |
20～20kHz (±0.25dB) |
|
(THD+N) |
≤0.003% @1kHz，+4dBu |
|
Output Impedance |
100 Ω balance，50 unbalance |
|
Maximum output gain |
18dBu |
|
Power supply |
AC 110V/220V 50Hz/60Hz |
|
Operating Temperature |
-10 to 50 |
|
Size |
482x258x45(mm) |
1.When the device is installed, make sure that the ground wire in the power line is well grounded, the chassis grounding site is well grounded, do not use two plug.Ensure that the input power of the equipment is 100v- 240v, 50/60hz alternating current.
2.Maintain the good ventilation of the working environment, so that the heat emitted by the device during the work can be discharged in time, so as not to damage the equipment due to the high temperature.
3 .In wet condensation environment or long time not used, should turn off the main power supply of the equipment
4.Be sure to unplug the AC power cord of the device from the socket before the following operations:
A. Remove or reinstall any parts of the device.
B. Disconnect or reconnect any electrical plug or connection to the device.
5.There are AC high-voltage components in the equipment. Non-professionals are not allowed to disassemble the equipment without permission to avoid the risk of electric shock. Do not repair without permission, so as not to increase the damage of the equipment.
6.Do not spill any corrosive chemicals or liquids on or near the device
7.The disconnecting device of 12 Channel Professional Dante DSP is an appliance coupler. The appliance coupler is located at the back shell of the product. When not using this product, please unplug the power cord from the product through the appliance coupler. No other objects should be placed near the appliance coupler, So as not to hinder the disconnection of the processor and the power supply.
