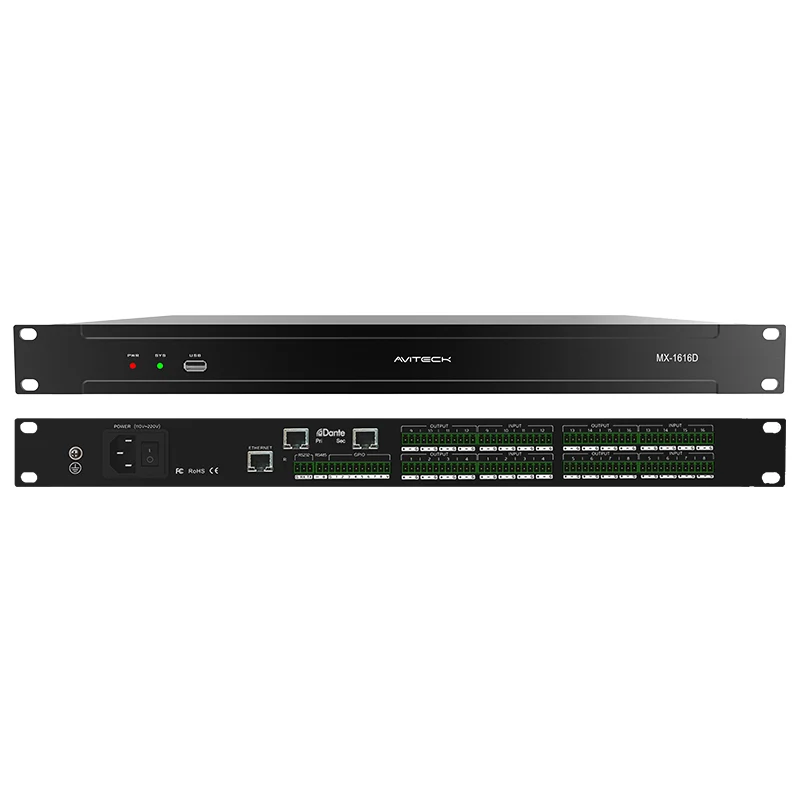

16 Channel Professional Dante DSP is a professional digital audio processor that supports 16-channel Dante signal input and output. It has a built-in DSP processing chip and provides full-function matrix mixing, automatic mixing, feedback elimination and other functions. It supports multiple control methods and has flexible configuration. It is suitable for various professional audio application scenarios.
|
Number of input channel |
16 |
|
Number of output channel |
16 |
|
Number of 232 |
1 |
|
Number of 485 |
1 |
|
Number of GPIO |
8，Freely configurable input and output |
|
Number of RJ45 |
1 |
|
Number of USB |
1，Support recording and playback |
|
Maximum analog gain |
51dB |
|
Phantom |
48V |
|
Sampling rate |
48KHz/24bit |
|
A/D Dynamic range |
120dB |
|
Input CMRR |
80 dB @ +24dBu @60Hz |
|
Input impedance |
20kΩ balance，10kΩ unbalance |
|
Maximum input gain |
18dBu |
|
D/A Dynamic range |
114dB |
|
Channel isolation |
104dB |
|
Frequency Response |
20～20kHz (±0.25dB) |
|
(THD+N) |
≤0.003% @1kHz，+4dBu |
|
Output Impedance |
100 Ω balance，50 unbalance |
|
Maximum output gain |
18dBu |
|
Power supply |
AC 110V/220V 50Hz/60Hz |
|
Operating Temperature |
-10 to 50 |
|
Size |
482x258x45(mm) |
1.USB-enabled background music playback and recording capability
2.Compatibility with mobile phone, tablet, and distributed cloud control systems
3.DSP-powered audio processing with integrated automatic mixer, AFC (feedback suppression), AEC (echo cancellation), and ANC (noise reduction) features
4.Per-channel input options: pre-amplifier, signal generator, expander, compressor, and 5-band parametric equalizer
5.Per-channel output features: 31-band graphic equalizer, delay unit, frequency splitter, and limiter
6.Comprehensive matrix mixing functionality
7.Integrated automatic camera tracking system
8.Pre-configured scenario settings support
9.Automatic memory preservation during power outages
10.Encased in a 1U full-aluminum housing
11.Dante module integrated within the unit
