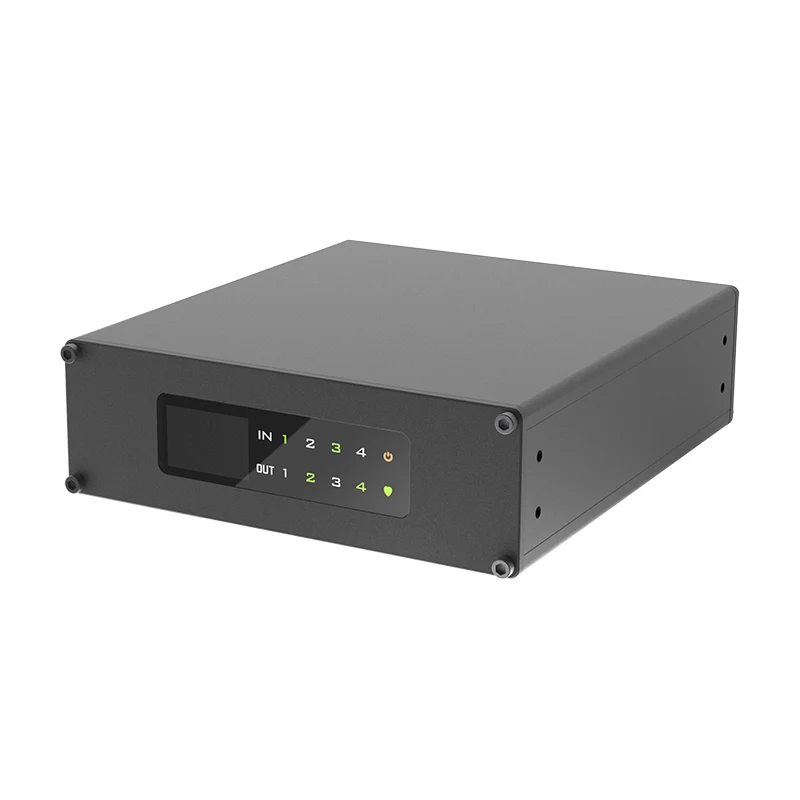

DB0404-C 4Channel Dante DSP digital audio processor is a powerful network interface device designed for audio transmission and routing. Based on the Dante network audio protocol, it can achieve high-quality, low-latency audio signal transmission. Also It built in DSP processing,with AEC,ANC,AFS function and is suitable for various audio application scenarios.
|
Model No. |
DB0404-C |
|
Products name |
4CH Dante DSP |
|
Dante Interface |
2 |
|
Analog channel |
4 balanced inputs + 4 balanced outputs |
|
Dante channel |
4 inputs + 4outputs |
|
Simulated maximum gain |
-6～36dB, 6dB level, 8 levels in total |
|
24bit |
|
|
Sampling Rate |
48k |
|
±0.2dB |
|
|
Phantom power (per input) |
48V |
|
Maximum level (input/output) |
+10dBu /+14dBu，balance |
|
Total harmonic distortion + noise |
≦0.005% @4dBu |
|
Digital to Analog Dynamic Range |
114dBu |
|
Analog to Digital Dynamic Range |
114dBu |
|
Noise floor (A- weight) |
-88dBu |
|
Input impedance (balance-type) |
20KΩ |
|
Output impedance (balance-type) |
100Ω |
|
System delay |
<3ms |
|
Channel isolation @1kHz |
100dB |
|
AC110V-220V,50Hz/60Hz；PoE48V；DV12V |
|
|
Working Temperature |
0-40℃ |
|
Size |
142X157*46mm |
1.Support Dante network audio transmission:
Supports Dante international universal protocol, strong compatibility, and can be easily connected to Dante audio transmission network.
Achieve high-quality, low-latency transmission of audio signals, ensuring the integrity and real-time performance of audio signals.

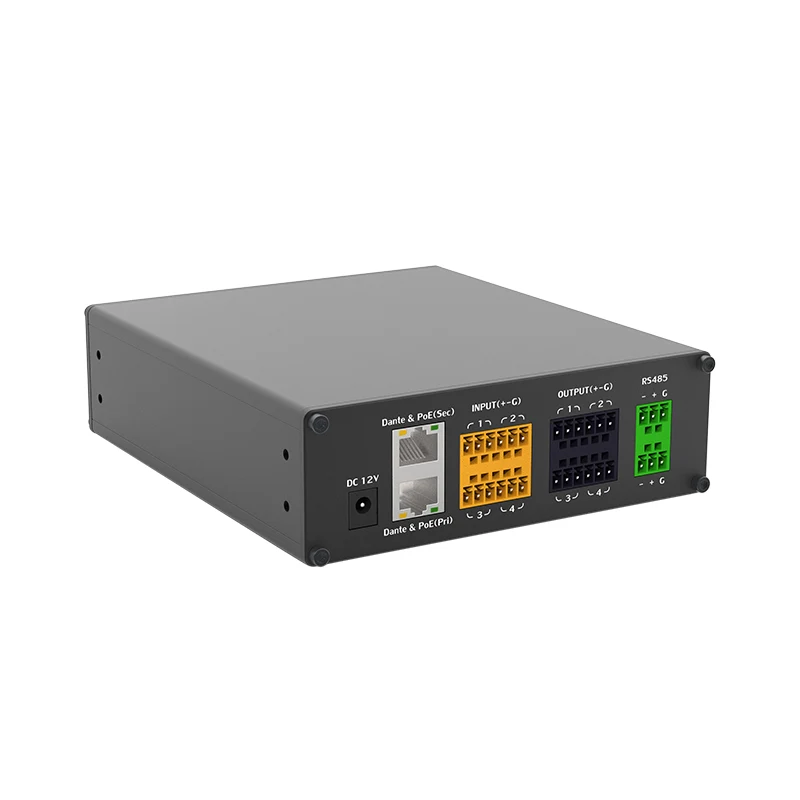

2.Analog channel support:
Provides 4 balanced input and 4 balanced output analog channels to meet the connection requirements of various audio devices.
Balanced input and output design effectively suppresses noise and interference, and improves the transmission quality of audio signals.
3.Dual power supply:
Supports PoE (Power over Ethernet) and DC 12V dual power supply modes to improve the reliability and stability of the equipment.
When one power supply fails, the other power supply can automatically take over to ensure the continuous operation of the equipment.

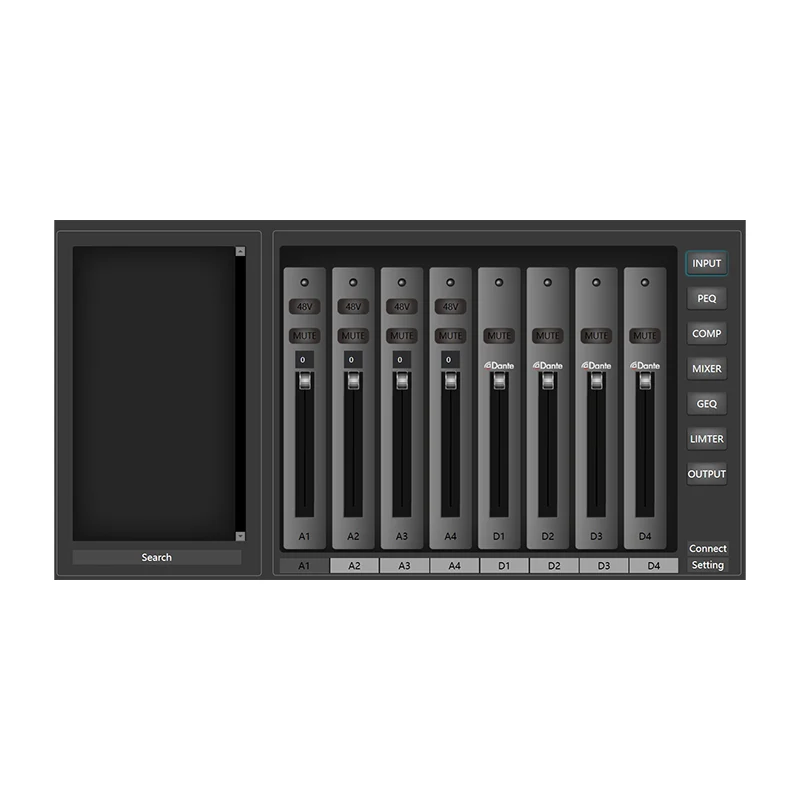

4.Control software support:
Provide PC version control software to facilitate users to remotely monitor and operate the equipment.
Through the control software, users can monitor the operating status of the equipment in real time and adjust parameters such as phantom power, mute and gain.
5.Built in DSP Processing, with AEC,ANC,AFS function
1. Live performance:
As the core device of the audio system, it realizes the transmission and routing of audio signals.
Provides high-quality audio transmission quality to ensure the sound effects of live performances.
Recording studio:
Supports multi-track recording and audio editing to improve recording quality and efficiency.
By balancing input and output channels, it connects various recording devices to achieve stable transmission of audio signals.
2. Broadcasting and streaming media:
Realizes real-time transmission and broadcasting of audio signals.
Supports multi-channel audio transmission to meet the needs of broadcasting and streaming platforms.
3. Conference and distance education:
Provides a clear audio communication experience to ensure the smooth progress of conferences and distance education.
Through the Dante network audio protocol, it realizes long-distance transmission and routing of audio signals.
