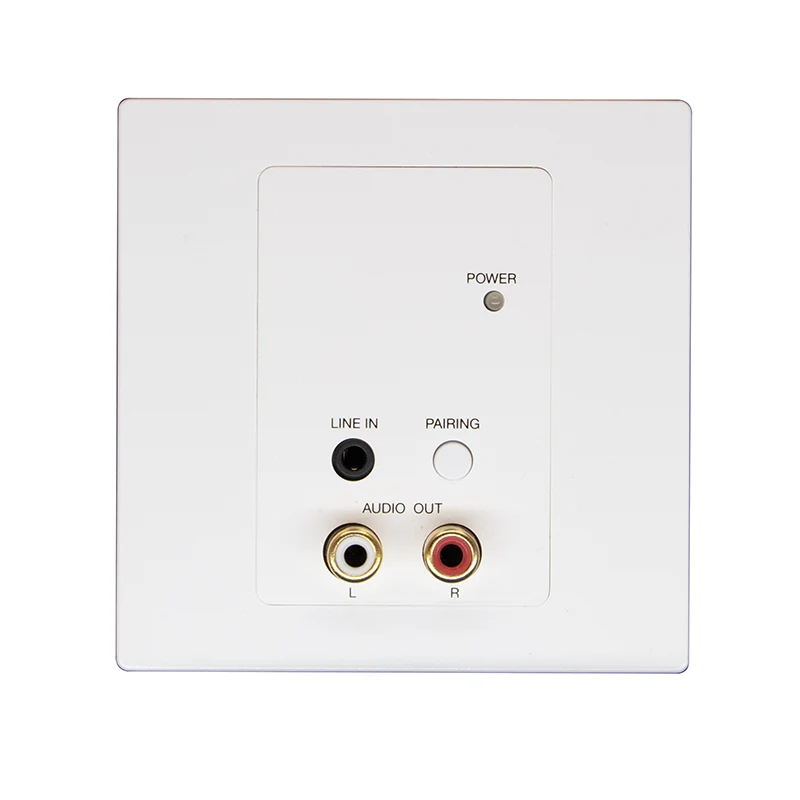

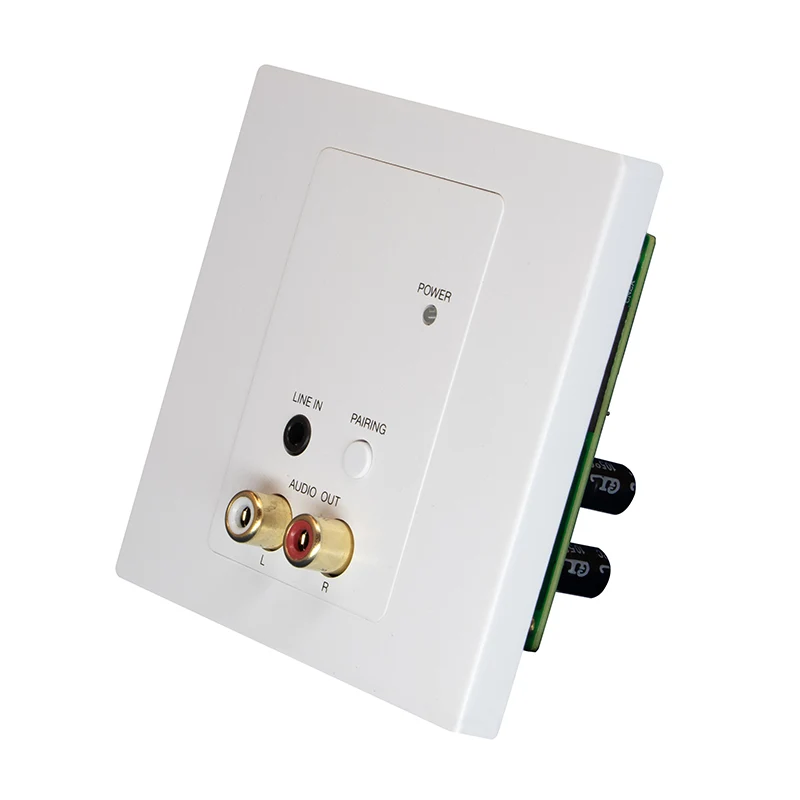

The BT22-R 2CH RCA Bluetooth Dante Audio Panel makes it easy to connect Bluetooth devices or wired audio gear to a Dante audio network—perfect for modern sound systems.
1.Pair your phone, tablet, or laptop via Bluetooth, or plug in an audio source (e.g., mixer, instrument) via the 3.5mm input.
2.The panel converts the signal to Dante digital audio, sending it over an Ethernet cable (CATx/RJ-45) to amplifiers, speakers, or recording systems.
3.Power it with PoE (network cable) or a 24V adapter—no extra wiring needed!
Why Choose BT22-R 2CH RCA Bluetooth Dante Audio Panel?
No ground loops or noise – Clean audio for professional setups.
Works with any Dante-compatible gear – Scalable for small rooms or large venues.
Plug-and-play installation – Ideal for conference rooms, houses of worship, and background music systems.
The 2CH RCA Bluetooth Dante Audio Panel is suitbale For: Wireless presentations & music streaming, Integrating old and new audio equipment, Dante-based sound installations
Support Dante Interface 2 input and 2 output channels.
It Converts 2 channels of Bluetooth or 3.5mm TRS audio signal to Dante network.
It support Converts 2 channels Dante audio to unbalanced RCA audio outputs
Easy Bluetooth connection by a single button.
With Status LEDs indication on the front panel.
Good compatibility with most smartphones, tablets or other Bluetooth devices.
Power supply via PoE network switch or DC24V input.
Simply audio configuration and routing by using Dante Controller.
|
Model |
|
|
Input |
BT Stereo L(CH1)/R(CH2) 3.5mm TRS L(CH1)/R(CH2) |
|
Output |
RCA L(CH1)/R(CH2) |
|
Output Impedance |
<600 Ohm (RCA) |
|
Input Impedance |
>15K Ohm (3.5mm TRS) |
|
S/N |
>96dB A-Weight |
|
THD+N |
<0.05%@1KHz |
|
Frequency Response |
20Hz-18KHz |
|
Bluetooth |
5.1/ SBC/AAC |
|
BT Sampling Rate |
24Bit / 48kHz |
|
Dante (AES67) Interface |
2 IN / 2 OUT |
|
Network Connection |
RJ-45 x 1 |
|
Power Supply |
802.3af PoE or DC24V(750mA) Input |
|
Dimension |
114x70x50 mm (HxWxD) -BT22-R-US 87x87x50 mm (HxWxD) -BT22-R -EU |
2CH RCA Bluetooth Dante Audio Panel can be use in Conference Room AV System.
For example: In a modern corporate conference room, the 2CH RCA Bluetooth Dante Audio Panel serves as a versatile audio hub. Participants can stream presentations or background music wirelessly via Bluetooth from their laptops or smartphones. Meanwhile, the Dante interface allows seamless integration with the room’s professional audio system (e.g., ceiling microphones or DSP processors) over a networked AV setup. The RCA outputs connect to amplifiers or speakers, ensuring high-quality audio for hybrid meetings (in-person + remote). Users can switch between Bluetooth for casual playback and Dante for low-latency, multi-channel conferencing with a single device.It can use together with our other Dante device,Such as Dante DSP,Dante microphone,Dante speaker.Also we can use the Dante controller for route the audio system.
2CH RCA Bluetooth Dante Audio Panel Operation:
Firsty,Powering up :After BT22-R is powered and switched on, the Power LED on the panel will light up and flash alternately in blue and red for a short period of time, and if the power is successfully switched on, only red LED will light up steady.
Secondly:Bluetooth Pairing
Press the button about 3 seconds to into pairing mode, the blue LED on the panel will start to flash alternately, indicating this device is now at the pairing mode and visible on other Bluetooth devices and accepting pairing. You can then turn on other Bluetooth devices to search for this device and pair them, when only the blue LED on the panel is light up steady, the pairing connection is successful.
Note: Bluetooth audio has the priority than the signal from 3.5 mm TRS input. When Bluetooth connected successfully, the audio signal from 3.5 mm TRS input will be replaced automatically.
