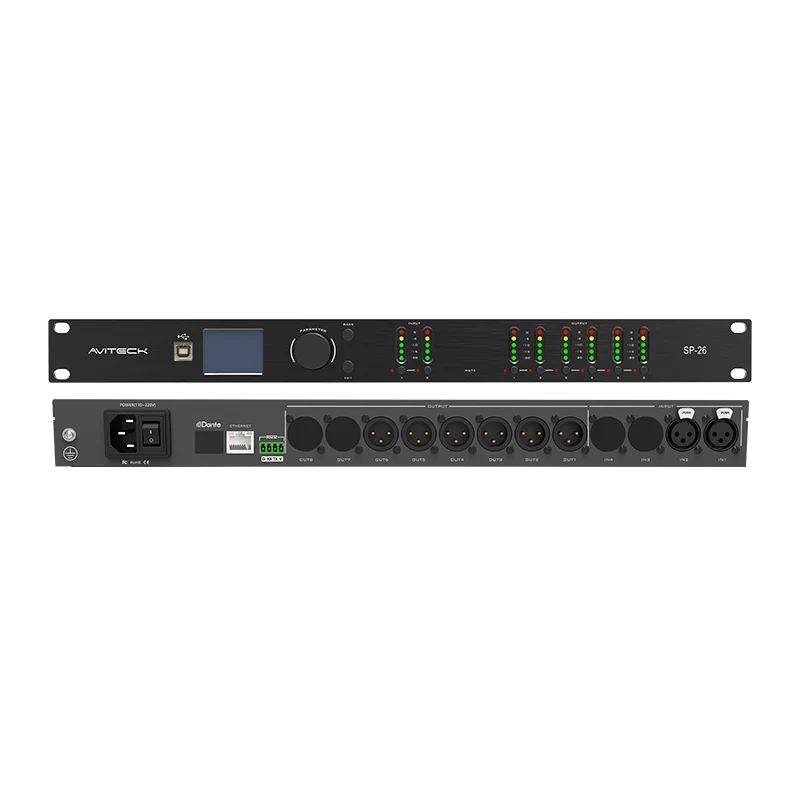

2in 6out Speaker Management Processor is a powerful audio device that supports 2-way input and 6-way output, with built-in high-performance DSP chip to provide precise audio processing. It has rich functions such as graphic equalizer, parametric equalizer, gain control, etc., suitable for signal distribution and management in multi-speaker scenarios.
|
Model No. |
SP-26 |
SP-48 |
SP-26D |
SP-48D |
|
Analog Channel |
2 balanced inputs + 6 balanced outputs |
4 balanced inputs + 8balanced outputs |
2 balanced inputs + 6 balanced outputs |
4 balanced inputs + 8balanced outputs |
|
Dante Channel |
/ |
/ |
2 channels of dante input |
4 channels of dante input |
|
Frequency response |
20 - 20KHz，±0.2 dBu |
|||
|
Maximum input level |
+20 dBu，Balanced input |
|||
|
Maximum output level |
+20 dBu，Balanced output |
|||
|
THD+N |
<0.002% @ 4 dBu |
|||
|
Channel isolation |
105 dB @ 1 KHz |
|||
|
Sampling Rate |
48KHz |
|||
|
Number of quantization bits |
24bit |
|||
|
Noise floor |
-90dBu |
|||
|
Input resistance |
20 KΩ |
|||
|
Output impedance |
100 Ω |
|||
|
Size |
440x208x44mm |
|||
|
Operating temperature |
-10-50℃ |
|||
|
Net weight |
1.9kg |
|||
1.SP series manages multi-speaker scenes with multiple analog & Dante signal I/O.
2.Features Dante chip, high-performance DSP, 24bit/48kHz processing, & A/D/A converters.
3.TFT LCD with GUI for quick adjustments.
4.Custom 512-tap FIR filter, imports third-party parameters.
5.Inputs: mute, gain, delay, EQ, expander, mixer.
6.Outputs: delay, freq divider, parametric EQ, gain, limiter.
7.USB/RJ45-connected PC software for control.
8.Software manages multiple devices, routes signals.
9.Supports channel copy & binding.
10.Saves, recalls, imports/exports scenes.
11.Panel with rotary encoder switch for ease.
12.Dante controller via RJ45 for remote signal management.
13.RS232 & Ethernet interfaces with open protocols.
1. What is 2in 6out Speaker Management Processor?
2in 6out Speaker Management Processor is a professional audio processor that supports 2 inputs and 6 outputs for signal distribution and management in multi-speaker scenarios.
2. What are the main functions of this processor?
Input channel functions: including mute, gain adjustment, delay adjustment (0-180ms), 31-band graphic equalizer, expander and mixer, etc.
Output channel functions: including delay adjustment (0-60ms), frequency divider (multiple filter types and slope selections), 15-band parametric equalizer, gain adjustment and limiter, etc.
3. How to set it up through PC control software?
Users can connect the processor to the PC via USB or RJ45 cable and use professional PC control software to set it up. The software allows users to add, route and manage multiple online devices, and easily adjust audio parameters and configure devices.
4. Does the processor support the copy function of input and output channels?
Yes, 2in 6out Speaker Management Processor supports the duplication function of input and output channels, which can greatly simplify the system setting and debugging process and improve work efficiency.
5. How to perform remote signal management and control routing?
Users can connect the Dante controller through the RJ45 network port to achieve remote signal management and control routing. This allows users to monitor and adjust audio signals in real time at different locations to ensure the stability and reliability of the sound system.
