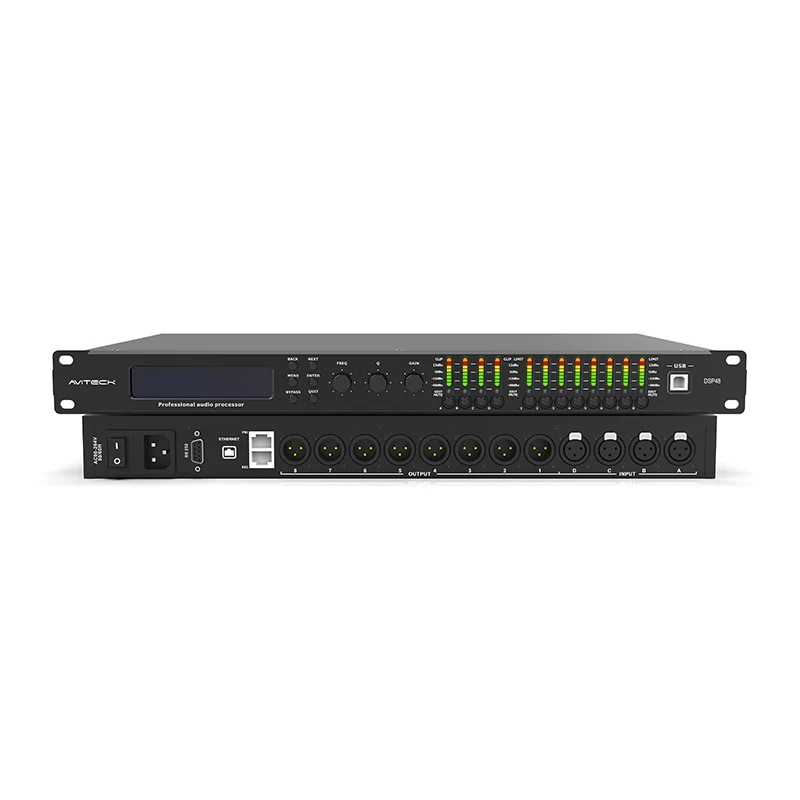

DSP48 is a 96K 4in 8out Speaker Management Processor, integrated with high performance DSP process, Dynamic EQ, FIR automatic linear phase and other powerful function. This speaker processor supports a variety of input signal: Analog\AES3\Dante network audio. Standard FIR designer in PC Software provide automatic linear magnitude and phase function, user can take an easy way to set their speakers parameters.
The 96K 4in 8out Speaker Management Processor With RJ45\USB and RS232 connectors, PC software provides user a easy way to control multiple devices. RS232 connectors support device being controlled from third-party system.
1. 4 analog inputs and 8 analog outputs.
2. Each input support to switch AES3 signal.
3. 4 channels Dante network audio optional.
4. High performance DSP process, 96k24bit sampling rate.
5. Input with 15 bands PEQ, output with 10 bands PEQ.
6. Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and HSLV. Support ALL-PASS, Band pass, Band stop filters, Phase, Notch filter, 3 kinds of High pass and Low pass.
7. Input with 3 bands Dynamic EQ.
8. Input with 4 x 512Taps 48k FIR linear phase setting.
9. Output with 4 x 512Taps 48k FIR linear phase setting.
10. Standard FIR automatic linear phase function designer.
11. Support presets archiving and locking, hide setting parameters.
12. Control connections: USB or TCP/IP. Configured with RS232 central control connection.

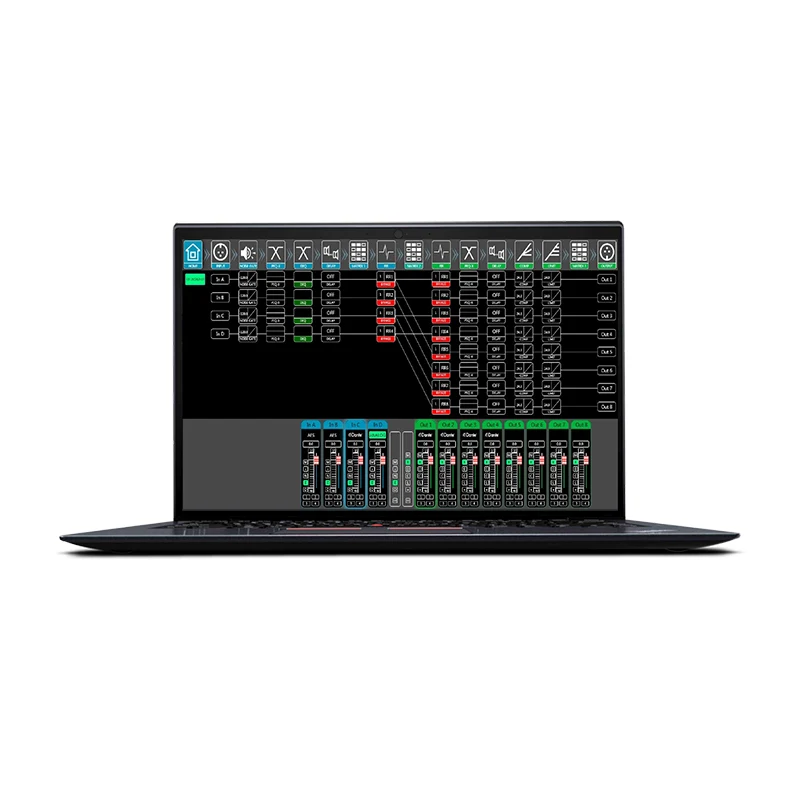

13. Nice GUI windows7/8/10/11 software .
14. Colourful LED indicator for input and output signal.
15. High analytical power, wide dynamic audio performance, suitable for stage, bar and other high-end sound systems.
|
DSP48 |
|
|
1. DSP Process |
|
|
Process: |
ADI SHARC 21489 450MHz |
|
System delay: |
2.1ms |
|
AD/DA: |
24-bit 96KHz |
|
2. Analog Audio Inputs and Outputs |
|
|
Input: |
4 channels balanced. |
|
Input interface: |
XLR(Neutrik®) |
|
Input impedance: |
20KΩ |
|
Max input level: |
20dBu/Line |
|
Dante in/out |
4*4 channels optional |
|
Output: |
8 channels balanced. Line level |
|
Output interface: |
XLR(Neutrik®) |
|
Output impedance: |
50Ω |
|
3. Audio Performance Specifications |
|
|
Frequency response: |
20Hz-20kHz(+-0.5dB)/Line |
|
THD+N: |
-93dB(@0dBu,1kHz,A-wt)/Line |
|
Ground noise: |
20Hz-20kHz, A-wt, -93dBu |
|
SNR: |
113dB(@16dBu,1kHz,A-wt)/Line |
|
4. Connect Ports and Indicators |
|
|
USB: |
Type A-B, free driver |
|
RS232: |
Serial port communication |
|
TCP/IP interface: |
RJ-45 |
|
Indicator light: |
Clip, level, edit, mute |
|
5. Electrical and Physical |
|
|
Supply: |
|
|
Products Dimensions |
483mmx215mmx44.5mm |
|
Packaged Dimensions |
537mmx343mmx77mm |
|
Net Weight |
3.8kg |
|
Packaged Weight |
4.2kg |
|
Operating temperature: |
-20℃～80℃ |
1. Live Performance Venues
Concerts and Festivals: Utilized for managing and optimizing the audio output of multiple speakers, ensuring clear and balanced sound across large audiences.
Theaters and Opera Houses: Provides precise control over audio signals, enhancing the overall listening experience for audiences and performers alike.
2. Installed Sound Systems
Conference Centers and Meeting Rooms: Ensures clear communication and sound reinforcement for presentations, discussions, and other events.
Educational Institutions: Ideal for schools, universities, and other educational settings, where audio clarity is crucial for lectures, seminars, and performances.
Churches and Worship Centers: Supports religious services, concerts, and other events with high-quality audio reinforcement.
3. Broadcast and Recording Studios
Broadcast Studios: Used for mixing and processing audio signals for radio and television broadcasts.
Recording Studios: Provides the necessary tools for audio engineers to mix, master, and process recorded music tracks.
4. Home Theater and Hi-Fi Systems
Custom Home Theater Installations: Enhances the audio experience of home theater systems, delivering clear, dynamic sound.
High-End Hi-Fi Systems: Provides precise control and optimization for high-fidelity audio systems.
5. Other Professional Applications
Audio-Visual Installations: Supports sound systems in museums, galleries, and other exhibition spaces.Sporting Events: Ensures clear and immersive audio for spectators at sports stadiums and arenas.
Hotel and Resort Audio Systems: Provides high-quality audio reinforcement for events, entertainment, and general ambient sound.
Key Features and Benefits 96K Sampling Rate: Offers high-resolution audio processing, ensuring accurate reproduction of sound.
4 Input and 8 Output Channels: Provides flexibility for connecting multiple audio sources and speakers.
Advanced DSP Technology: Supports a wide range of audio processing functions, including equalization, compression, limiting, and more.
User-Friendly Interface: Allows for easy configuration and control of audio settings.
Compact and Reliable Design: Suitable for a variety of installation environments and conditions.
