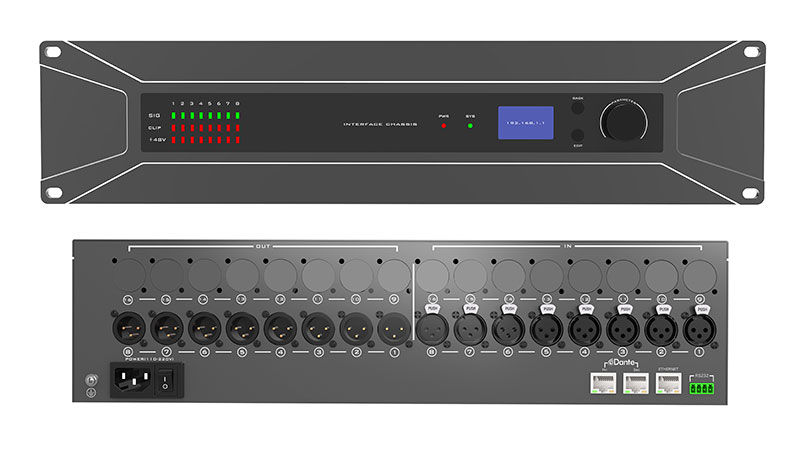

Dante Box(DB-0808/DB-1616) is a professional-grade network audio interface machine with Dante redundant network interface. It has 8/16-channel analog balanced input and 8/16-channel analog balanced output. After sampling and quantization, the analog input signal is sent to other Dante devices via the network. The network audio signal sent from the network is then converted into an analog signal for output.
DanteBox can be used to build a network audio matrix system, and it can also be used for audio transmission, distribution and routing. DanteBox features extremely low latency (minimum 125 microseconds), high audio quality (24-bit uncompressed audio, 48-96Khz sampling), very low floor noise and total harmonic distortion. It is a highly cost-effective network audio bridging device, serving as a "bridge" between traditional analog audio and advanced network audio.
DB-0808/DB-1616 Dante Audio Interface main features:
The audio interface device based on the Dante international general protocol can realize the input of analog audio signals, convert them into digital audio signals, and route them to any Dante audio transmission network device through the Dante protocol;
Supports the access of any Dante network digital audio, converts it into analog audio signal output, and connects to traditional analog audio equipment such as mixers, power amplifiers, processors, etc.;
Losslessly transmit audio signals over long distances;
Realize point-to-multipoint transmission;
Supports 16 channels of 48V phantom power and can be connected to condenser microphones;
High-quality AD/DA signal conversion chip;
Input includes phantom power supply, channel mute, and sensitivity adjustment functions;
The output includes channel mute function;
Comes with TFT screen and embedded GUI software control, which can quickly manually configure and view device network information and help information;
The panel provides channel signal indicator lights, clipping overload indicator lights, phantom power indicator lights, as well as editing knobs, control buttons, and return buttons.
Support RS232 central control protocol How to control it via the web page? Enter the IP address of the device, open the web page and log in. The default IP address of the device is 192.168.1.200. Open a browser on platforms such as Windows, macOS, Linux, iOS, and Android to access the IP address of the device, and you can enter the control page.
-
