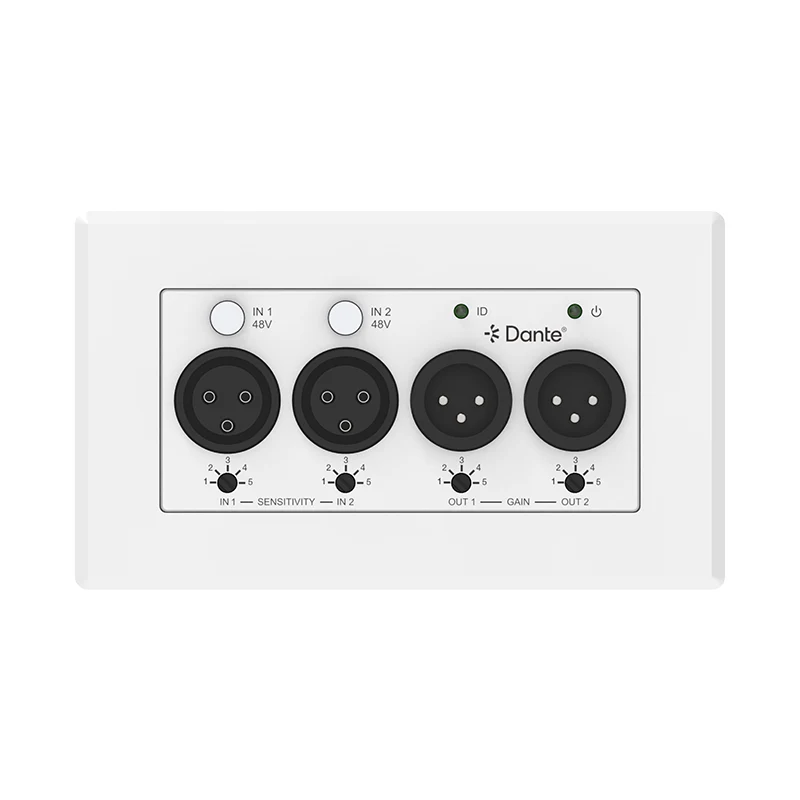

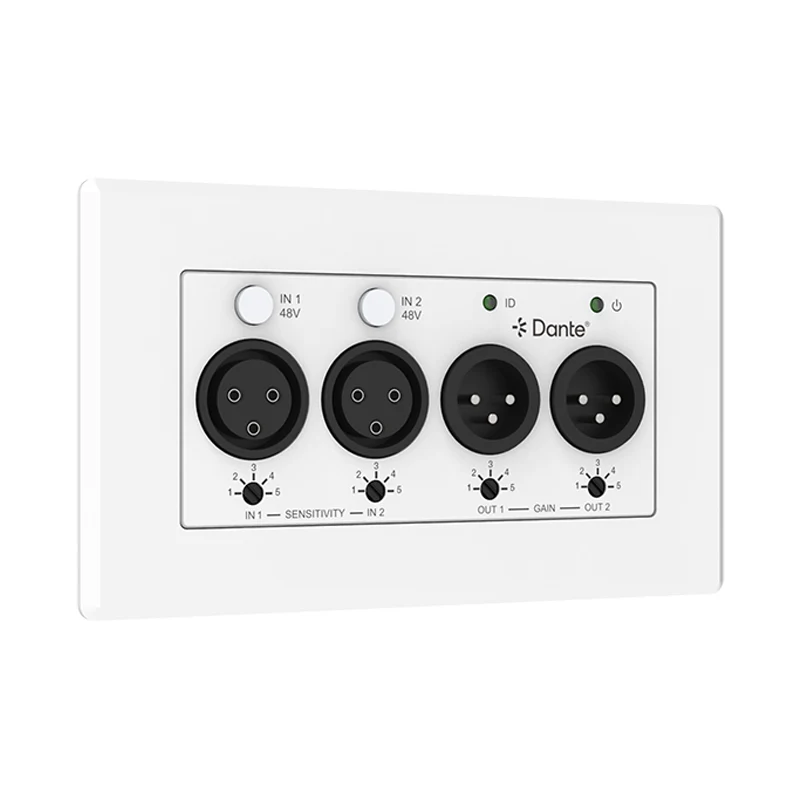

2Channel Analog XLR Dante Converter

This is our 2Channel Analog XLR Dante Converter.

This products support 2x Input & 2x Output Analogue XLR to Dante® Converter is an audio transmitter based on the Dante® Ultimo 2x2 solution. It is designed as a standard 2-GANG EU/UK wall plate to convert and bridge traditional audio source/sink devices to Dante® digital network.

Analogue audio input supports 5-level sensitivity adjustment. Analogue audio output supports 5-level gain control.

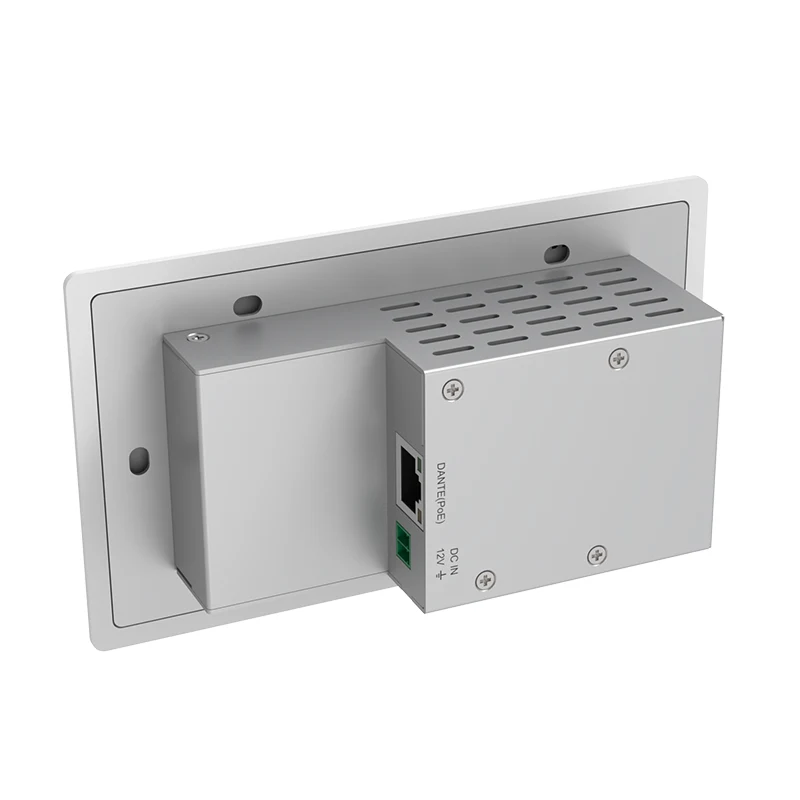

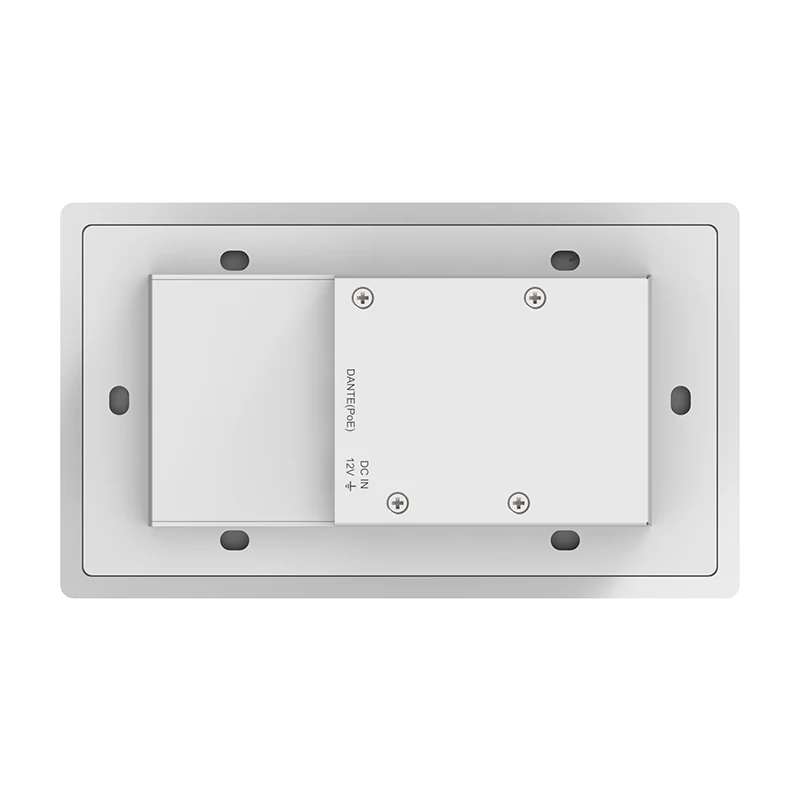

The converter supports local 12VDC power supply and PoE function.

Features:

2x Inputs + 2x Outputs (Dante® in and Dante® out)

Balanced/unbalanced XLR analogue audio

MIC Phantom 48V Power and on/off via hard button

Input sensitivity and output gain control to adjust for different levels of MIC/XLR

Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit

Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

Supports AES67 RTP audio transport

PoE & local power options

Standard 2-GANG EU/UK faceplate design

Applications:

Live sound

Broadcasting

Studio recording with seamless Dante integration

2CH Analog XLR Dante Converter Package Contents:

① 1x 2x Input & 2x Output Analogue XLR to Dante® Converter

② 1x 2pin-3.5mm Phoenix Connector (male)

③ 1× User Manual

Specifications:

FAQ

Q1: Do you offer OEM&ODM service?

A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q2:What's the quality standard of your products?

Our products has approved CE, ROHS,FCC certificates

Q3. If the quantity is less than the minimum quantity, can I order it?

A3. Of course, you are welcome to order samples for testing and quality inspection. We pay more attention to sample ordering

Q4: Which place will use FHBAudio equipment?

Our products are widely utilized across various sectors, including International Conferences, Governmental organizations, Banking institutions, Religious centers such as Churches, Airports, Parliamentary bodies, Educational institutions, Hotels, and Private Corporate Conference Halls, among others. This diverse range of applications highlights the versatility and reliability of our offerings, making them a trusted choice for a wide array of clients and industries.

Q5: What are the benefits of Dante audio?

A5: Dante audio offers a streamlined and efficient solution for transmitting high-quality audio over standard Ethernet networks. By leveraging Dante technology, users can effortlessly send and receive multiple audio channels through a single network cable, significantly reducing the need for bulky traditional wiring. This system provides exceptional flexibility, scalability, and reliability, making it ideal for live sound, broadcasting, and installed audio applications. With real-time performance and seamless integration across various devices, Dante simplifies audio networking while maintaining superior signal quality and low latency.

Warranty,Delivery,Shipping.

①Warranty:

All our products have been tested before shipping out;

We can provide 2CH Line In Dante Converter for 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

②Delivery:

Sample order: or the sample order,we can ship during 1-3days

Bulk order: t depends on the quantity,normally is 10-15days.

③Shipping:

All our products will be ship by Fedex/DHL/UPS/TNT or sea transportation. Also we can ship to your agent in China.
