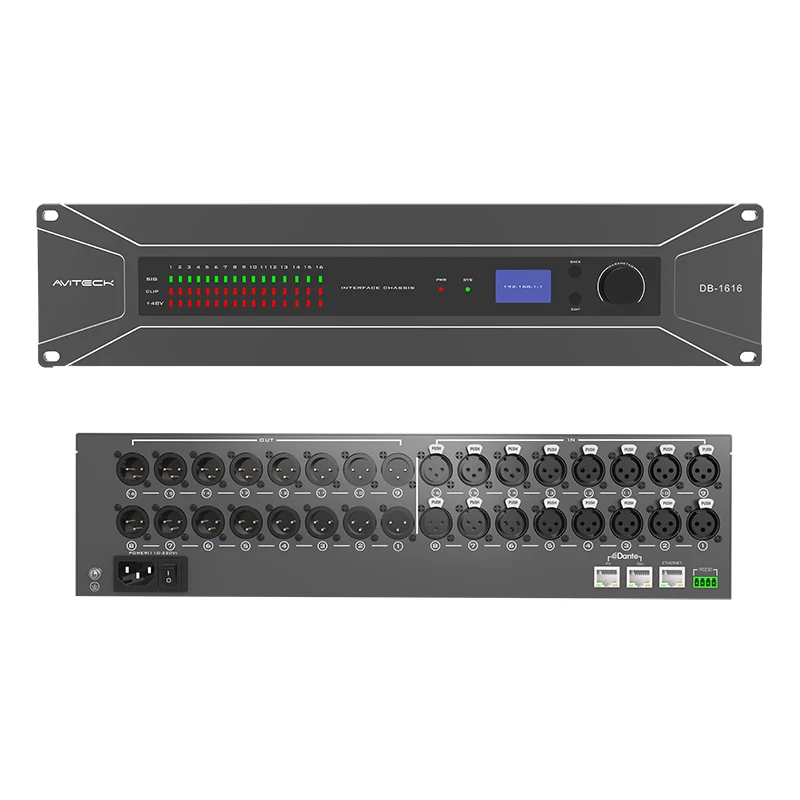

16CH Dante Audio Interface

16CH Dante Audio Interface support Audio input and conversion based on Dante international universal protocol:

1) The device is able to receive analog audio signals and convert these signals into digital audio signals through the built-in Dante protocol processing module.

2) The converted digital audio signals can be routed to any Dante audio transmission network device in the network through the Dante network protocol.

Access and analog output of 16CH Dante Audio Interface :

1) The device supports receiving digital audio signals from the Dante network and converting them into analog audio signals for output.

2) These analog audio signals can be directly connected to traditional analog audio devices such as mixers, amplifiers, processors, etc., to achieve seamless integration with existing audio systems.

Long-distance lossless audio transmission:

1) Taking advantage of the Dante network protocol, the device is able to achieve long-distance lossless transmission of audio signals. This means that no matter where the audio signal is transmitted to the network, its sound quality will not be lost.

Point-to-multipoint transmission function:

The device supports point-to-multipoint transmission, which means that it can send audio signals to multiple target devices at the same time. This is particularly important in large audio systems because it allows audio signals to be flexibly distributed to different areas or devices.

16-Channel 48V Phantom Power Support The device provides 16 channels of 48V phantom power, which can be connected to high-quality condenser microphones. This is very important for applications that require high-quality pickup, as condenser microphones generally provide clearer sound quality than dynamic microphones.

High-quality AD/DA signal conversion chip:

The device uses a high-quality AD/DA signal conversion chip to ensure that the audio signal has extremely low distortion during the conversion process. This helps to maintain the original sound quality of the audio signal so that it will not be damaged during transmission and processing.

Rich input functions:

The input end includes functions such as phantom power supply, channel mute and sensitivity adjustment.

These functions allow users to flexibly configure according to actual needs to optimize the pickup and processing of audio signals.

Complete output functions:

The output end has a channel mute function, which can turn off or turn on the audio output of a specific channel as needed. This helps to achieve fine audio control in complex audio systems.

TFT screen and embedded GUI software control:

The device is equipped with a TFT screen and embedded GUI software control, and users can intuitively view and configure device network information and help information.This makes the operation of the device easier and more intuitive, reducing the difficulty of learning and using.

Rich panel indicators and controls: The panel provides channel signal indicators, clip overload indicators, phantom power indicators, etc., as well as controls such as editing knobs, control buttons and return buttons.These indicators and controls allow users to monitor the device status in real time and perform quick operations, improving the usability and flexibility of the device.

Support RS232 central control protocol: The device supports RS232 central control protocol and can be connected to the central control system for unified management and control. This makes the device easier to integrate and manage in large audio systems, improving the overall performance and reliability of the system.

This 16CH Dante Audio Interface device based on the Dante international general protocol has many key features and advantages, including seamless conversion of analog and digital audio signals, long-distance lossless transmission, point-to-multipoint transmission, high-quality AD/DA signal conversion chip, rich input and output functions, TFT screen and embedded GUI software control, and support for RS232 central control protocol. These functions and features make the device have broad application prospects and great value in large audio systems.

FHBAVTEC 16CH Dante Audio Interface Specification
