Line 2 Inputs Multi 2 Outputs

DWP22L is an excellent quality Dante interface Panel for converting two Dante channels to Analogue Audio outputs, and two Analogue Audio inputs to Dante network. DWP22L-US designed to fit with US style double-gang back box. DWP22L-EU designed to fit with European mounting back box.

The DAP22L Dante Interface Mic/Line 2 Inputs Multi 2 Outputs Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network.

Dante Interface Panel Mic/Line 2 Inputs Multi 2 Outputs Main Features:

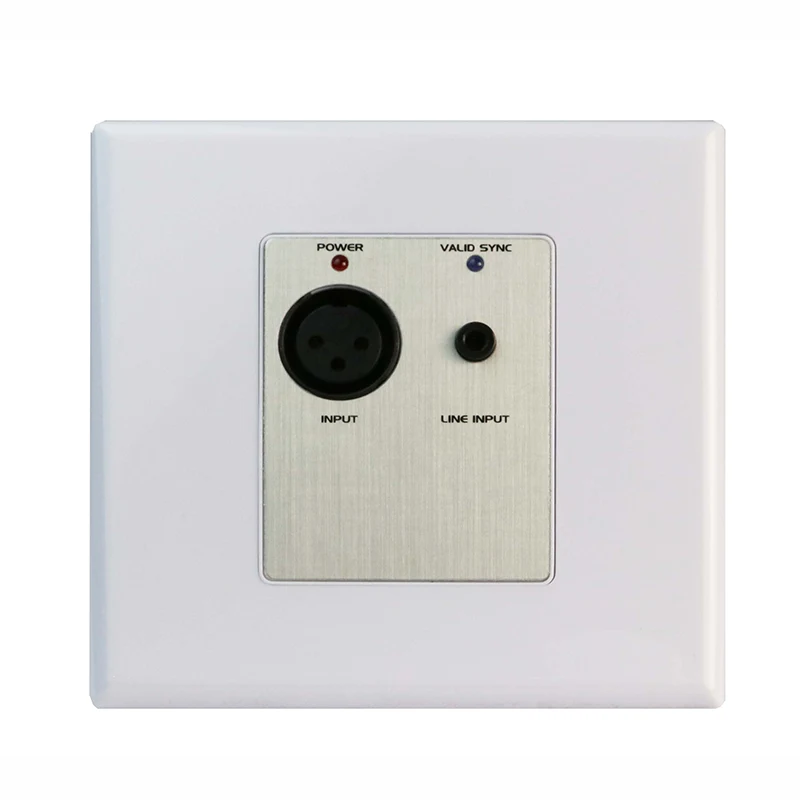

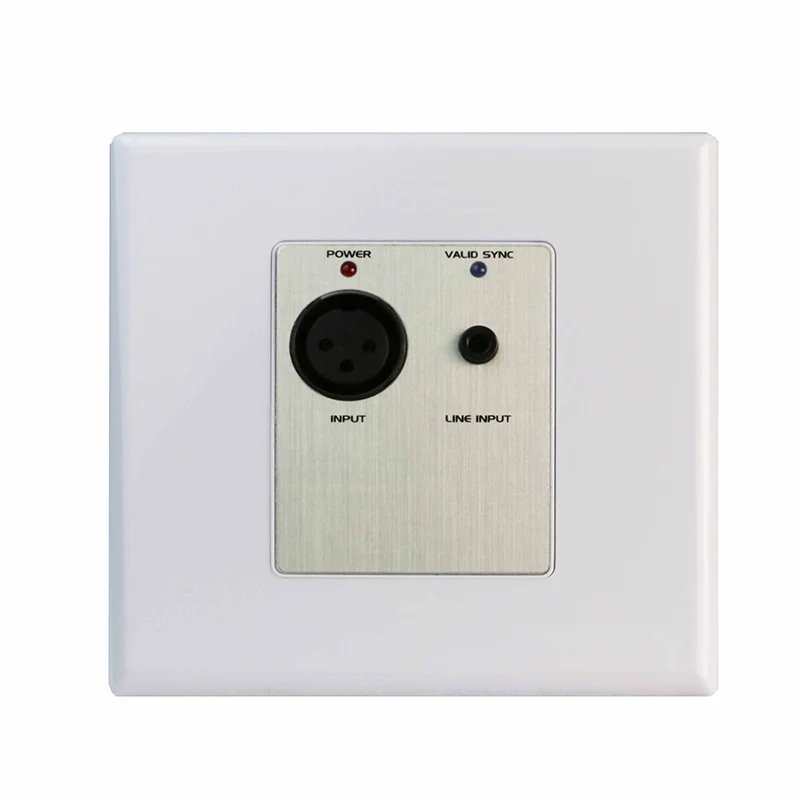

One MIC/Line XLR Input and One Mini-jack Input on Front Panel

Mini-jack Input is summed to Mono signal

Converts MIC or Line Audio Signals to Dante Network

MIC/Line is Selectable for XLR Input

Switchable 48V Phantom Power for MIC XLR Input

Adjustable MIC/Line Gain from -20 dB to +20dB for Each Input Channel

Two Audio Signal Outputs from Dante Network on Rear Panel

Each Audio Input Signal/Clip LED on Side Panel

High Resolution 24 Bit Converts Analog to Digital and Digital to Analog

LEDs Indicate the Status for Power and Network Sync on Side Panel

Power over Ethernet (PoE) or 24VDC power supply

Provides High Quality of Preamplifier for Microphones

Excellent Audio quality with low noise

FHBAVTEC  Dante Interface Mic/Line 2 Inputs Multi 2 Outputs Specification

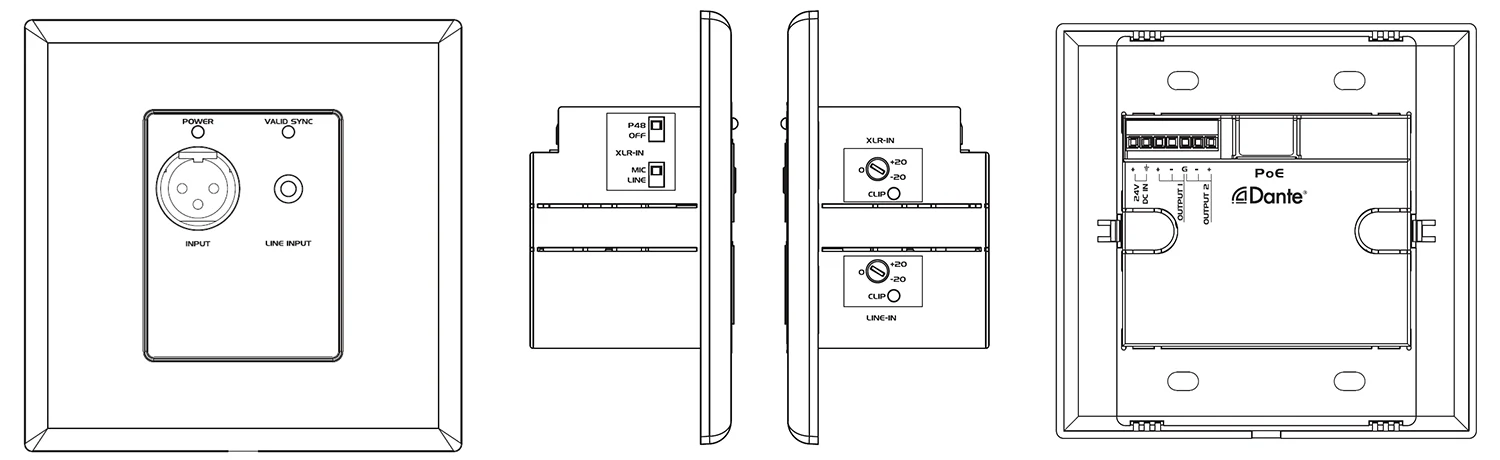

FHBAVTEC Dante Interface Panel Mic/Line 2 Inputs x 2 Outputs Operation

1. XLR input, accept MIC or Line audio signal.

2. 3.5mm Mini jack input, accepts Line audio signal.

3. Power LED indicator.

4. SYNC LED indicates the status of Dante network

5. XLR Input Selector

Line: Accepts Balanced or Unbalanced Line source.

MIC: Accepts the signal of Dynamic or Condenser microphone.

P48V: Provides 48V Phantom power when connecting Condenser microphone.

6. Input Gain Control : Adjust the Gain level of input signal on each input channel.

7. Signal CLIP LED on each input channel.

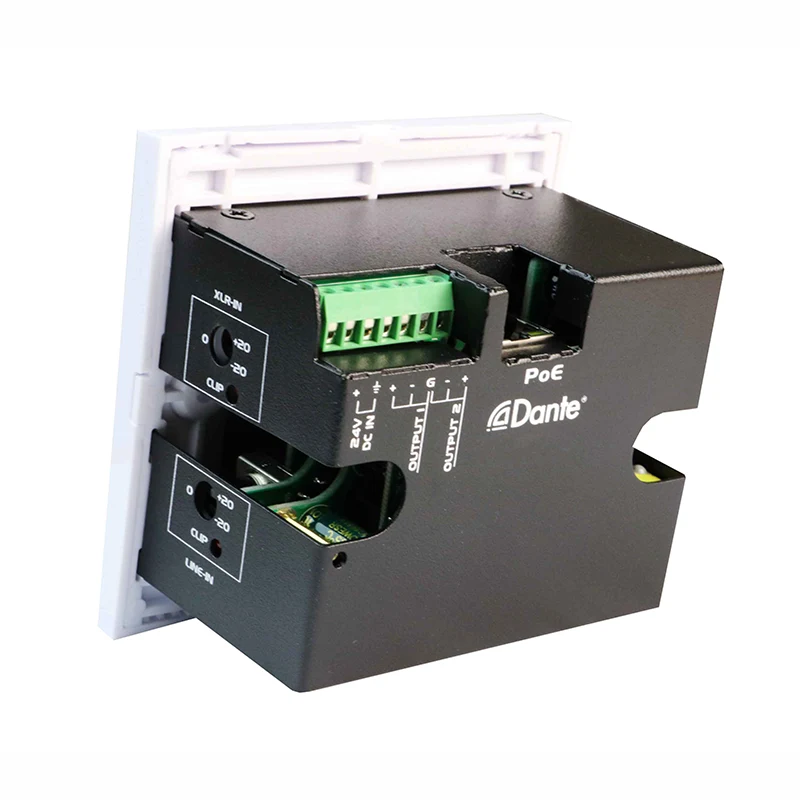

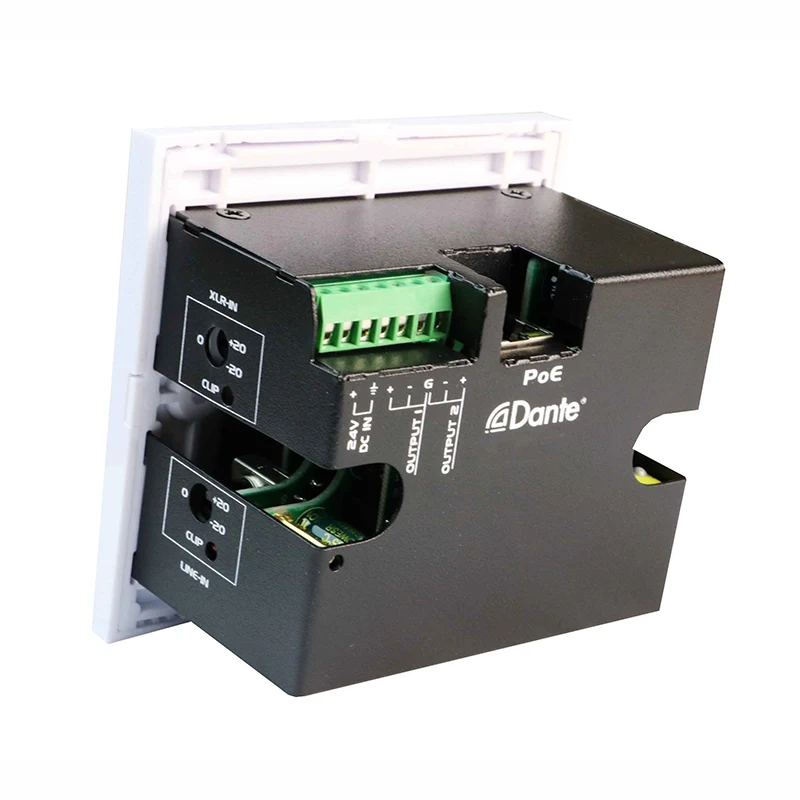

8. Euro Terminal Outputs: Converts two Dante channels to analogue Line outputs.

9. RJ45 port: Using Cat5 cable to connect to Dante network.

Note: When using PoE enabled network switch, DWP22L could be powered and operation from PoE.

10. Power: Connect DC 24V to 2P terminal block or DC input jack.

Note: If DC 24V and PoE are both present to DWP22L, the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.

FHBAVTEC Dante Interface Mic/Line 2 Inputs x 2 Outputs Application

The 2CH Dante Interface 2 Mic/Line Inputs x 2 Outputs interface panel is perfect for professional audio applications, such as conference rooms, live sound setups, broadcast studios, and installed AV systems, where reliable Dante-to-analog and analog-to-Dante conversion is required in a compact, rack-free form factor. Its wall-mounted design allows for clean and efficient integration into various environments while maintaining high-quality audio performance.
