The DR22 Dante Box is a compact Dante-to-analog audio interface that receives two channels of digital audio over a Dante network and converts them to analog stereo (RCA) outputs.Dante Network Integration: Simply connect the DR22 to an Ethernet switch via a standard Cat5/Cat6 cable (RJ45 port).
Low-Latency Audio: Using Dante Controller software, seamlessly route audio from any Dante-enabled device (e.g., mixers, processors, or microphones) on the same network to the DR22’s analog outputs.Plug-and-Play: No complex configuration—just assign the Dante channels, and the DR22 delivers high-fidelity analog audio for amplifiers, speakers, or recording systems.
Dante Interface for Audio Input.

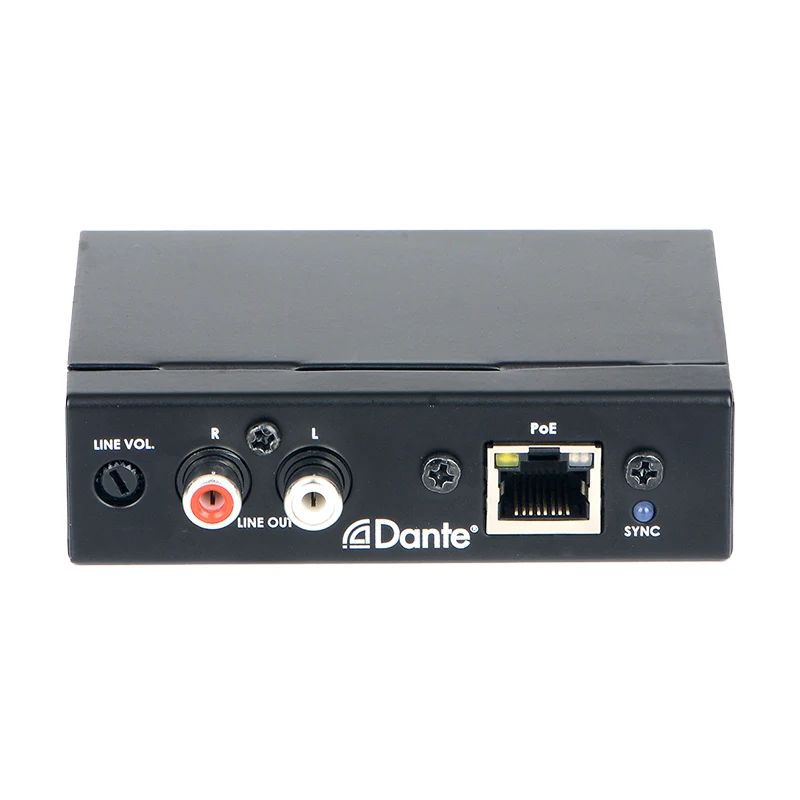

RCA output Jacks on front panel.
Converts Dante Audio Signal to Unbalanced Line Level. Output Gain Control on front panel
Selectable Dante Sample Rates: 44.1 kHz ~ 96 kHz. High Resolution Digital to Analog Conversion Power over Ethernet (PoE).
Excellent Audio qualit
|
LINE OUT |
RCA, Unbalanced |
|
Output Impedance |
40Ω |
|
Output Level |
-10 dBu nominal |
|
Output Level |
+10 dBu Maximum |
|
Output Voltage |
+20dBu (@ 0dB output gain) |
|
Frequency Response |
20Hz to 20KHz (+/- 2dB) |
|
THD+N |
<0.06 % @ 1KHz |
|
S/N |
95dB @ 1KHz (A Weighted) |
|
Dynamic Range |
100dB (-60dBFS A Weighted) |
|
Dante channel |
|
|
Transmitters/Receivers |
2/2 |
|
Transmission rate |
100 Mbps |
|
Resolution |
16/24/32 Bit |
|
Sampling rate |
44.1 KHz, 48 KHz, 88.2 KHz, 96KHz. |
|
Dante interface |
RJ-45 jack |
|
Power supply |
PoE, 52V 36 mA |
|
Dimensions |
92.5mm(W)× 25.2mm(H)× 68.2mm(D) |
|
Weight |
190 g |
The DR22 is an audio Line RCA output Dante interface. Its converts digital Dante audio signals into analog line-level (RCA) outputs, enabling seamless integration between modern IP-based audio networks and legacy analog systems.It can be use in wild application:
1. Live Sound & Performance
Stage Monitoring: Feed Dante network audio (e.g., mixed monitor signals from a digital console) to analog stage amplifiers or powered speakers via RCA inputs.
Backup Systems: Provide a fail-safe analog feed from a Dante network to emergency PA systems or backup mixers.
2. Broadcast & Streaming
Studio Monitoring: Route Dante audio (e.g., program feeds or live mics) to analog studio monitors or headphones with RCA inputs.
Legacy Equipment Integration: Connect Dante-based broadcast consoles to older recorders, tape decks, or analog processors.
3. Corporate & Hospitality AV
Background Music: Distribute Dante network audio (e.g., streaming music or announcements) to analog amplifiers in lobbies, restaurants, or hotel zones.
Conference Systems: Send Dante microphone feeds to analog recording devices or small PA systems.
4. Home & Consumer Integration
Hi-Fi Systems: Play Dante network audio (e.g., from a PC or Dante-enabled mixer) through home stereos, receivers, or vintage amplifiers with RCA inputs.
Multi-Room Audio: Extend Dante audio to analog speakers in non-networked rooms.
5. Retail & Digital Signage
Zone Audio: Deliver Dante-managed advertising or music feeds to analog ceiling speakers or standalone audio players.
6. House of Worship
Satellite Speaker Feeds: Convert Dante-distributed audio for analog balcony or overflow area speakers.
Legacy Compatibility: Bridges modern Dante networks with analog gear.
Low Latency: Dante ensures synchronized, high-quality audio transmission.
Simplified Wiring: Replaces bulky analog multicore cables with a single Ethernet connection.
Setup Example:
Connect the interface to a Dante network via an Ethernet switch.
Use Dante Controller to route audio channels to the interface.
Patch the RCA outputs to amplifiers, recorders, or speakers.
