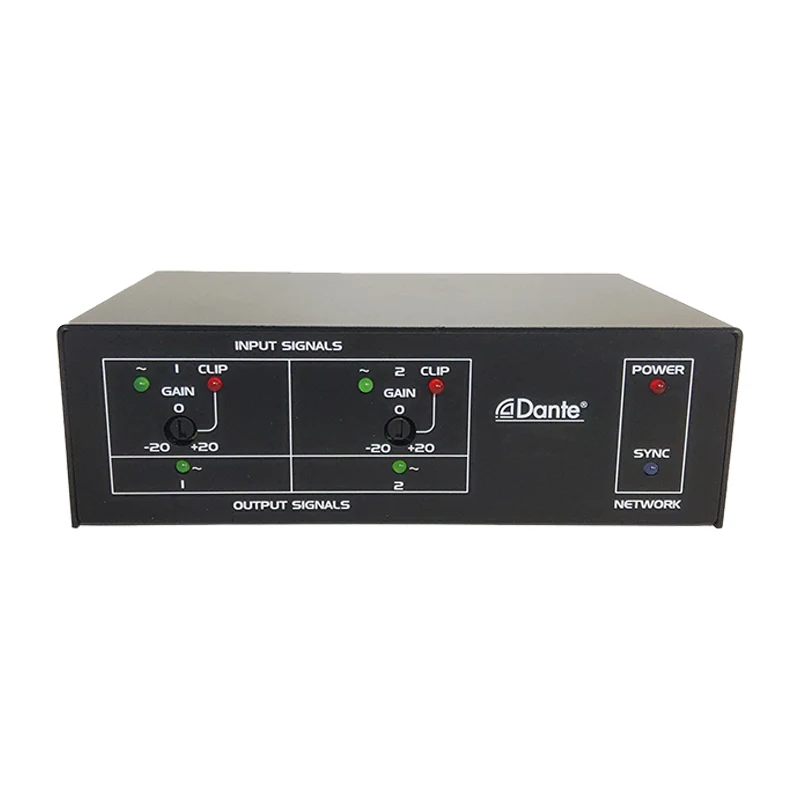

DB0202 is an excellent quality Line Inputs Multi 2 Outputs for converting two Dante channels to Analogue Audio outputs, and two Analogue Audio inputs to Dante network.
Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network.It is suitable for Expanding I/O for Dante systems with analog gear,Legacy equipment integration (e.g., analog mixers, amplifiers).,Portable setups requiring compact, network-based audio solutions.Also can be use together with our Dante DSP,Dante microphone, Dante speaker.
* Provides Dante Interface for two Inputs / Outputs
* Two Standard MIC or LINE Audio Channels Converts to Dante Network
* MIC/LINE selectable on Each Input
*Gain Control on Each Input
* Gain Control on Output Channels
* Provides 48V Phantom Power for Each Condenser Microphone Input
* Accepts Balanced or Unbalanced Signal Inputs
* Each Audio Input Signal/Clip LED on Front Panel
* Each Audio Output Signal LED on Front Panel
* Two Balanced Audio Output Line Level from Dante Network
* High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
* LEDs Indicate the Status for Power and Network Sync
* Powered by External 24VDC Power Supply
* Normal Operation with PoE Enable Network Switch
|
Dante Network to Line Level Outputs |
|
|
Outputs |
5P Detachable Terminal block, Balanced/Unbalanced |
|
Output Level |
-10 dBu nominal |
|
Output Level |
+10 dBu Maximum |
|
Output Voltage: |
+20dBu (@ 0dB output gain) |
|
Output Impedance |
150 _ balanced; 75 _ unbalanced |
|
Frequency Response |
20 Hz to 20 kHz (± 0.5 dB) |
|
THD+N |
< 0.1% |
|
Noise |
<-75dB |
|
Crosstal |
< 85 dB (20 Hz to 20 kHz) |
|
Mic/Line Inputs to Dante Network |
|
|
Mic Inputs |
|
|
Inputs |
7 Pin Euro Terminal, Balanced |
|
Gain |
Condenser microphone :40 dB |
|
Dynamic microphone |
60 dB |
|
Input Level for +4 dBu |
-36 dBu (Condenser) |
|
|
-56 dBu (Dynamic) |
|
|
-36 dBu(Maximum) |
|
Input Impedance |
40 __ |
|
Phantom Power |
48 V |
|
Frequency Response |
20 Hz to 20 kHz (± 0.5 dB) |
|
THD+N |
< 0.1% |
|
Noise below +4 dBu |
< -70 dB |
|
CMRR |
> 70 dB (50 Hz to 120 Hz) |
|
Crosstalk |
< 70 dB (20 Hz to 20 kHz) |
|
Line Inputs |
|
|
Inputs |
7 Pin Euro Terminal, Balanced |
|
Input Level for +4 dBu |
+4 dBu (balanced); -10 dBV (unbalanced) |
|
Input Impedance |
>40 _ |
|
Frequency Response |
20 Hz to 20 kHz (± 0.5 dB) |
|
THD+N |
< 0.1% |
|
Noise below +4 dBu |
< -75 dB |
|
CMRR |
> 60 dB (50 Hz to 120 Hz) |
|
Crosstalk |
< 75 dB (1 kHz, any line to any mic channel), |
|
|
< 70 dB (20 Hz to 20 kHz) |
|
Headroom above +4 dBu |
> 18 dB |
|
Dante channel |
|
|
Transmitters/Receivers |
2/2 |
|
Transmission rate |
100 Mbps |
|
Resolution |
16/24/32 Bit |
|
Sampling rate |
44.1 kHz, 48 kHz. |
|
Dante interface |
RJ45 jack |
|
Power Connections |
2 Pin Euro Terminal, Power Jack |
|
Power Requirement |
24 Vdc @ 180 mA plus connected phantom loads, or PoE |
|
Dimensions |
143mm(W) × 45mm(H) × 93mm(D) |
|
Weight |
0.7Kgs |

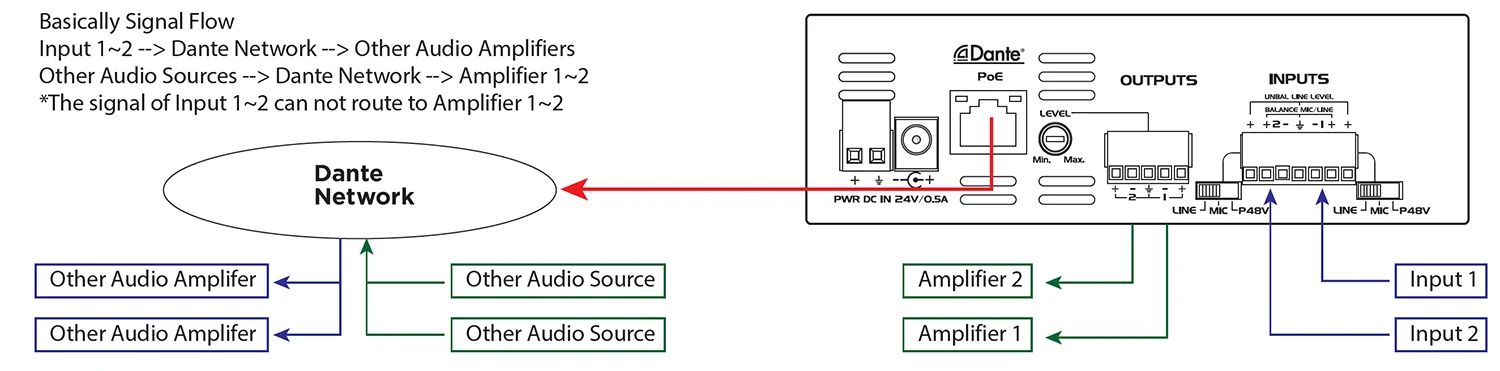

1. Line Volume: Gain control for output level.
2. Euro Terminal input: Receive the audio signal to Dante network.
3. RJ-45 port: Using Cat5 cable to connect to Dante network.
Note: The Ethernet switch needs to have PoE power supply.
4. SYNC LED: Indicates the status of Dante network.
The 2CH Dante Interface 2 Mic/Line Inputs x 2 Outputs can use in Corporate AV Conferencing System.
Advantages: It can Seamless integration with existing Dante AV networks and Eliminates analog cabling for long-distance signal runs.
