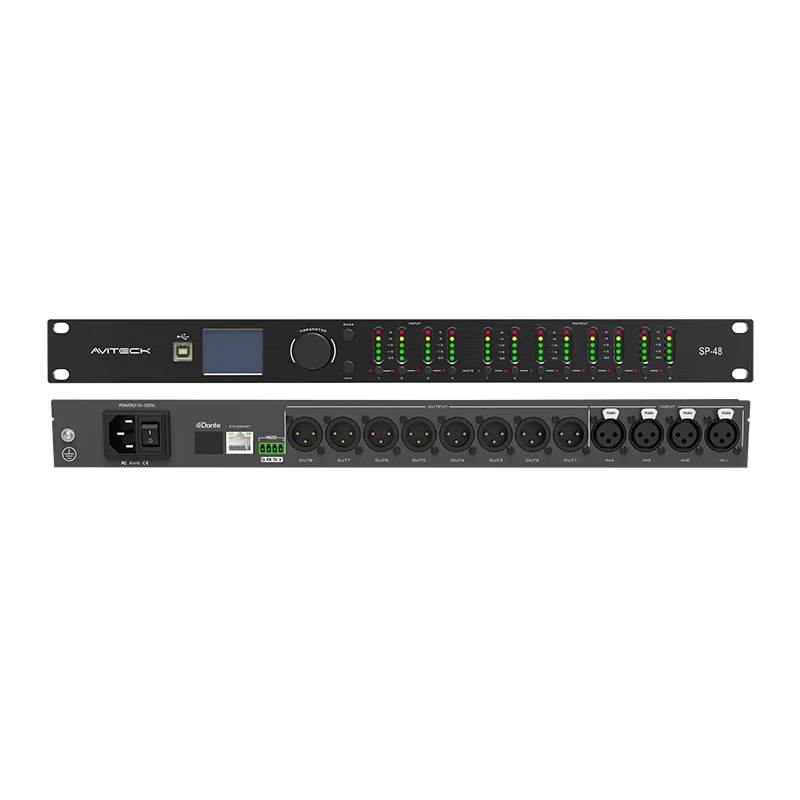

4in 8out Speaker Management Processor

4in 8out Speaker Management Processor are mainly used for loudspeaker control and processing. They are mainly used in scene amplifiers, theatres, discos, concert halls and other scenes requiring speaker management.

Specification of 4in 8out Speaker Management Processor:

4in 8out Speaker Management Processor Features:

1.The SP series speaker manager supports multiple analog signal inputs and outputs, and multiple dante signal inputs for multi-speaker scene signal distribution management;

2.Built-in dante chip, high-performance DSP processing chip, 24bit, 48kHz processing capability, high-performance A/D and D/A converters;

3.Comes with TFT interactive LCD screen and embedded GUI interface for quick parameter adjustment;

4. 512-tap custom FIR filter with stability and linear phase; supports importing FIR parameters generated by third-party software and supports graphical interface display;

5.Input channels include: mute, gain, delay (0-180ms), 31-band graphic equalizer, expander, and mixer;

6.The output channels include: delay (0-60ms), frequency divider (Butterworth/Bessel/Linkwich filter type 12dB/24dB/36dB/48dB filter slope, FIR filter), 15 Segment parametric equalizer, gain, limiter functions;

7.Professional PC control software, connected through USB or RJ45 cable to realize PC software control settings;

8.The software can add, route and manage multiple online devices;

9.Support input and output channel copy function;

10.Support the mutual binding function of input and output channels;

11.Supports the saving, calling, importing and exporting of multiple sets of scenes;

12.The panel is equipped with a switch for the rotary encoder selection menu, which is easy to operate;

13.Dante controller can be used through the RJ45 network port for signal remote management and control routing.

14.Configure bidirectional RS232 interface and standard Ethernet control interface, and open relevant protocol documents.

4in 8out Speaker Management Processor Packing List:
