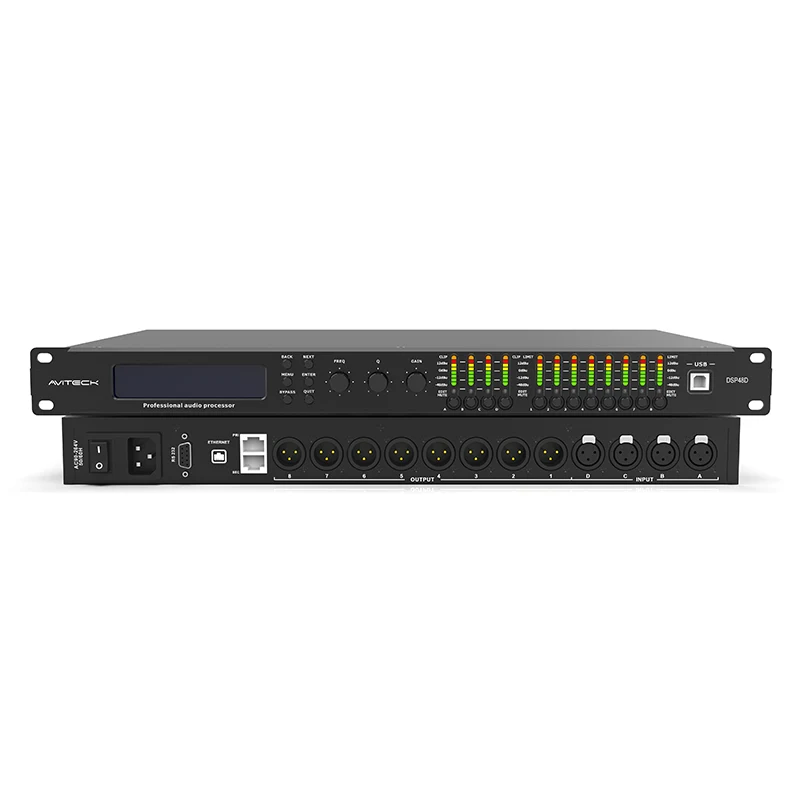

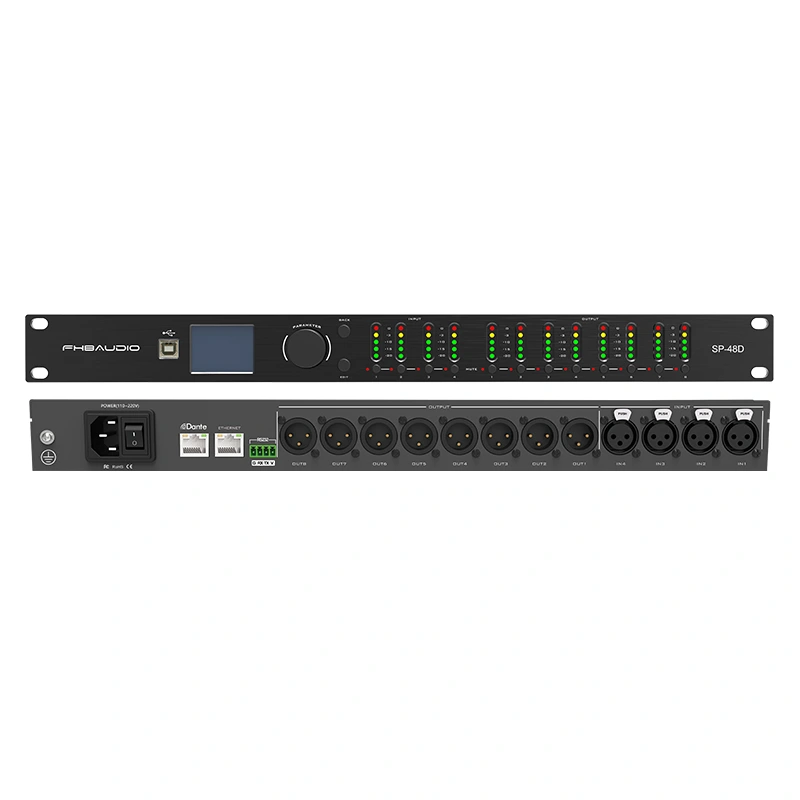

4in 8out 96K Dante Speaker Management Processor

The DSP48D 4in 8out 96K Dante Speaker Management Processor is a versatile 4-input, 8-output FIR DSP speaker processor that combines high-performance DSP processing, Dynamic EQ, and automatic FIR linear phase functionality into a single powerful unit. This processor is compatible with a wide range of input signals, including Analog, AES3, and Dante network audio, making it suitable for diverse audio environments.

The DSP48 features a standard FIR designer in its PC software, which provides automatic linear magnitude and phase adjustments. This allows users to easily set and fine-tune their speaker parameters for optimal sound quality.For convenient control and management, the DSP48 is equipped with RJ45, USB, and RS232 connectors. The PC software enables users to control multiple devices with ease, while the RS232 connectors allow for integration with third-party systems for centralized control.

Overall, the DSP48 is a robust and flexible speaker processor that offers advanced features and easy control options, making it an ideal choice for high-end audio applications.

4in 8out 96K Dante Speaker Management Processor Features:

 Four Analog Inputs and Eight Analog Outputs: Enabling versatile connectivity for a wide range of audio sources and speakers.

 AES Signal Compatibility: Each input supports switching to AES signals, ensuring compatibility with digital audio formats.

 Dante Network Audio Option: Providing an additional layer of flexibility for network-based audio systems.

 High-Performance DSP Processing: With a 96kHz/24-bit sampling rate, ensuring pristine audio quality and clarity.

 Comprehensive Equalization:

 15-Band PEQ for Inputs: Offering precise frequency adjustment and shaping.

 10-Band PEQ for Outputs: Allowing for detailed output control.

 Versatile Filtering Options:

 High-Pass and Low-Pass Filters with Butterworth, Bessel, and Linkwitz-Riley characteristics.

 LSLV and HSLV support.

 ALL-PASS, Band Pass, and Band Stop filters for advanced sound sculpting.

 Dynamic 3-Band EQ for Inputs: Enabling dynamic equalization for adapting to different audio sources and environments.

 FIR Linear Phase Settings:

4×512 Taps at 48kHz for inputs.

4×512 Taps at 48kHz for outputs.

 Standard FIR automatic linear phase function for consistent sound quality.

 Preset Management: Supporting archiving and locking of presets, as well as hiding specific setting parameters for secure and streamlined use.

 Control Connectivity:

 USB or TCP/IP for flexible control options.

 RS232 central control connection for integration with larger systems.

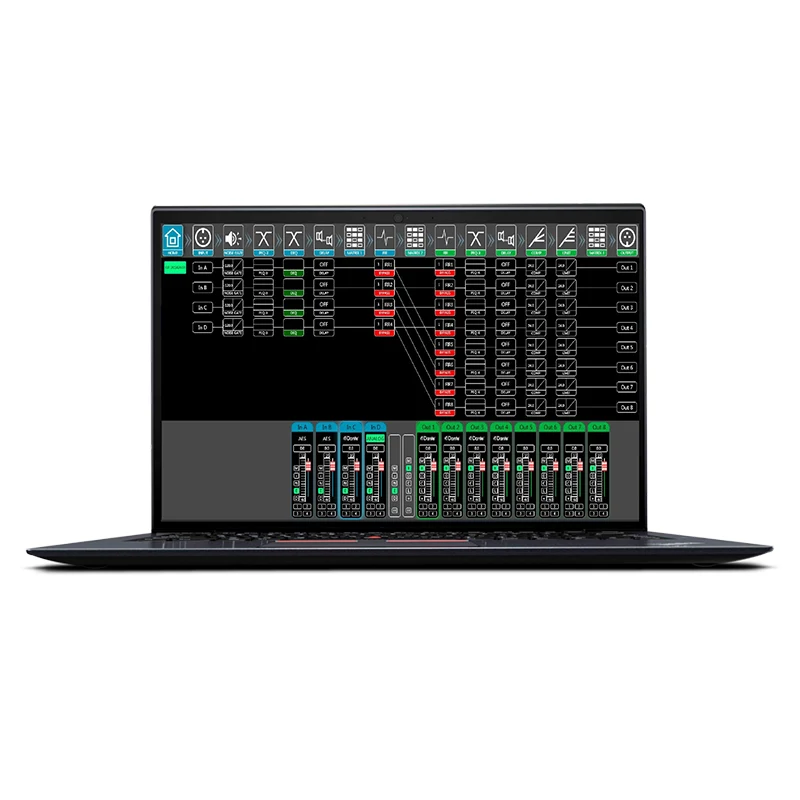

 User-Friendly Software:

Windows 7/8/10/11 GUI software for comprehensive control and configuration.

Android app for convenient network control on mobile devices.

 LED Indicators: Colorful LED indicators for clear visual feedback on input and output signal status.

 Exceptional Audio Performance: With high analytical power and wide dynamic range, it's ideal for use in stages, bars, and other high-end sound systems.

4in 8out 96K Dante Speaker Management Processor Parameters:

The 4in 8out 96K Dante Speaker Management Processor is a versatile and powerful audio processing device that finds applications in various professional audio environments. Such as Live Performance Venues, Installed Sound Systems, Broadcast and Recording Studios and events.

Broadcast Studios: Used for mixing and processing audio signals for radio and televis.

Advanced DSP Technology: Supports a wide range of audio processing functions, including equalization, compression, limiting, and more.

User-Friendly Interface: Allows for easy configuration and control of audio settings.

Compact and Reliable Design: Suitable for a variety of installation environments and conditions.
