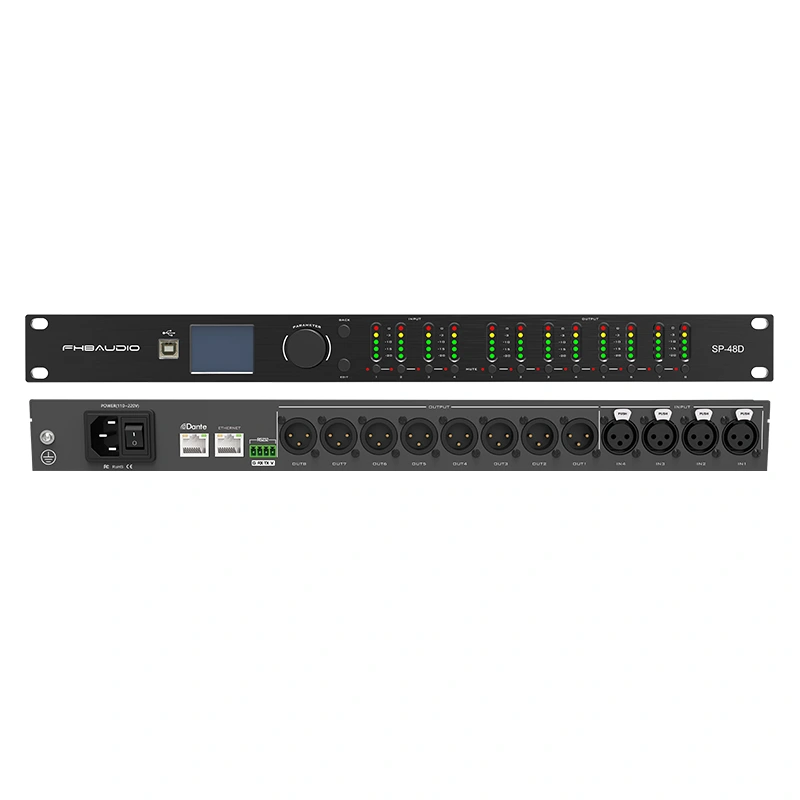

4in 8out Dante Speaker Management Processor has 4 input channels and 8 output channels, supports Dante audio network protocol, and can realize digital transmission and processing of audio signals. Each channel is equipped with rich audio processing functions, such as crossover (Xover), parametric equalizer (PEQ), delay (Delay), limiter (Limiter), gain (Gain) and mute (Mute), etc., to meet the audio needs of different occasions.
|
Model No. |
SP-48D |
|
Analog Channel |
4 balanced inputs + 8 balanced outputs |
|
Dante Channel |
4 channels of dante input |
|
Frequency response |
20 - 20KHz，±0.2 dBu |
|
Maximum input level |
+20 dBu，Balanced input |
|
Maximum output level |
+20 dBu，Balanced output |
|
THD+N |
<0.002% @ 4 dBu |
|
Channel isolation |
105 dB @ 1 KHz |
|
Sampling Rate |
48KHz |
|
Number of quantization bits |
24bit |
|
Noise floor |
-90dBu |
|
Input resistance |
20 KΩ |
|
Output impedance |
100 Ω |
|
Size |
440x208x44mm |
|
Operating temperature |
-10-50℃ |
|
Net weight |
1.9kg |
The 4in 8out Dante Speaker Management Processor is tailored to handle a multitude of analog and Dante digital signal inputs and outputs, facilitating efficient signal distribution and management in multi-speaker configurations.
Highlighted features encompass:
• A seamless integration of a Dante chip with a robust DSP processing unit that supports 24-bit audio at 48kHz, accompanied by premium-grade analog-to-digital (A/D) and digital-to-analog (D/A) converters.
• A TFT interactive LCD screen with an intuitive graphical user interface (GUI) for swift and user-friendly adjustment of parameters.
• A customizable 512-tap FIR filter that guarantees stability and linear phase, with the capability to import FIR filter parameters from third-party applications and visualize them through a graphical display.
• Input channels equipped with mute functionality, gain control, adjustable delay (ranging from 0 to 180ms), a comprehensive 31-band graphic equalizer, an expander, and a mixer for versatile audio processing.
• Output channels featuring adjustable delay (up to 60ms), a versatile frequency divider with multiple filter types (Butterworth, Bessel, Linkwich) and slopes (12dB, 24dB, 36dB, 48dB), including FIR filters, a precise 15-band parametric equalizer, gain control, and limiter functions to ensure optimal sound output.
• Professional PC control software accessible via USB or RJ45 cables, offering extensive software control and configuration options.
• Software tools for adding, routing, and managing numerous online devices within the system.
• Convenient input and output channel copy functions for easy duplication of settings.
• Binding capabilities for input and output channels to streamline signal routing and processing.
• Multiple scene settings that can be easily saved, recalled, imported, and exported for versatile application scenarios.
• A panel-mounted rotary encoder selection menu switch for intuitive and straightforward operation.
• Dante controller functionality through the RJ45 network port, enabling remote signal management and routing control.
• A bidirectional RS232 interface and a standard Ethernet control interface, complete with access to customizable protocol documents for tailored integration.
This 4in 8out Dante Speaker Management Processor is suitable for various occasions that require high-quality audio processing, such as live performances, theaters, conference halls, recording studios, etc. Its powerful audio processing capabilities and flexible channel configuration enable it to meet the complex audio requirements of different occasions.
