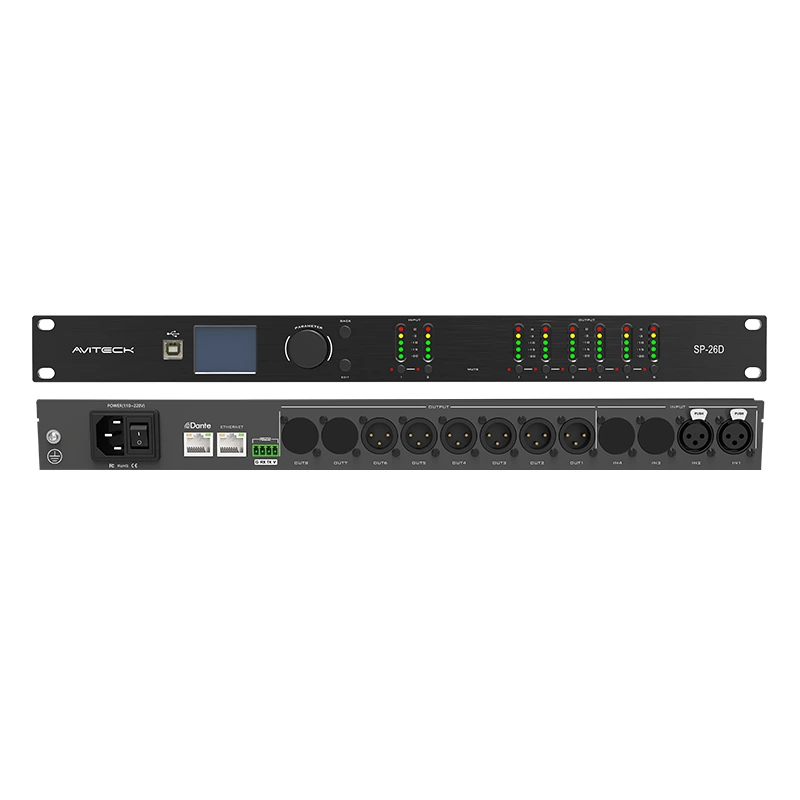

The 2in 6out Dante Speaker Management Processor series offers comprehensive speaker management capabilities, featuring multiple analog signal I/O options. Equipped with a built-in, high-performance DSP processing chip, it comes loaded with versatile functions such as a 31-band graphic equalizer, a 15-band parametric equalizer, gain control, compressor, delay, among others. Additionally, the Dante functionality is available as an optional feature, providing further flexibility and customization..
|
Model No. |
SP-26D |
|
Analog Channel |
2 balanced inputs + 6 balanced outputs |
|
Dante Channel |
2 channels of dante input |
|
Frequency response |
20 - 20KHz，±0.2 dBu |
|
Maximum input level |
+20 dBu，Balanced input |
|
Maximum output level |
+20 dBu，Balanced output |
|
THD+N |
<0.002% @ 4 dBu |
|
Channel isolation |
105 dB @ 1 KHz |
|
Sampling Rate |
48KHz |
|
Number of quantization bits |
24bit |
|
Noise floor |
-90dBu |
|
Input resistance |
20 KΩ |
|
Output impedance |
100 Ω |
|
Size |
440x208x44mm |
|
Operating temperature |
-10-50℃ |
|
Net weight |
1.9kg |
The 2in 6out Dante Speaker Management Processor is designed to handle multiple analog signal inputs and outputs, along with multiple Dante signal inputs for efficient signal distribution management in multi-speaker setups.
Key features include:
• An integrated Dante chip, paired with a high-performance DSP processing chip capable of 24-bit, 48kHz processing, and equipped with top-tier A/D and D/A converters.
• A TFT interactive LCD screen with an embedded GUI interface for swift and easy parameter adjustments.
• A customizable 512-tap FIR filter, offering stability and linear phase, with the ability to import FIR parameters from third-party software and display them via a graphical interface.
• Input channels featuring mute, gain, delay (0-180ms), a 31-band graphic equalizer, expander, and mixer.
• Output channels offering delay (0-60ms), frequency divider (with Butterworth/Bessel/Linkwich filter types and 12dB/24dB/36dB/48dB filter slopes, including FIR filters), a 15-band parametric equalizer, gain, and limiter functions.
• Professional PC control software, connectable via USB or RJ45 cable, for comprehensive software control settings.
• Software capabilities to add, route, and manage multiple online devices.
• Support for input and output channel copy functions.
• Input and output channel binding capabilities.
• Multiple scene settings that can be saved, recalled, imported, and exported.
• A panel-mounted switch for the rotary encoder selection menu, providing ease of operation.
• Dante controller functionality through the RJ45 network port for remote signal management and control routing.
• Bidirectional RS232 interface and a standard Ethernet control interface, with access to relevant protocol documents for customization.
The 2in 6out Dante Speaker Management Processor is versatile and can be applied in various settings. Here are some brief descriptions of its typical application places:
1. Live Concerts and Performances:
o The processor is ideal for managing speaker systems in large-scale concerts, theater performances, and live events.
o It allows for precise control of audio signals, ensuring high-quality sound distribution across the venue.
2. Installations and Venues:
o Suitable for permanent installations in venues such as auditoriums, theaters, and conference halls.
o Provides flexible signal routing and management, supporting various audio requirements for different events and performances.
3. Broadcast and Recording Studios:
o Utilized in broadcast studios for managing audio signals during live broadcasts or recordings.
o Offers high-precision audio processing and control, ensuring clear and accurate sound reproduction.
4. Educational Facilities:
o Ideal for schools, universities, and other educational institutions with audio requirements for lectures, performances, and events.
o Provides easy-to-use controls and intuitive interfaces, making it suitable for use by non-professional staff.
5. Houses of Worship:
o Suitable for managing audio systems in churches, synagogues, and mosques.
o Ensures clear and intelligible sound distribution, enhancing the worship experience for congregations.
6. Corporate Events and Meetings:
o Perfect for managing audio systems in corporate settings for meetings, presentations, and events.
