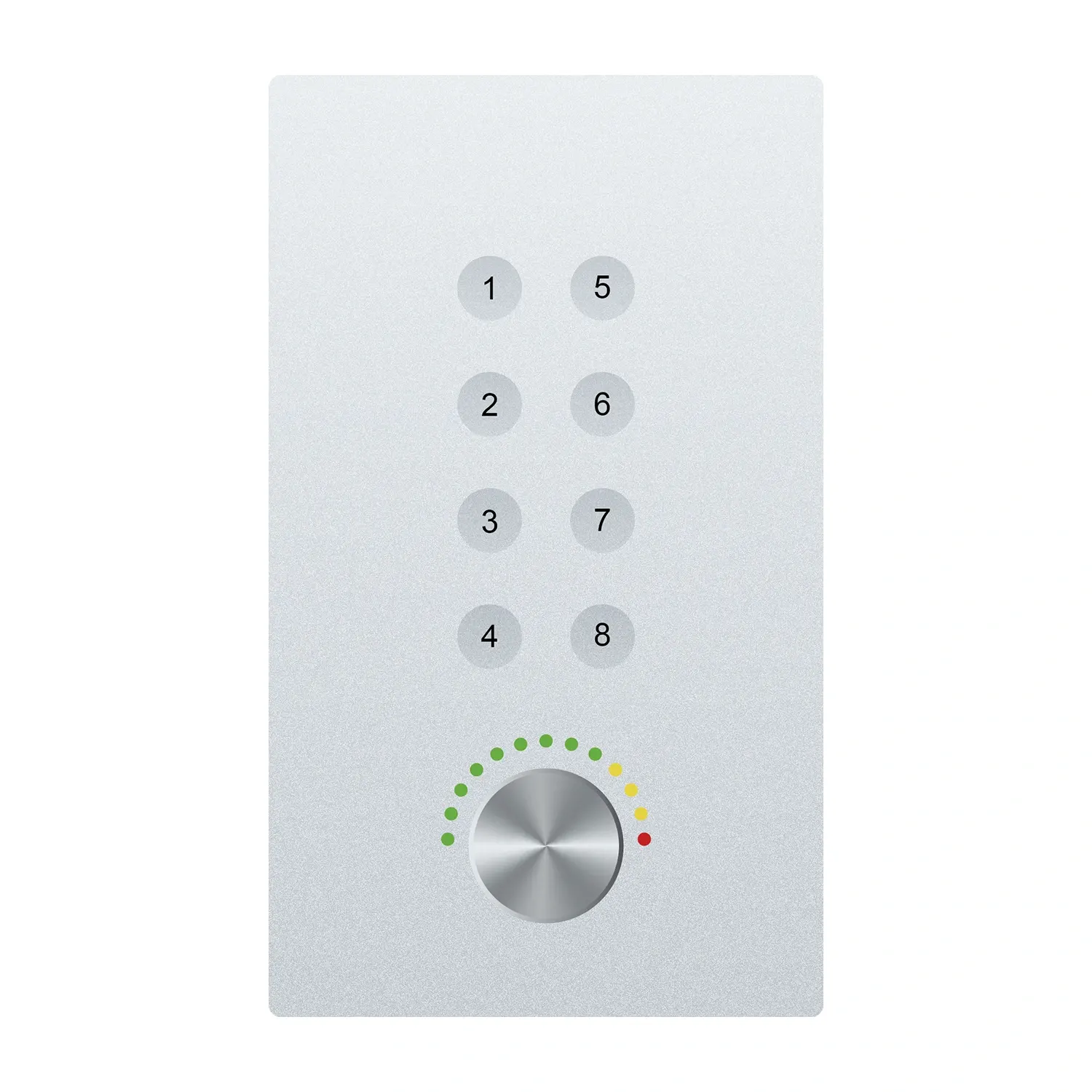

Ncp-01 DSP Control Panel is the control panel for MU DSP.

The number of keys is not less than 8, not less than one knob;

Function support user-defined;

Adopt UDP communication protocol;

PoE power supply;

Compatible with MU DSP and the same brand.

DSP Control Panel Parameters:

DSP Control Panel

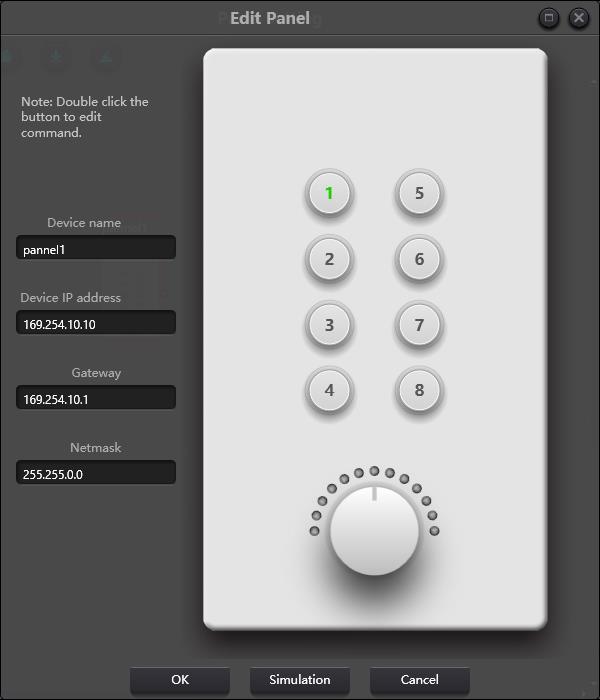

There are 8 keys and one knob on key panel. The knob is used to adjust gains, and 8 keys can be used to realize different functions through programming. There are four types of key functions, including volume adjustment, mute, preset and command. Drag an item in function area to appointed key to finish programming of the key.

Similarly, after finishing all programming, users may use the emulation button to check whether the configuration is correct.

Instructions for panel operation indicators

1. Key indicator stays on, which indicates the key is configured with mute function.

2. Key indicator keeps flashing, which indicate the key is configured with gain function. The configured knob also uses and adjusts gain of the channel. 13 indicators around the knob indicate gains.  They are on or off with gain size. All 13 indicators off indicates gain of -72dB while all on indicates gain of 12dB.

3. A sudden flash happens when pressing the key indicator indicates the key is configured with preset or command function.

Command function: The command data come from central control command. Please refer to section 5.
