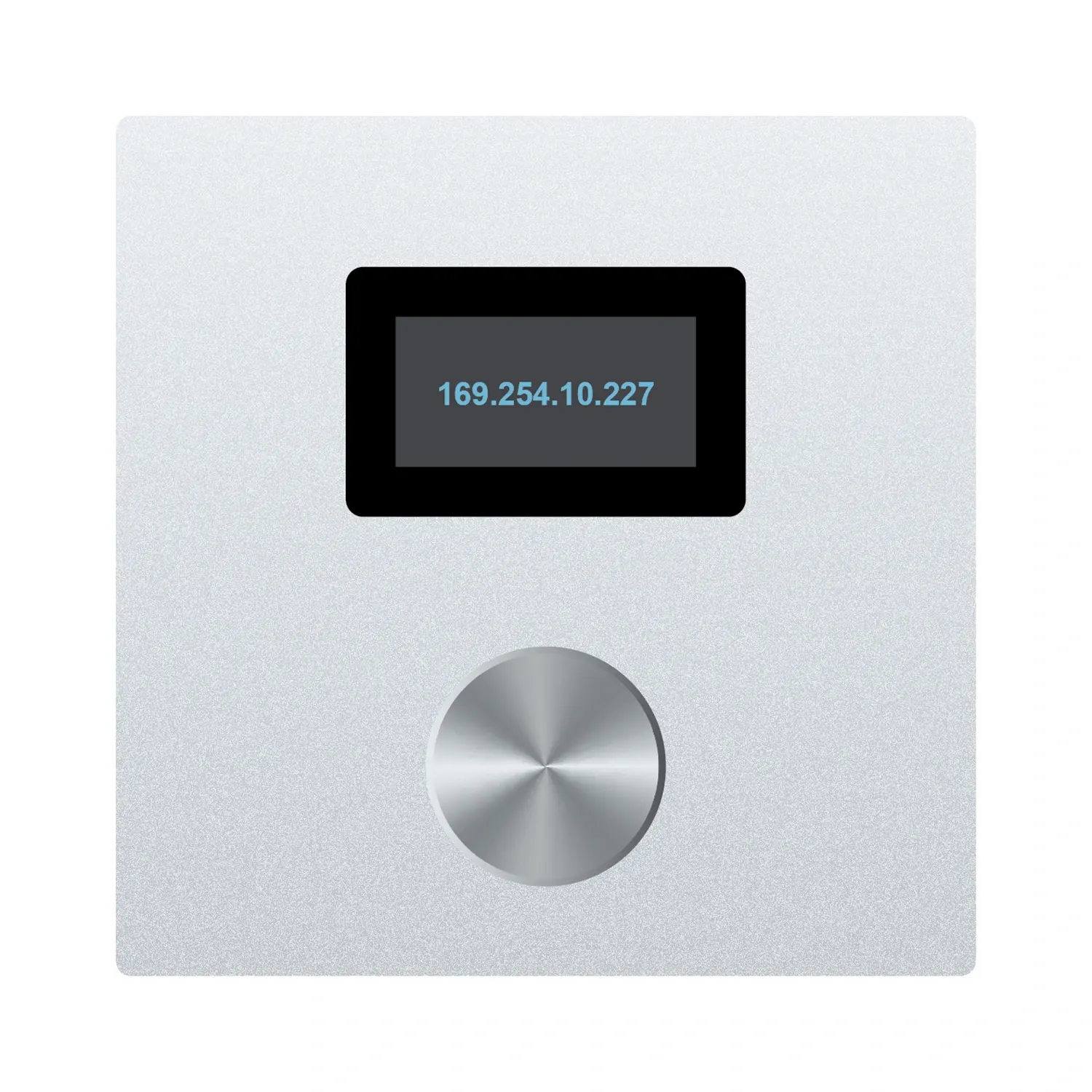

Digital Audio Matrix Control Panel

The control panel is the control terminal for the digital audio processor, providing the end user with a simple and intuitive interface, and can be installed and configured to suit the unique needs of a particular application.Users can set panel functions on the PC client software interface, and can connect multiple physical panels with DSP equipment through connections.Then by simply setting the panel, the purpose of the panel controlling the DSP device can be achieved.

NCP-03 custom editing control function, supports the control of 32 functions at most, provides functions such as gain control, mute, preset command, matrix, etc. In addition to the function of the processor itself, the sound and light of third-party equipment can also be controlled through this panel , Electric control, with simple central control function.

Digital Audio Matrix Control Panel Features

 No less than 32 function menus, no less than one knob;

 Function supports user customization;

 Using UDP communication protocol;

 PoE power supply

 Control basic audio functions or complex logic events.

 Volume/mute, preset selection, room combination and more

 Capacitive touch with OLED highlight.

 Universal installation, in-wall or surface mount.

 Control protocol: UDP

 Address setting method: TCP/IP

 Signal line length: 100 meters

 Power supply mode: PoE

 Connection port: RJ-45

 Power Consumption: <100mW

 Compatible with a full range of processors

 Color: Silver

 Material: aluminum alloy sandblasting
