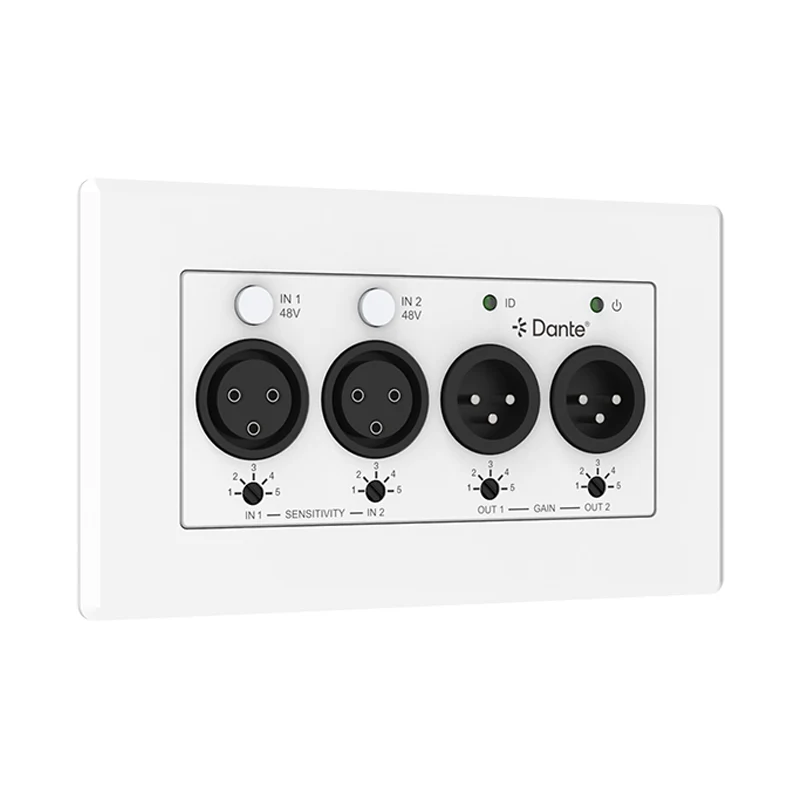

This compact 2Channel Analog XLR Dante Converter utilizes the Dante® Ultimo 2x2 platform, seamlessly bridging traditional analog audio devices to a Dante® digital network. Designed as a standard 2-GANG US wall plate, it provides flexible integration for both legacy and modern audio systems.
Analog Input: Adjustable sensitivity with 5-level precision control for optimal signal matching.
Analog Output: Configurable output gain with 5-level adjustment for balanced distribution.
Dual Power Options: Supports 12V DC local power or PoE (Power over Ethernet) for streamlined installation.
Plug-and-Play Dante® Compatibility: Certified for reliable, low-latency audio networking.

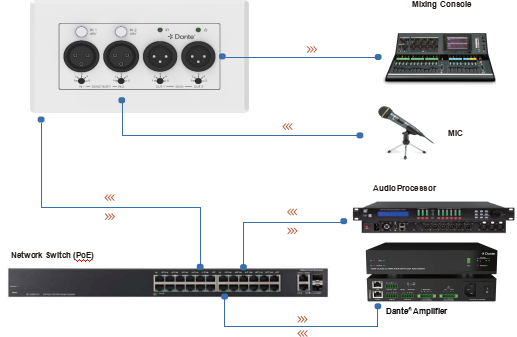

Live sound
Broadcasting
Studio recording with seamless Dante integration
Conference room
2x Inputs + 2x Outputs (Dante® in and Dante® out)
Balanced/unbalanced XLR analogue audio
MIC Phantom 48V Power and on/off via hard button
Input sensitivity and output gain control to adjust for different levels of MIC/XLR
Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
Supports AES67 RTP audio transport
PoE & local power options
Standard 2-GANG EU/UK faceplate design
① 1x 2x Input & 2x Output Analogue XLR to Dante® Converter
② 1x 2pin-3.5mm Phoenix Connector (male)
③ 1× User Manual
|

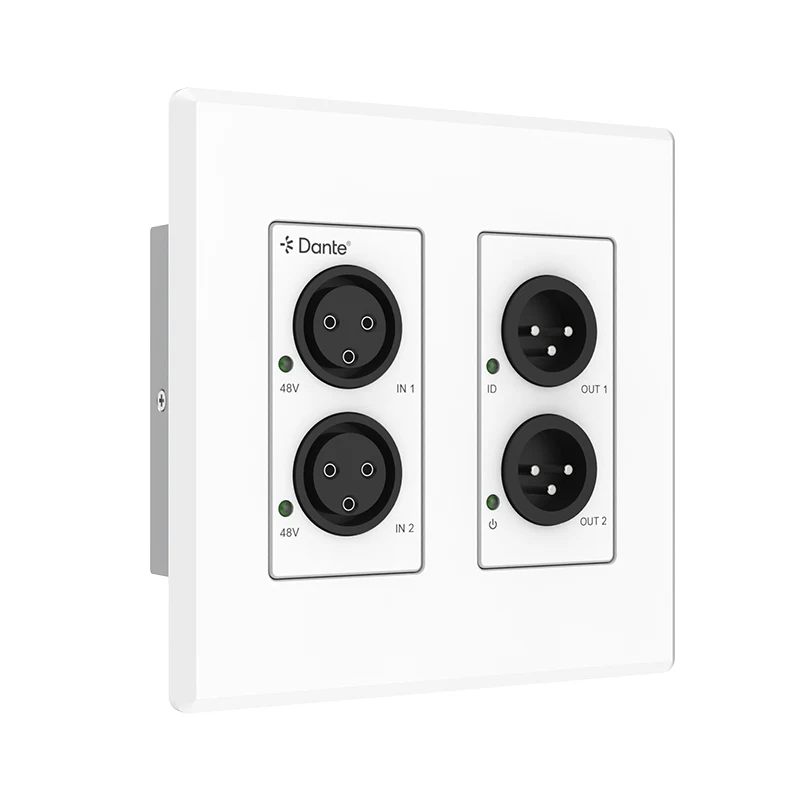

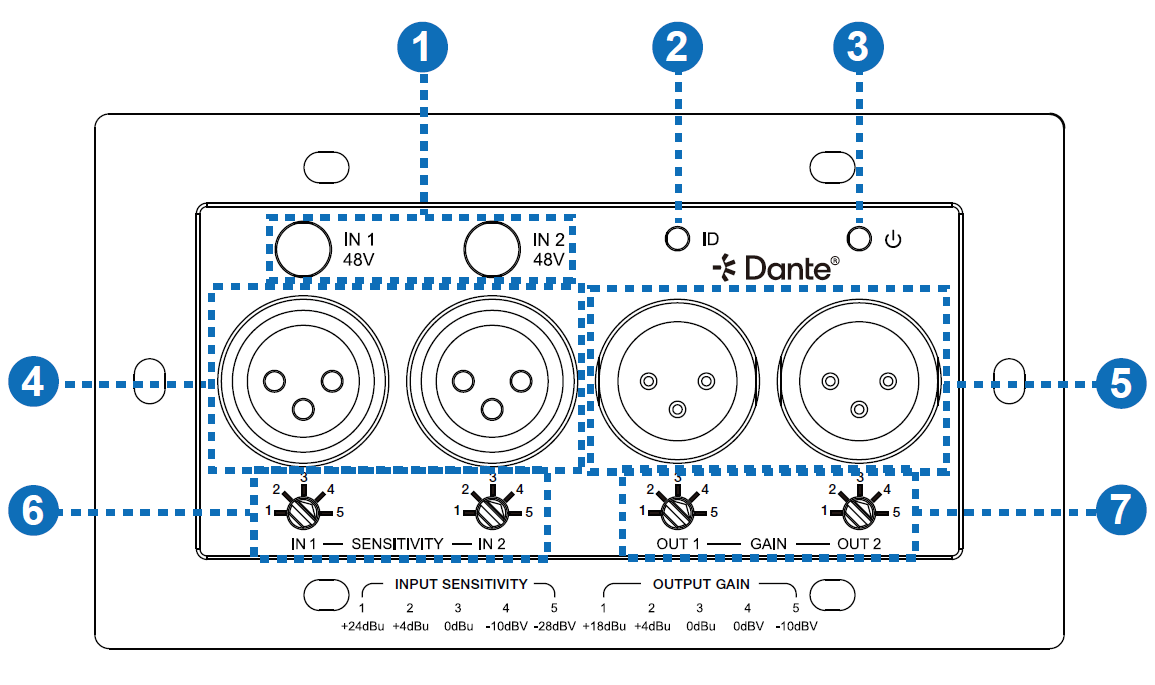

No. |
Name |
Function Description |
|
1 |
IN 1/2 48V button & backlit LED |
Press the button to turn on the 48V phantompower of the MIC audio input channel 1/2, then the corresponding backlit LEDis on. |
|
2 |
ID LED (green) |
Illuminates to assist in identification of the device via Dante Controller. |
|
3 |
Power (green) |
▪ Light on: The device is powered on by PoE or local 12VDC supply. ▪ Light off: The device is powered off. |
|
4 |
Audioinput ports |
Balanced/unbalanced XLR analogue audio input port 1/2, connected to MIC/LINE analogue audio source devices. |
|
5 |
Audiooutput ports |
Balanced/unbalanced XLR analogue audio output port 1/2, connected to analogue audio source devices. |
|
6 |
Audio IN 1/2 knob |
The 5-level sensitivity adjustment knob for analogue audio input channel 1/2. The knob arrows indicate: 1. +24dBu, 2. + 4dBu, 3. 0dBu, 4. -10dBv, 5. -28dBv. |
|
7 |
AudioOUT 1/2 knob |
The 5-level gain adjustment knob for analogue audio output channel 1/2. The knob arrows indicate: 1. +18dBu, 2. + 4dBu, 3. 0dBu, 4. 0dBv, 5. -10dBv. |
|
No. |
Name |
Function Description |
|

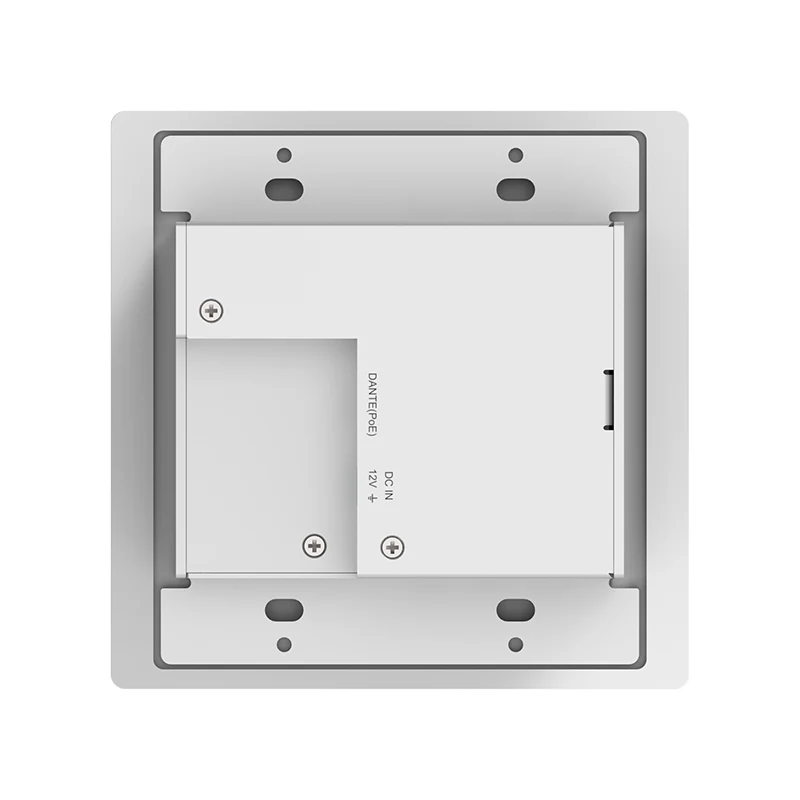

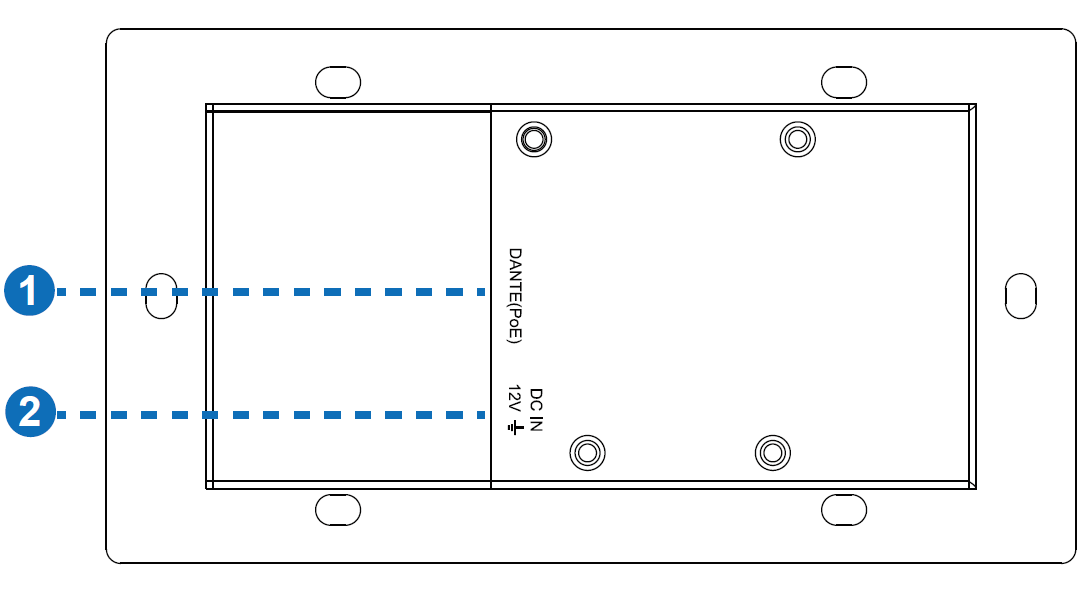

1 |
DANTE (PoE) port |
100M Dante®digital audio input/output port, connected to the Network Switch through RJ45 line, supporting PD power supply. The green LINK LED is always on after normal connection. The yellow DATA LED is flashingwhen there is data transmission. |
|
2 |
DC IN port |
12VDC/500mA power inputport. The device can be powered via two methods: ▪ Local 12VDC/500mA power supply. ▪ PoE from Network Switch. Device acts as PD mode. |
|
Connection |
|||||
|
|
Front Panel |
1x Power LED [Green Color] 1x ID LED [Green Color] 2x MIC Phantom Power 48V button with backlit LED [Green Color] 2x Audio In [3-pin XLR, Female] [LINE audio, Balanced/unbalanced connection, Max input level 24dBu] [MIC audio, Balanced/unbalanced connection, Max input level 50mVRMS, 48V phantom power] 2x Audio Out [3-pin XLR, Male, analogue audio, Balanced/ unbalanced connection, Max output level 18dBu] |
|||
|
|

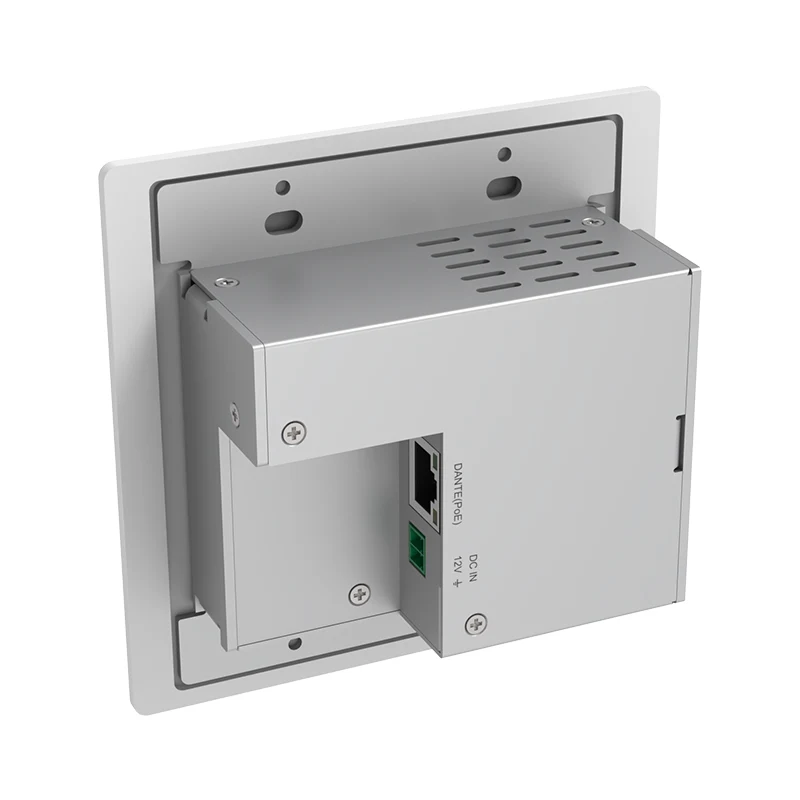

Rear Panel |
1x DANTE [RJ45 connector, PoE] [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] 1x DC/12V [2pin-3.5mm phoenix connector] [12VDC/ 500mA] |
|||
|
|
Mechanical |
||||
|
|
Housing |
Aluminum panel + Iron chassis |
|||
|
|
Color |
White panel + Silver chassis |
|||
|
|
Dimensions |
Wall plate: 136mm [W] x 75mm [H] x 40.7mm [D] Faceplate: 146mm [W] x 85mm [H] x 5mm [D] |
|||
|
|
Weight |
Without faceplate: 275g With faceplate: 347g |
|||
|
|
Power Supply |
1. PoE/PD (Class 1 IEEE 802.3af) 2. DC 12V (for the case that Switch does not support PoE) |
|||
|
|
Power Consumption |
3.6W (Max) |
|||
|
|
Operating Temperature |
32°F ~ 104°F / 0°C ~ 40°C |
|||
|
|
Storage Temperature |
-4°F ~ 140°F / -20°C ~ 60°C |
|||
|
|
Operating Humidity |
20% ~ 80% (relative humidity, non-condensing) |
|||
|
|
Storage Humidity |
10% ~ 90% (relative humidity, non-condensing) |
|||
|
Technical |
|
||||
|
Model No. |
DPX22-US |
|
|||
|
Name |
2CH Analog XLR Dante Converter |
|
|||
|
Network Bandwidth |
100M |
|
|||
|
Control Method |
Dante® Controller |
|
|||
|
Audio Latency |
Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
|
|||
|
Audio Formats |
DANTE [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] LINE In [analogue audio, Balanced/unbalanced connection, Max input level 24dBu] MIC In [analogue audio, Balanced/unbalanced connection, Max input level 50mVRMS] LINE Out [analogue audio, Balanced/unbalanced connection, Max output level 18dBu] |
|
|||
|
Audio Parameters |
Output Impedance |
300 Ohm |
|
||
|
|
Output Level (Maximum) |
18dBu (Maximum) |
|
||
|
|
Frequency Response |
20Hz to 20kHz (-/+0.5dB) |
|
||
|
|
Dynamic Range |
> 90dB@0dBu, 1kHzA-weighted |
|
||
|
|
Audio S/N Ratio |
> 90dB@0dBu, 1kHzA-weighted |
|
||
|
|
Audio THD+N |
< 0.015% at +4dBu, 1KHz |
|
||
|
Transmission Distance |
328ft/100m (CAT6/6A/7) |
|
|||
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|
|||
