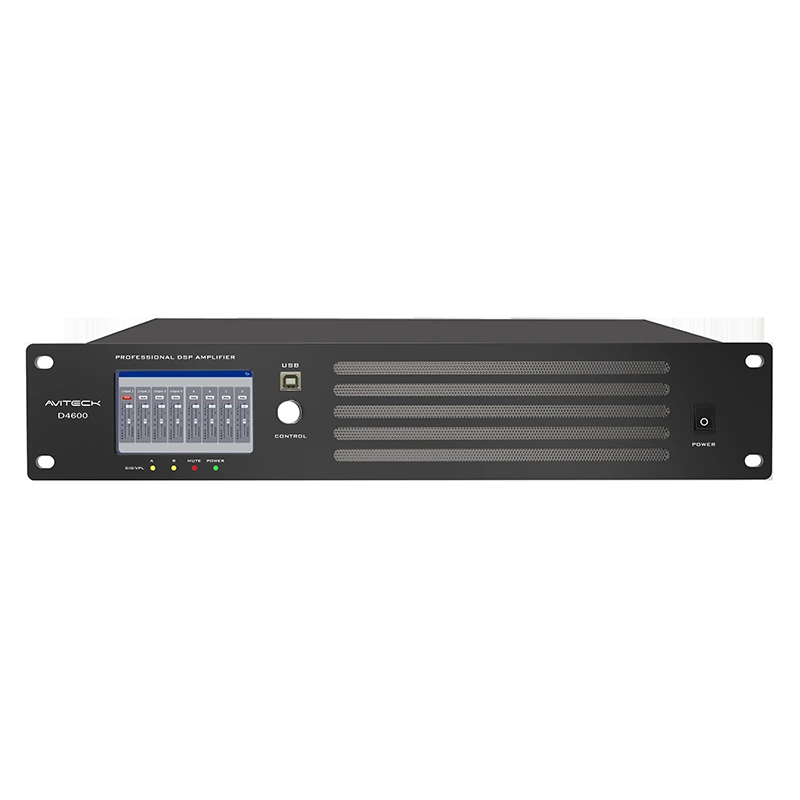

The 4CH 600W Dante DSP Amplifier incorporates a 3.97-inch color TFT touchscreen module alongside an audio processing unit. It features four channels of analog audio balanced signal inputs, which are converted into corresponding four-channel balanced outputs, with intermediate processing handled through a series of software-based digital techniques. The amplifier comes equipped with proprietary control software, offering a dual-interface approach: a PC version for use on Windows-based computers and a touchscreen version for operation directly on the amplifier's display. Synchronization between these two interfaces can be achieved via the touchscreen, Dante network protocol, or USB connection.
|
Model No. |
D4600 |
|
8Ω Stereo Power |
4x600W |
|
Level adjustment |
Front panel potentiometer, from -infinity to 0dB |
|
Frequency response |
20 - 20kHz, ±0.3dB |
|
Maximum input level |
+14 dBu, balanced input |
|
Maximum output level |
+14 dBu, balanced output |
|
THD+N |
<0.008% @ 2.2 dBu |
|
Sampling rate |
48KHz |
|
Quantization bit number |
24bit |
|
Noise floor |
-88dBu |
|
Input impedance |
20 KΩ (balanced input), 10 KΩ (unbalanced input) |
|
Output impedance |
100 Ω (balanced output), 50Ω (unbalanced output) |
|
Input sensitivity |
1.22V |
|
Input common mode rejection ratio |
>80dB |
|
Output connector |
STeakon socket |
|
USB interface |
Parameter control through TC software operation |
|
Network connection input socket |
Connect the amplifier to the network to achieve remote parameter adjustment |
|
Network connection output socket |
Connect to the network input socket of the next amplifier to achieve online operation of multiple amplifiers |
|
Signal-to-noise ratio |
>112dB |
|
Damping coefficient |
> 1000@ 8Ω |
|
Total harmonic distortion |
<0.1% (20Hz-20 kHz 1W) |
|
Frequency response |
20Hz-34KHz (+0/-0.3dB, 1W/8Ω) |
|
Cooling method |
Stepless speed adjustment fan, airflow from front to back |
|
Amplifier protection method |
Short circuit, open circuit, DC voltage, overheating, overvoltage, radio frequency, ultra-low frequency protection |
|
Power supply specification |
AC voltage 180-240VC (90V-120VAC) 50-60Hz |
|
Chassis size (height*width*length) |
88mmX490mmX438mm |
|
Packaging size (height*width*length) |
155mmX600mm×550mm |
|
Net weight |
13.5kg |
|
Gross weight |
16.5kg |
• 4CH 600W Dante DSP Amplifier Equipped with a high-performance ADI DST processor, featuring high-fidelity, low-noise 24-bit A/D and D/A conversion capabilities.
• Integrates an embedded Dante network transmission module, capable of supporting 4-channel Dante signal input, 4-channel analog signal input, and delivering 4 sets of digital power amplifier outputs.
• Offers USB and RJ45 interfaces for easy connection to computers.
• Each output channel provides comprehensive audio customization options, including 8-band parametric equalization, frequency division, delay, limiter, gain control, and polarity adjustment.
• Utilizes a high-efficiency, high-power-density Class D amplifier with a complete protection system (including overcurrent, overheating, and high-frequency protection).
• 4CH 600W Dante DSP Amplifier also Features a 3.97-inch touchscreen with Chinese and English menu options, displaying comprehensive and intuitive information for user operation.
This 4CH 600W Dante DSP Amplifier is designed for modern audio systems and has a powerful output power of 600 watts on four channels. It integrates Dante network technology, allowing audio signals to be transmitted efficiently and stably in complex network environments. At the same time, the built-in DSP (digital signal processing) function provides fine adjustment and optimization for audio signals to ensure clear and pure sound quality. Whether it is a conference room, theater or concert hall, this amplifier can meet the audio needs of various occasions
