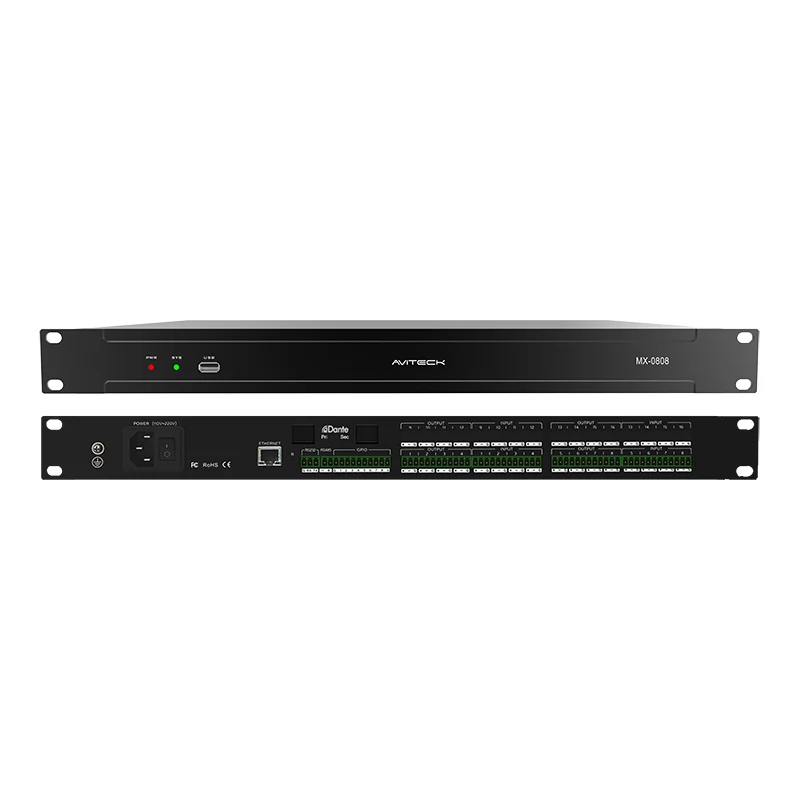

8 Channel Digital Audio Matrix is an audio processing device that supports 8-channel audio signal input and output. It can route the signal of any input channel to any output channel and has functions such as gain and polarity control. It is widely used in conference sound reinforcement, music production, film and television sound design and other occasions.
|
Model No. |
MX-0808 |
|
Main Specification |
|
|
DSP Chip |
Ti 456MHz FLOPS Dual-core |
|
USB2.0 recording/playback |
Support |
|
Central Control Instruction Set Generator |
Support |
|
Input Processing |
Pre-amplification, signal generator, expander, compressor, 5-band parametric equalization, automatic gain, AM automatic mixing function, AFS,AEC,ANC |
|
Output Processing |
Speaker manager (31-band graphic equalizer, delay, crossover, limiter, high and low channel filters) |
|
Matrix mixing |
Input and output signal matrix mixing, mixing component control |
|
Automatic camera tracking function |
Support |
|
Scene preset |
100 groups of custom settings |
|
Port configuration |
|
|
Analog input channel |
8 |
|
Analog output channel |
8 |
|
Ethernet control port |
1 |
|
RS232、RS485 |
RS232：1；RS485:1 |
|
GPIO |
8 |
|
Front stage gain |
51dB(each level 3dB，total 17 level) |
|
Balanced/unbalanced, input/output support |
Support |
|
MIC\LINE, input/output support |
Support |
|
Independent 48V phantom power switch for each channel |
Support |
|
DSP Processing |
|
|
AM、AGC、AFS、AEC |
√ |
|
Specification |
|
|
Sampling Rate |
48k@24bit |
|
Phantom power |
48V |
|
Frequency response |
20Hz～20K Hz，±0.3dB |
|
THD+N |
≤0.005% @1k，4dBu |
|
Working power |
AC110V-220V,50Hz/60Hz |
|
Noise floor |
-90dBu |
|
Size |
482*258*45(mm) |
1.Windows Platform client software
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.
2.Web Control
The digital audio processor comes with B/S architecture server, which is accessed through web browser, not only realizing channel control and scene selection, but also directly providing download links of PC client and platform components.
3.IOS/IPAD,Andorid control
Installed on tablet and mobile phone APP client, sedate and simple design style, panoramic function menu, with fast operation bar, It can be very convenient for the processor to carry out various operations. Everything just to give you a better user experience.
