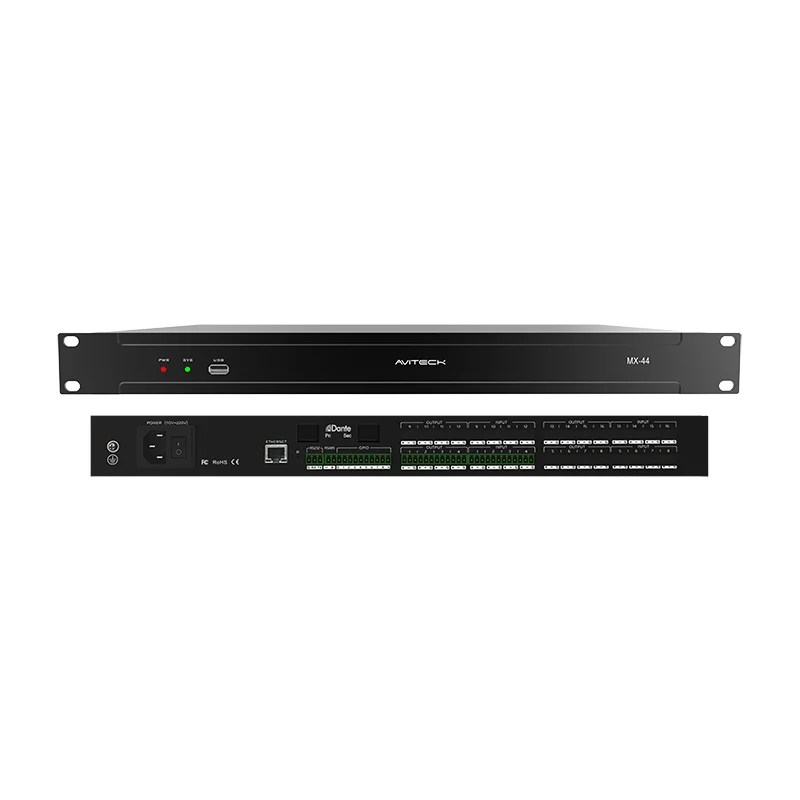

4 Channel Digital Audio Matrix

In the field of modern audio processing, 4 Channel Digital Audio Matrix is an important technical means and is widely used in various audio systems. It can effectively manage and distribute audio signals and provide users with high-quality audio experience.

4 Channel Digital Audio Matrix Parameter:

4 Channel Digital Audio Matrix Feature：

1.Comprehensive matrix mixing function, 24bit/48KHz sampling frequency, high-performance A/D D/A converter and 32-bit floating-point DSP processor;

2.DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing function (AM), also has mixing component control function, and has feedback cancellation (AFS), echo cancellation (AEC), noise cancellation module ( ANC);

3.Input each channel: preamplifier, signal generator, expander, compressor, 5-band parametric equalization;

4.Output each channel: 31-segment graphic equalizer, delayer, frequency divider, limiter;

5.Test signal generator, sine wave, pink noise, white noise, frequency and level are optional;

6.Input phase switch, mute switch, phantom power switch; Output mute switch and phase switch for each channel;

7.Central control code is randomly generated; power-off automatic protection memory function; one-button reset function;

8.Channel copy, paste, joint control functions;

9.The same host allows 10 users to manage; Device name can be modified;

10.Editable preset mode, new, delete, modify, one-key initialization, preset mode can be stored to the computer and one-key recovery;

11.The input and output channels can independently set the color, and one-key recovery switch;

12.With camera tracking function, it can independently adjust the preset position of a camera;

13. 4 Channel Digital Audio Matrix convenient and fast control: built-in webpage controller, which can be quickly operated on Windows, Android, iOS and other platforms;

14. Internet multi-purpose data transmission and control port, which can support real-time management of single and multiple devices;

15. Intuitive image, concise and easy-to-understand graphical software control interface, can work in XP/Windows7, 8, 10 and other system environments, bringing customers fast and real-time operating experience;

16. The device does not need a CD, and it has its own installation software. One device is for one software version, which solves the troubles caused by the loss of the installation CD and the confusion of multiple software versions;

17. Expandable USB interface, supports USB music playback and recording functions; USB sound card function is optional;

18. 4 Channel Digital Audio Matrix support Central command control: Configure bidirectional RS232 interface, RS485 interface, standard Ethernet control interface, 8-channel programmable GPIO control interface (customizable input and output);

19. Support 8~100 groups of scene preset functions;

20. Channel:4in4out，8in 8out,12in12out,16in 16out
