4CH DSP Amplifier With Wireless Microphone

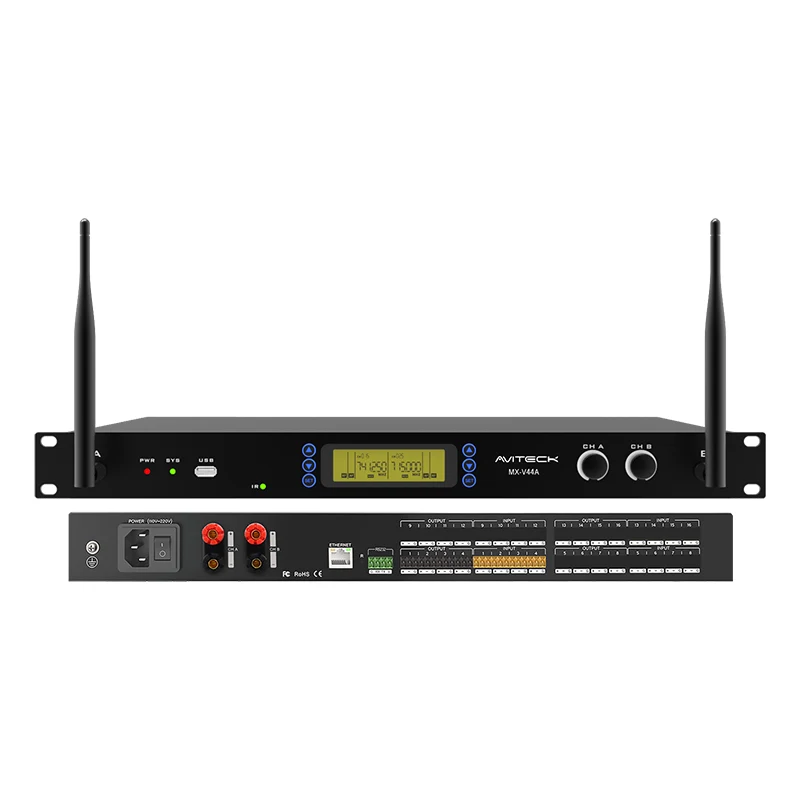

MX-V44A is 4channel professional digital audio processor. It integrates DSP, dual-channel 150W power amplifier and dual-channel UHF wireless receiving mode as one. The microphone can be equipped with wireless handheld, wireless lavalier, and microphone for use together. The integrated integration makes the operation easier and simpler, 4CH DSP Amplifier With Wireless Microphone supports RS232 control interface. The latest Feedback Cancellation (AFC), Echo Cancellation (AEC), and Noise Cancellation (ANC) algorithms are optional.

Product Features:

1.4CH DSP Amp with WM, matrix mixing, 24bit/48KHz, high-perf A/D/A, 32-bit DSP.

2.DSP processing, auto mixing console, feedback, echo, noise cancellation; max echo 512ms, noise suppression, voice distortion-free; suitable for all sizes of conference rooms.

3.Input per channel: preamp, signal gen., expander, compressor, 5-band EQ.

4.Output per channel: 31-band graphic EQ, delayer, freq. divider, limiter.

5.Integrated WM host, audio processing, power amp output.

6.Ducker dodger, SPL auto noise comp.

7.Set Chinese name per channel.

8.Test signal gen.: sine, pink, white noise, freq., level optional.

9.Input: phase, mute, phantom power switches.

10.Output: mute, phase switches per channel.

11.Switch between Chinese, Traditional, English.

12.One-click display all modules.

13.Store Chinese help docs, software.

14.Random control code, auto-protect memory, reset function.

15.Copy, paste, joint control channels.

16.10 users manage per host, Chinese usernames allowed.

17.Modify device name, Chinese allowed.

18.Editable preset mode, store/recover on computer.

19.Set input/output channel color, one-key recovery.

20.Built-in camera tracking, compatible with VISCA, PELCO-D, PELCO-P.

21.Webpage control on Windows, Android, iOS.

22.Enternet port for real-time device management.

23.Intuitive graphical control interface.

24.No CD needed, device-specific software.

25.B/S server for channel control, scene selection, direct download links.

26.Expandable USB for device upgrade, music playback, recording.

27.Bidirectional RS232, Ethernet control interface.

28.Support udp, http protocols. Open protocol docs.

29.Support 8~100 scene preset functions.

30.Graphical software interface, compatible with XP/Windows7, 8, 10.

4CH DSP Amplifier With Wireless Microphone Parameters:

4CH DSP Amplifier With Wireless Microphone application:

The 4CH DSP Amplifier With Wireless Microphone is a multifaceted and potent device tailored for diverse audio processing requirements. Here's an overview of its primary applications:

1.Live Performances: Perfect for concerts, theater, and other live events demanding clear and powerful sound. The 4-channel DSP and 2x150W amplifier ensure optimal audio control and projection.

2.Commercial Spaces: Ideal for restaurants, bars, and clubs, seamlessly integrating background music and sound effects to enhance the ambiance. The DSP's advanced capabilities allow for customized audio tuning.

3.Home Theater: Enhances the audio experience by allowing independent speaker control, creating an immersive soundscape.

4.Broadcast & Recording Studios: Provides high-quality audio processing and amplification, ensuring professional sound clarity and balance.

5.Public Address Systems: Ideal for schools, universities, and public buildings, ensuring clear and effective communication through precise audio control.

6.Educational Settings: Suitable for classrooms, facilitating clear audio for teaching and learning.

7.Conferencing: Perfect for conference systems, ensuring clear and professional audio for meetings and presentations.
