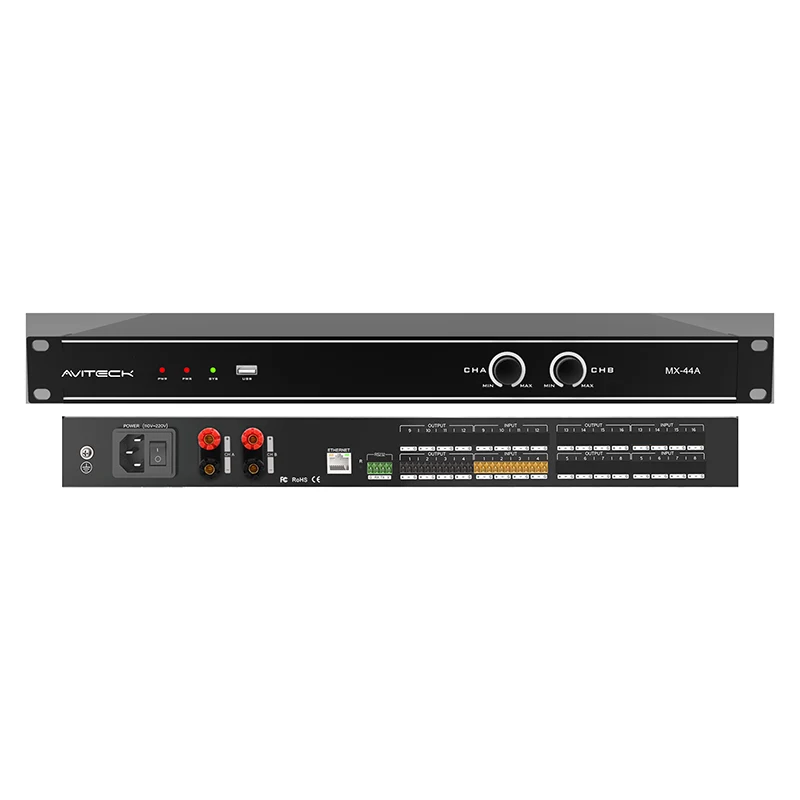

4CH DSP With 2x150W Amplifier

The 4CH DSP With 2x150W Amplifier digital audio processor is an integrated dual-channel 150W digital audio processing device. It adopts advanced DSP processing technology, has a new algorithm of automatic mixing, feedback elimination, etc., and has a built-in two-channel digital power amplifier module, which has a more significant energy efficiency ratio, and also has a good performance in overload protection and distortion control. Various practical problems, in conjunction with other audio products of the company, can meet the application needs of more scenarios.

4CH DSP With 2x150W Amplifier Features:

1.4CH DSP With 2x150W Amplifier digital audio processor Comprehensive matrix mixing function, 24bit/48KHz sampling frequency, high-performance A/D D/A converter and 32-bit floating-point DSP processor;

2.4CH DSP With 2x150W Amplifier digital audio processor support DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing functions, also has mixing component control function, and has feedback cancellation, echo cancellation, and noise cancellation modules;

3.Input each channel: preamplifier, signal generator, expander, compressor, 5-band parametric equalization;

4.Output each channel: 31-segment graphic equalizer, delayer, frequency divider, limiter;

5.The Chinese name can be set independently for each channel;

6.Test signal generator, sine wave, pink noise, white noise, optional frequency and level;

7.Input phase switch, mute switch, phantom power switch;

8.Output mute switch and phase switch for each channel;

9.Flexible switch between Chinese, Traditional and English;

10.One-click display of all functional modules;

11.Random storage of Chinese help documents and software;

12.Central control code is randomly generated; power-off automatic protection memory function; one-button reset function;

13.Channel copy, paste, and joint control functions;

14.The same host allows 10 users to manage, and the user name can be set to Chinese

15.The device name can be modified, and Chinese names are allowed;

16.Editable preset mode, new, delete, modify, one-key initialization, preset mode can be stored to the computer and one-key recovery;

17.The input and output channels can independently set the color, and one-key recovery switch;

18.With camera tracking function, it can independently adjust the preset position of a camera;

19.Convenient and fast webpage control: built-in webpage controller, which can be quickly operated on Windows, Android, iOS and other platforms;

20.Enternet multi-purpose data transmission and control port, which can support real-time management of single and multiple devices;

21.. Intuitive image, simple and easy-to-understand graphical software control interface, bringing customers fast and real-time operation experience;

22.The device does not need a CD, and it comes with installation software. One device corresponds to one software version, which solves the troubles caused by the loss of the installation CD and the confusion of multiple software versions;

23.The expandable USB interface can not only realize the function of equipment upgrade, but also the function of USB music playback and recording;

24.Configure two-way RS232 interface standard Ethernet control interface

25.Support 8~100 groups of scene preset functions;

4CH DSP With 2x150W Amplifier Parameters:

4CH DSP With 2x150W Amplifier Application:

1.Live Performances and Events: Ideal for use in concerts, theater performances, and other live events, where clear and powerful sound is crucial. The 4-channel DSP allows for precise control over multiple audio sources, while the 2x150W amplifier ensures that the sound is projected with sufficient volume and clarity.

2.Installation and Integration: Suitable for installation in commercial spaces such as restaurants, bars, and clubs, where background music and sound effects need to be seamlessly integrated into the ambiance. The DSP's advanced processing capabilities enable fine-tuning of the audio to match the specific needs of the venue.

3.Home Theater Systems: Perfect for enhancing the audio experience in home theater setups. The 4-channel DSP allows for independent control of different speakers, creating a more immersive and realistic soundscape.

4.Broadcasting and Recording Studios: In broadcasting studios and recording environments, the 4CH DSP With 2x150W Amplifier provides high-quality audio processing and amplification, ensuring that the sound is clear, balanced, and professional.

5.Public Address Systems: Ideal for use in schools, universities, and other public buildings where clear and effective communication is essential. The DSP's processing capabilities enable precise control over the audio, ensuring that announcements and messages are heard clearly by everyone.
