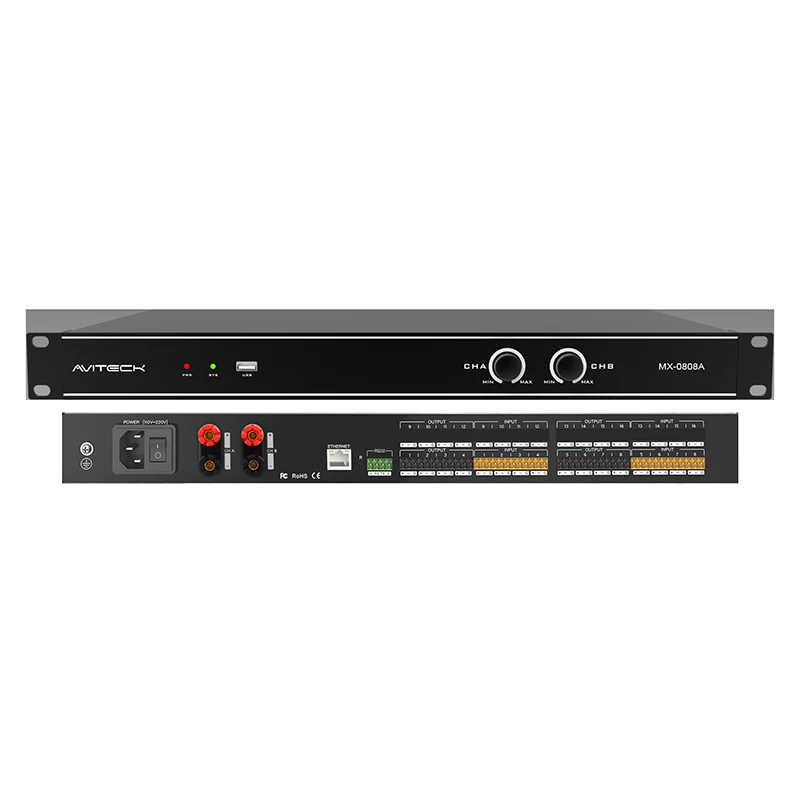

8CH DSP With 2x150W Amplifier

The 8CH DSP With 2x150W Amplifier digital audio processor is a comprehensive dual-channel audio processing unit, each capable of delivering 150W of power. Leveraging cutting-edge DSP technology, it features an advanced algorithm for automatic mixing and feedback suppression, ensuring superior sound quality. Integrated with a two-channel digital power amplifier module, this processor boasts an impressive energy efficiency ratio and robust performance in overload protection and distortion minimization. When paired with other audio products from our company, it addresses a wide range of practical challenges and fulfills the audio needs of diverse scenarios.

8CH DSP With 2x150W Amplifier Features:

8-Channel DSP with 2x150W Amplifier: Features a comprehensive matrix mixing function, operating at a 24bit/48KHz sampling rate. It is equipped with a high-performance A/D and D/A converter, along with a 32-bit floating-point DSP processor for enhanced audio processing.

DSP Audio Processing Capabilities: The 8CH DSP With 2x150W Amplifier digital audio processor Supports DSP-based audio processing, incorporating an automatic mixing console with mixing and auto-mixing functionalities. It also includes mixing component control, as well as feedback, echo, and noise cancellation modules.

Input Channel Adjustments: Each input channel offers preamplification, signal generation, expansion, compression, and 5-band parametric equalization for precise sound shaping.

Output Channel Adjustments: Each output channel features a 31-band graphic equalizer, delay, frequency divider, and limiter for detailed output control.

Customizable Channel Names: Allows independent setting of Chinese names for each channel for easy identification.

Test Signal Generator: Provides sine wave, pink noise, and white noise options with adjustable frequency and level for testing and calibration.

Input Control Switches: Includes phase, mute, and phantom power switches for input channels.

Output Control Switches: Offers mute and phase switches for each output channel.

Language Options: Supports flexible switching between Chinese, Traditional Chinese, and English for user convenience.

Quick Access to Modules: One-click display of all functional modules for easy navigation.

Help Documents and Software Storage: Randomly stores Chinese help documents and software for on-demand access.

Central Control and Memory: Features a randomly generated central control code, power-off automatic protection memory, and one-button reset.

Channel Management: Offers channel copy, paste, and joint control functions for efficient management.

Multi-User Management: Allows up to 10 users to manage the device, with customizable Chinese usernames.

Custom Device Names: Permits modification of device names, including Chinese characters.

Editable Preset Modes: Supports new, delete, modify, and one-key initialization of preset modes, which can be stored to a computer and restored with one click.

Color Customization: Allows independent setting of input and output channel colors, with a one-key recovery switch.

Camera Tracking: Incorporates a camera tracking function with adjustable preset positions.

Webpage Control: Provides a built-in webpage controller for quick operation on Windows, Android, iOS, and other platforms.

Ethernet Port: Features an Ethernet multi-purpose data transmission and control port supporting real-time management of single and multiple devices.

Intuitive Software Interface: Offers a graphical software control interface that is intuitive and easy to understand, providing customers with a fast and real-time operation experience.

CD-Free Installation: Comes with installation software, with one device corresponding to one software version, eliminating the need for a CD and confusion from multiple software versions.

Expandable USB Interface: Supports equipment upgrades, USB music playback, and recording functionalities.

Standard Interfaces: Configured with a two-way RS232 interface and a standard Ethernet control interface.

Scene Preset Functions: Supports 8 to 100 groups of scene preset functions for versatile application scenarios.

8CH DSP With 2x150W Amplifier Parameters:

8CH DSP With 2x150W Amplifier Application:

The 8CH DSP With 2x150W Amplifier digital audio processor is a versatile and powerful tool designed to meet the audio processing needs of various scenarios. Such as Live Performances and Events, Broadcasting and Recording Studios, Public Address Systems,classroom,conference room.
