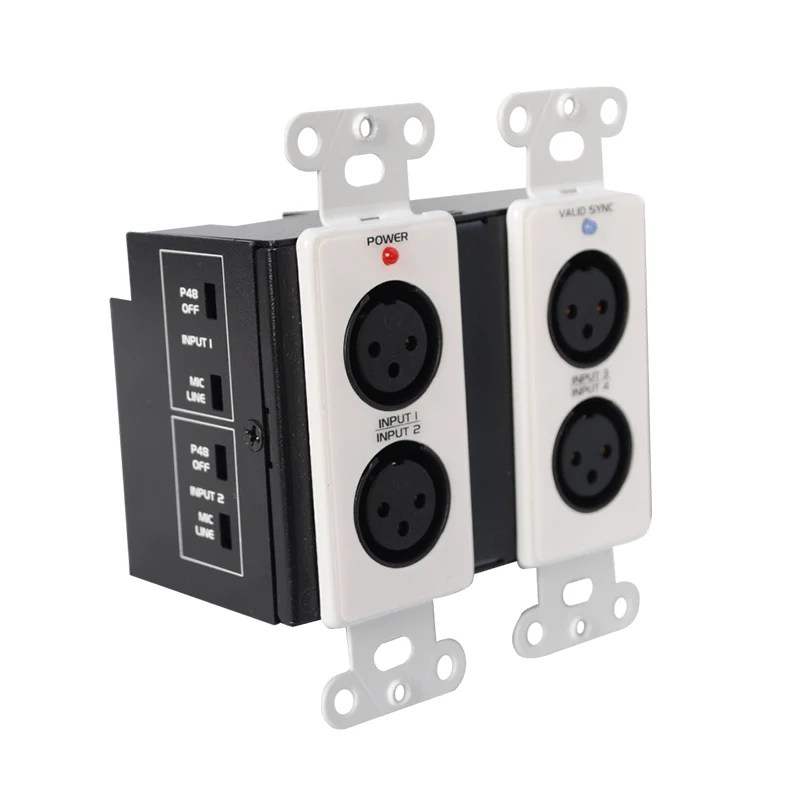

The Dante Interface 4 x Mic is a high-performance Dante interface box that seamlessly converts two Dante channels to analog audio outputs and four analog audio inputs to the Dante network. Designed to fit a US-style double-gang back box, it offers easy installation and integration.
This Dante Interface also Simply connect the RJ45 port to an Ethernet switch using a standard Cat5 cable, then use “Dante Controller” to route low-latency signals to and from other devices on the same Dante network. This ensures efficient and reliable audio transmission across your setup.
We also can provide a serials Dante audio solution,Such as Dante DSP,Dante Interface,Dante microphone,Dante speaker.
1.Support Four Mic/Line XLR Inputs on Front Panel
2.Converts Mic or Line Audio Signals to Dante Network
3.Mic or Line is Selectable for Each XLR Input
4.Switchable 48V Phantom Power for Each Mic XLR Input
5.Adjustable Mic/LIne Gain from -20 dB to +20dB for Each XLR input
6.Two Audio Signal Outputs from Dante Network on Rear Panel
7.Balanced or Unbalanced Signal Outputs
8.High Resolution 24 Bit for DAC and ADC
9.LEDs Indicate the Status for Power and Network Sync on Front Panel
10.Power over Ethernet (PoE) or 24VDC power supply
11.Provides High Quality of Preamplifier for Microphones
12.Excellent Audio quality with low noise
|
Mic/Line Inputs to Dante Network |
|
|
Input: |
XLR (female) x 4 |
|
Gain Range |
-20 ~ +20 |
|
Input Impedance |
> 2.5 k_ (MIC); > 5 k_ (LINE) |
|
Phantom Power |
48 VDC, switchable |
|
Frequency Response |
20 Hz to 20 kHz (± 0.5 dB) |
|
THD+N |
< 0.1% |
|
Noise below +4 dBu |
< -70 dB |
|
CMRR |
> 65 dB (50 Hz to 120 Hz) |
|
Dante Network to Line Outputs |
|
|
Outputs |
2, Balanced/Unbalanced, detachable terminal block |
|
Output Level |
+4 dBu (nominal) balanced; -10 dBV (nominal) unbalanced, selectable |
|
Output Voltage |
+20dBu (@ 0dB output gain) |
|
Output Impedance |
150_balanced; 75_unbalanced |
|
Frequency Response |
20 Hz to 20 kHz (± 0.5 dB) |
|
THD+N |
< 0.1% |
|
Noise |
<-80dB |
|
Crosstalk |
< 85 dB (20 Hz to 20 kHz |
|
Dante channel |
|
|
Transmitters/Receivers |
2/2 |
|
Transmission rate |
100 Mbps |
|
Resolution |
16/24/32 Bit |
|
Sampling rate |
44.1 kHz, 48 kHz. |
|
Dante interface |
RJ45 jack |
|
Power Connections |
2 Pin Euro Terminal |
|
Power Requirement |
24 Vdc @ 180 mA plus connected phantom loads, or PoE |
|
Dimension |
116mm(W)× 114.5mm(H)× 53.1mm(D) |
|
Weight: 0.36 Kgs – DWP22L-US |
370g |

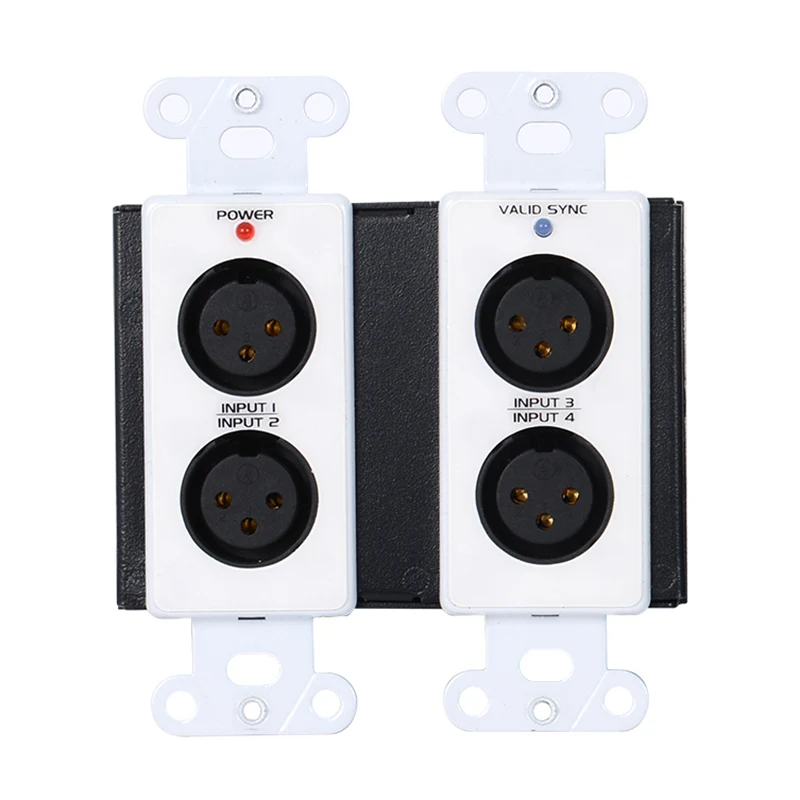

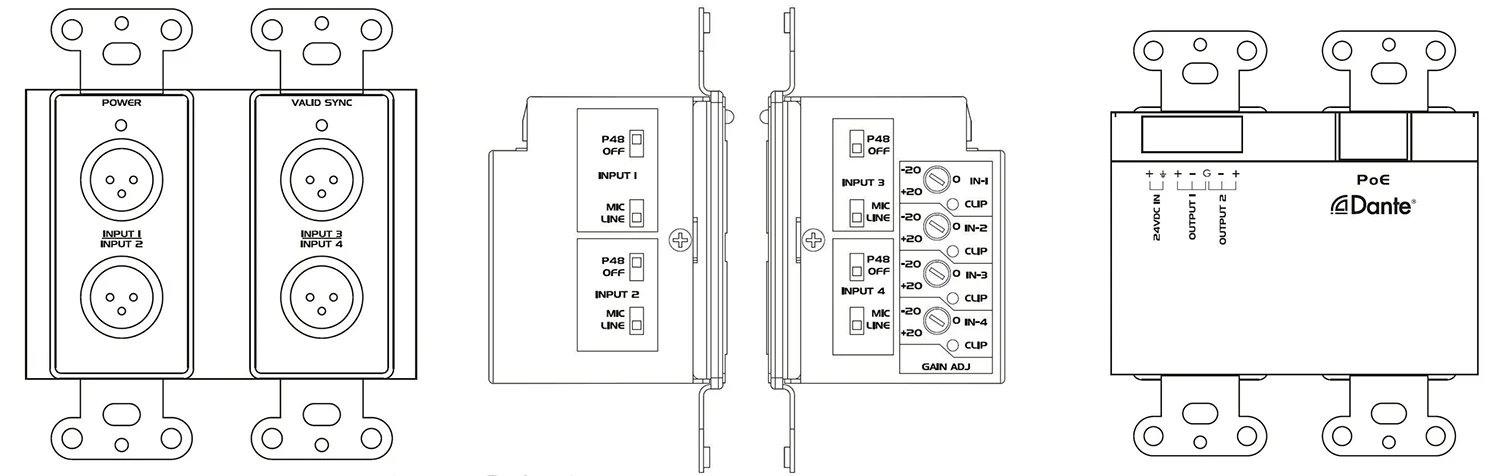

1. XLR inputs, accept MIC or Line audio signal.
2. Power LED indicator.
3. SYNC LED indicates the status of Dante network.
4. XLR Input Selector
Line: Accepts Balanced or Unbalanced Line source.
MIC: Accepts the signal of Dynamic or Condenser microphone.
P48V: Provides 48V Phantom power when connecting Condenser microphone.
5. Input Gain Controls: Adjust the Gain level of input signal on each input channel.
6. Signal CLIP LED on each input channel
7. Euro Terminal Outputs: Converts two Dante channels to analogue Line outputs.
8. RJ45 port: Using Cat5 cable to connect to Dante network.
Note: When using PoE enabled network switch, DWP42L could be powered and operation from PoE.
9. Power: Connect DC 24V to 2P terminal block or DC input jack.
Note: If DC 24V and PoE are both present to DWP42L the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.
The Dante Interface (4 x Mic/Line Inputs, 2 x Line Outputs) is a versatile audio networking solution designed for seamless integration in professional audio setups. It enables bidirectional conversion between analog and Dante digital audio,Pls refer to below
1. Live Sound & Event Production
Connect microphones, instruments, or line-level sources (e.g., mixers, playback devices) to a Dante network for low-latency distribution across multiple stages or zones.
Send processed audio from a Dante-enabled mixer to analog amplifiers, monitors, or recording devices.
2. Conference & AV Systems
Integrate analog microphones (e.g., podium mics, panel mics) into a Dante-based conferencing system for flexible routing and processing.
Output Dante audio feeds to analog speakers or legacy amplifiers in meeting rooms, auditoriums, or lecture halls.
3. Broadcast & Recording Studios
Digitize analog sources (mics, instruments, outboard gear) and transmit them over Dante for recording, streaming, or broadcast.
Send Dante feeds (e.g., DAW outputs, intercom signals) to analog monitors, headphones, or processing equipment.
4. House of Worship & Performance Venues
Capture choir mics, instruments, or spoken word and distribute them via Dante to FOH mixers, recording systems, or live streams.
Route Dante playback tracks or announcements to analog zone speakers or delay lines.
5. Installed Sound & Hospitality
Connect background music (BGM) systems, paging mics, or analog sources to a Dante network for centralized control.
Output networked audio (e.g., program feeds, emergency alerts) to analog amplifiers in hotels, restaurants, or retail spaces.
Plug-and-play Dante integration – No additional drivers required.
Ultra-low latency – Ideal for real-time applications.
Scalable & flexible routing – Manage audio via Dante Controller.
Compact & rack-mountable – Fits standard US double-gang back boxes.
