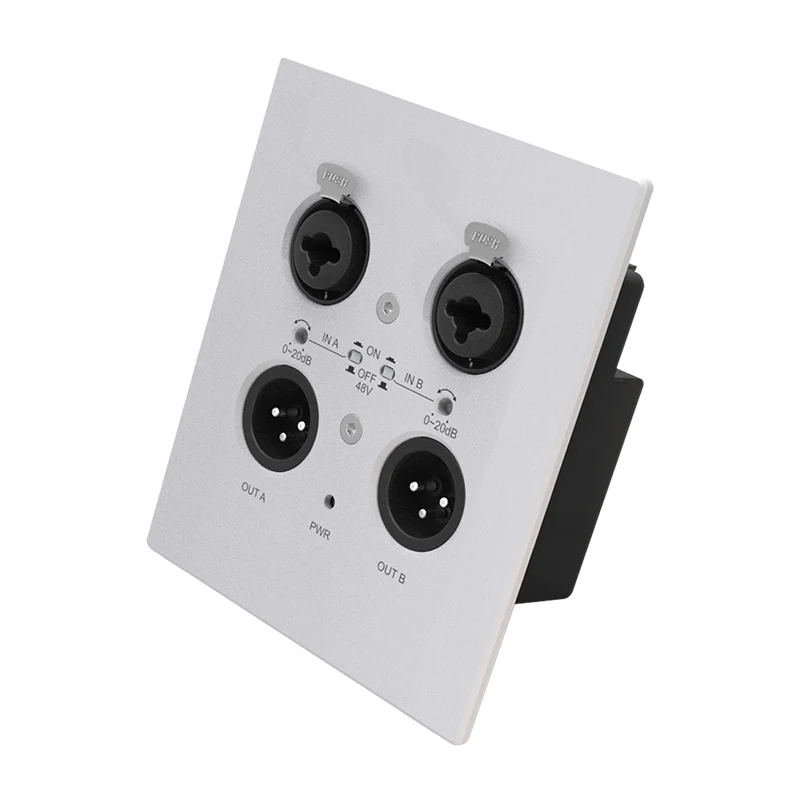

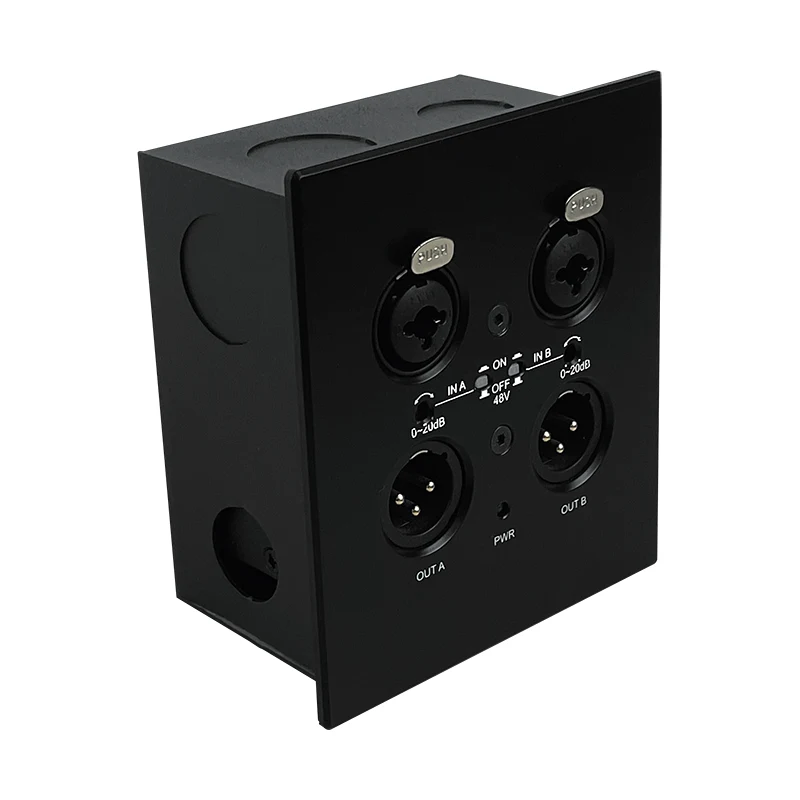

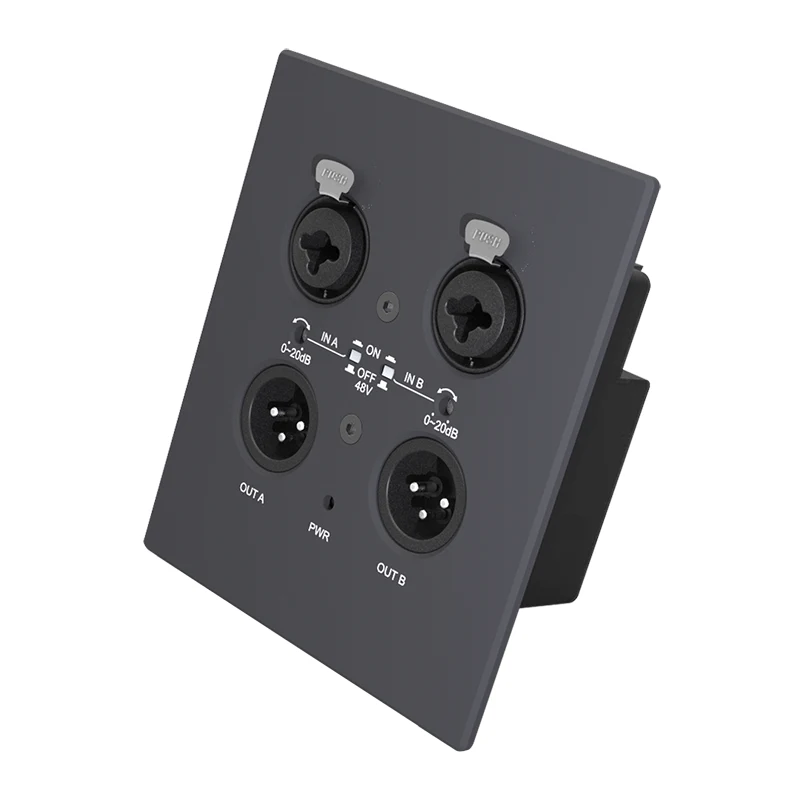

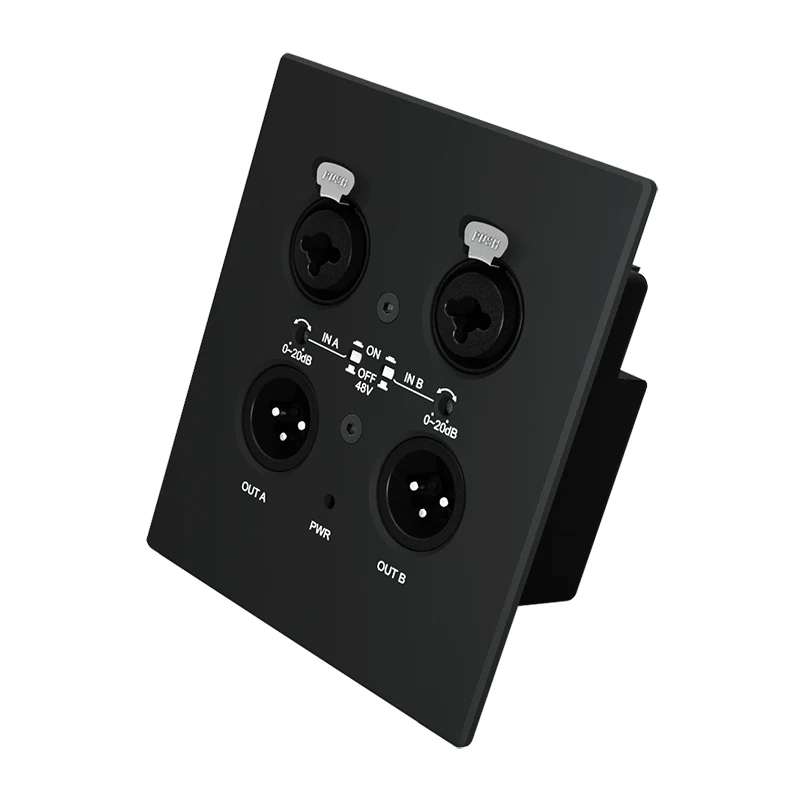

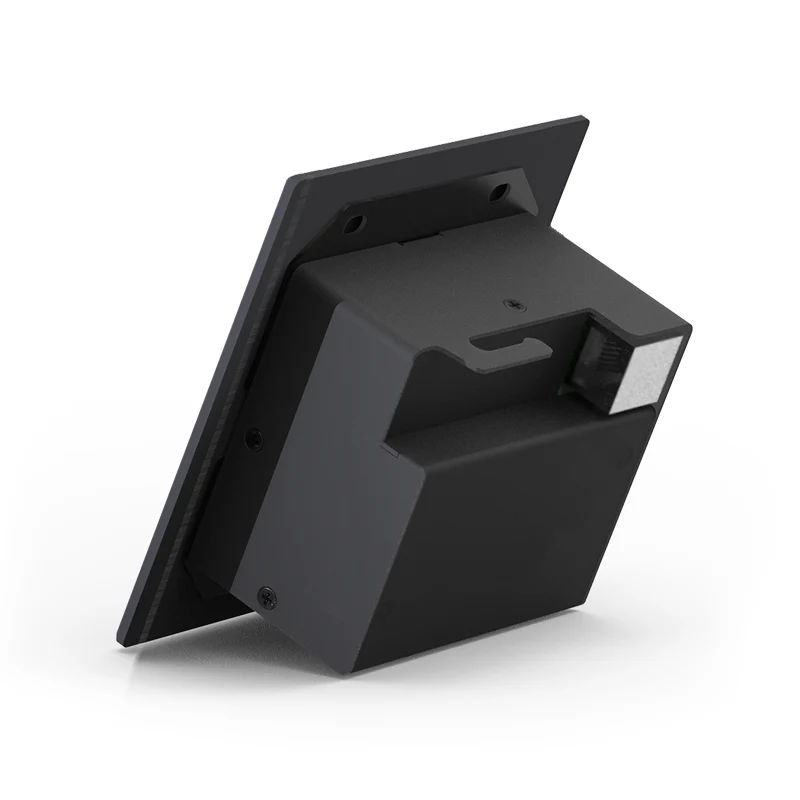

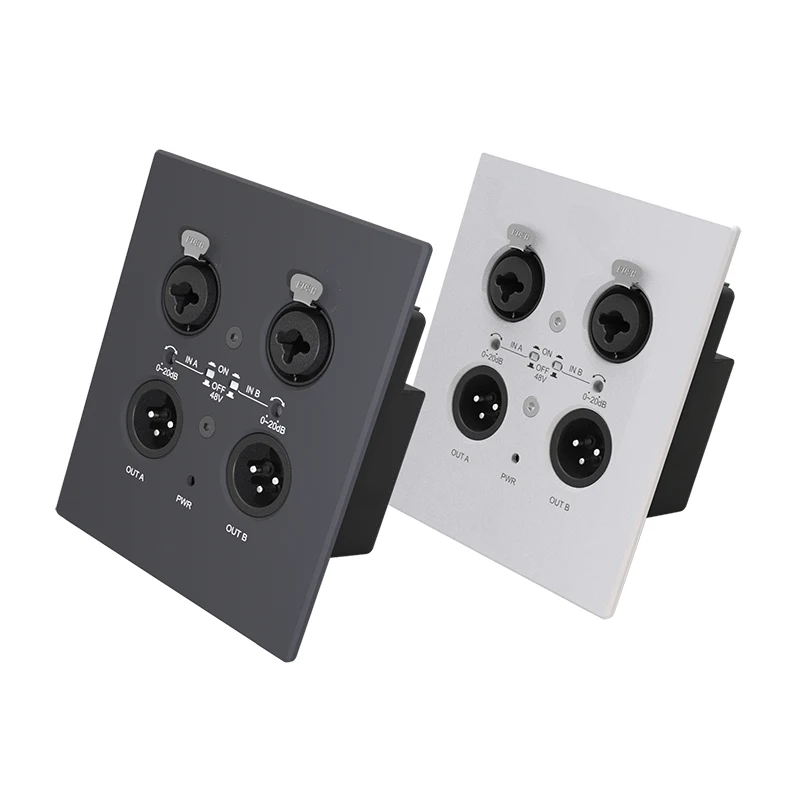

2CH Dante Wall Plate

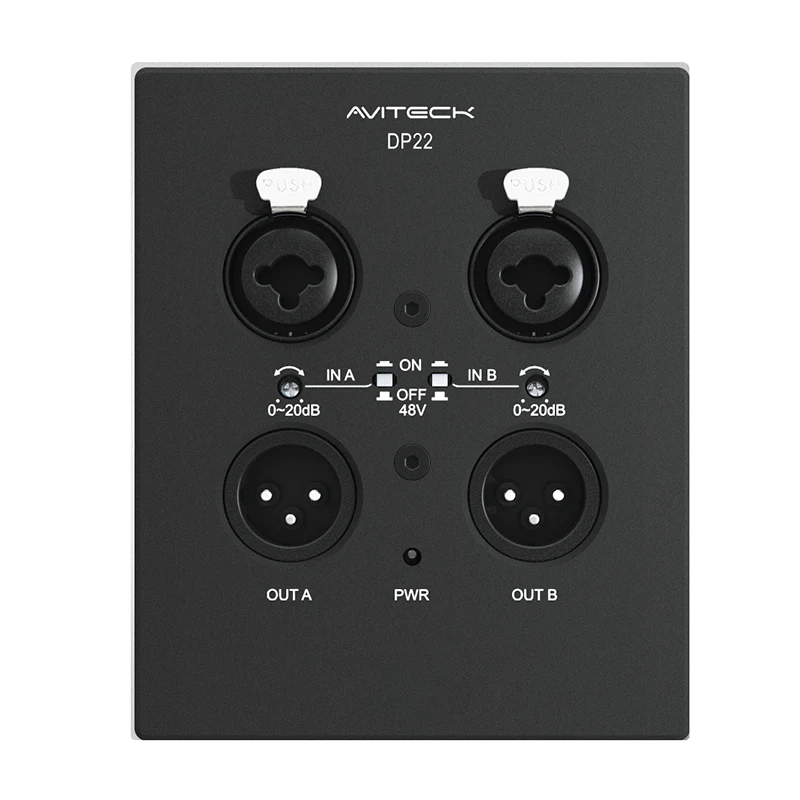

The 2CH Dante Wall Plate serves as a bridge between analog input and output signals and Dante channels, necessitating a Power over Ethernet (PoE) network power supply for operation. Specifically, the DP22 model supports the integration of two sets of balanced analog I/O signals into a Dante system via a local area network (LAN).

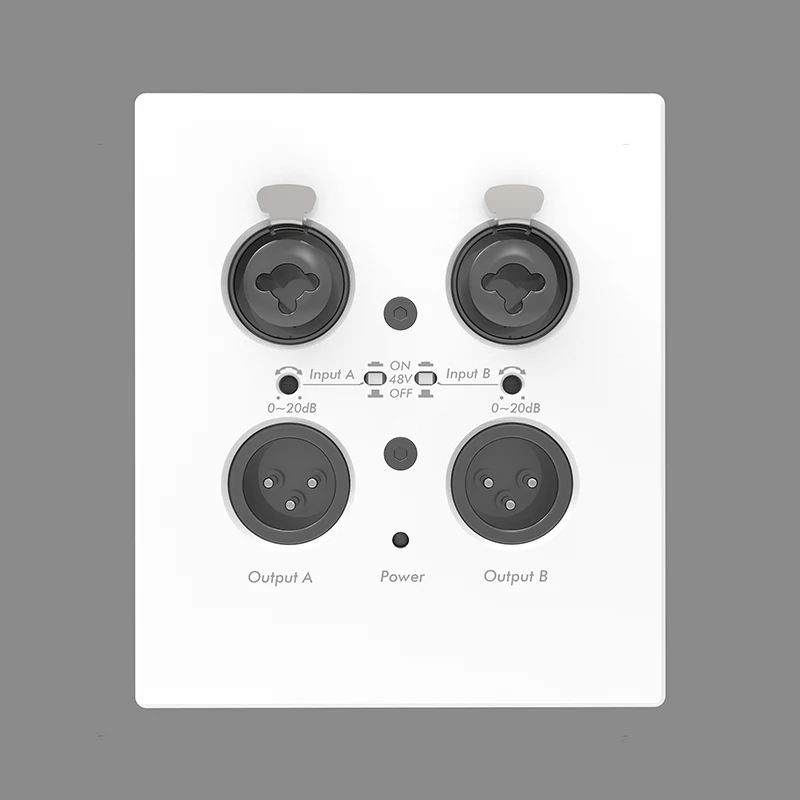

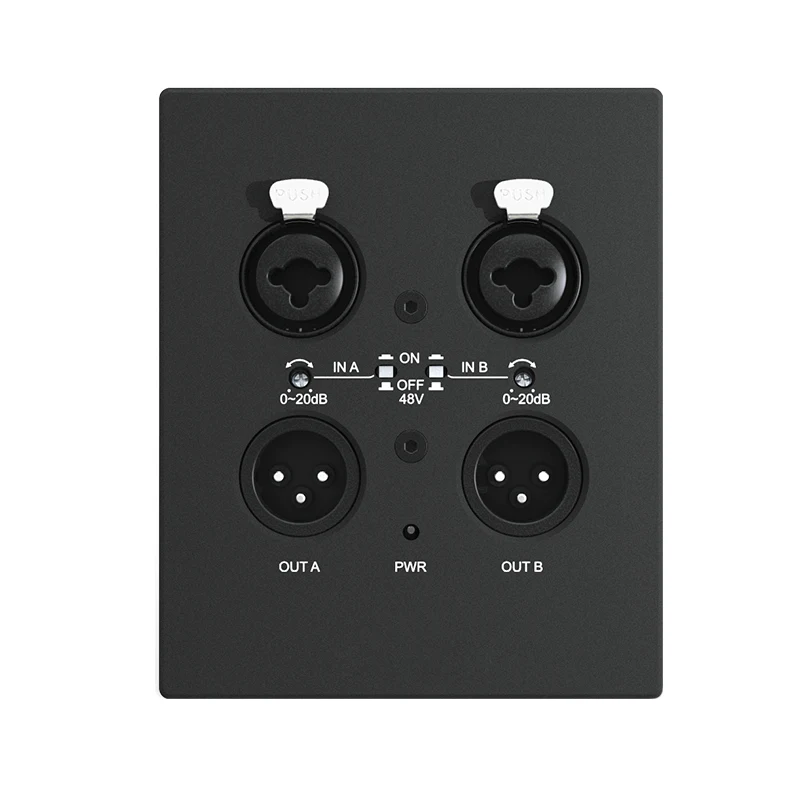

The input interface of the DP22 features a combined (two-in-one) XLR connector, which offers two key functionalities: a phantom power switch and gain adjustment for the input signal. Phantom power is essential for powering condenser microphones and other active devices in audio systems. The gain adjustment feature allows users to fine-tune the input signal's level, ensuring optimal performance and audio quality.

On the output side, the DP22 utilizes a standard 3-pin XLR connector to deliver a balanced analog signal. Balanced signals are less susceptible to interference and noise, making them ideal for long-distance audio transmission. This makes the DP22 suitable for a wide range of audio applications, including live sound, studio recording, and broadcast.

In summary, the DP22 is a versatile and reliable product that facilitates the seamless integration of analog audio signals into Dante-based audio networks. Its support for PoE, balanced I/O signals, and comprehensive input and output interfaces make it an excellent choice for professionals in the audio industry.

Product Specification

Product Main Feature

1)Dual Channel Capability:

The 2CH Dante Wall Plate supports two channels of audio transmission, allowing for the simultaneous processing of two separate audio signals. This makes it suitable for applications that require multi-channel audio, such as conferences, live performances, and studio recordings.

2)Analog to Dante Conversion:

The device provides a signal connection between analog input and output signals and Dante channels. This allows analog audio equipment to be seamlessly integrated into Dante-based audio networks, enabling digital audio distribution and processing.

3)PoE Power Supply:

The 2CH Dante Wall Plate requires a Power over Ethernet (PoE) network power supply. This eliminates the need for separate power cables, simplifying installation and reducing clutter. PoE also provides a reliable and consistent power source for the device.

4)Balanced I/O Signals:

The input and output interfaces of the 2CH Dante Wall Plate support balanced audio signals. Balanced signals are less susceptible to interference and noise, ensuring high-quality audio transmission over long distances.

5)Two-in-One XLR Input Interface:

The input interface features a combined (two-in-one) XLR connector that provides phantom power switch and gain adjustment functionalities. Phantom power is essential for powering condenser microphones and other active audio devices. The gain adjustment feature allows users to fine-tune the input signal level, ensuring optimal audio performance.

6）Standard 3-Pin XLR Output Interface:

The output interface uses a standard 3-pin XLR connector to deliver balanced analog signals. This ensures compatibility with a wide range of audio equipment and systems.

7）Compact and Durable Design:

The 2CH Dante Wall Plate is designed to be compact and durable, making it suitable for installation in a variety of environments. Its rugged construction ensures reliability and long-lasting performance.

8）Ease of Installation and Use:

The device is designed for easy installation and use. It can be mounted on a wall or rack, and its intuitive interface makes it easy to configure and operate.

Product Application

The 2CH Dante Wall Plate is a specialized audio interface device that offers a range of features making it suitable for various audio applications. Here are some typical usage scenarios for the 2CH Dante Wall Plate:

1)Conference Rooms:

In conference rooms, the 2CH Dante Wall Plate can be used to connect analog microphones and other audio equipment to a Dante-based audio network. This allows for seamless audio distribution and processing, ensuring clear and professional-quality sound for meetings and presentations.

2)Live Performances:

For live performances, the device can be used to integrate analog audio signals from instruments and microphones into a Dante network. This enables digital audio processing and distribution, providing high-quality sound reinforcement and monitoring for performers and audiences.

3)Studio Recordings:

In recording studios, the 2CH Dante Wall Plate can be used to connect analog audio sources to a Dante-based digital audio workstation (DAW). This allows for digital recording, editing, and mixing of analog audio signals, providing flexibility and high-quality audio processing.

4)Broadcast and Production Studios:

The device can be used in broadcast and production studios to connect analog audio equipment to Dante networks. This enables digital audio distribution and processing for radio and television broadcasts, as well as audio post-production for film and television.

5)Educational Facilities:

In educational facilities, the 2CH Dante Wall Plate can be used to connect audio equipment in classrooms, lecture halls, and performance spaces. This allows for seamless audio distribution and processing, enhancing the learning experience for students and teachers.

6）Houses of Worship:

The device can be used in houses of worship to connect analog audio signals from microphones, organs, and other instruments to a Dante network. This enables digital audio processing and distribution, providing clear and powerful sound reinforcement for religious services and events.

7）Corporate and Government Facilities:

In corporate and government facilities, the 2CH Dante Wall Plate can be used to connect audio equipment in meeting rooms, conference centers, and other spaces. This allows for seamless audio distribution and processing, ensuring clear communication and collaboration among staff and visitors.
